Trunk / Liftgate Lock Cylinder: Service and Repair

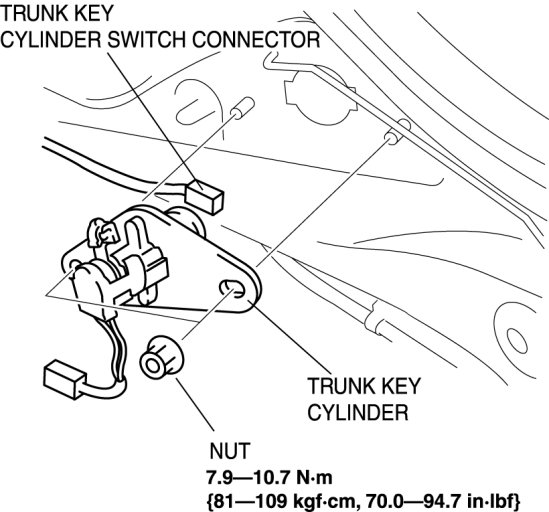

TRUNK KEY CYLINDER REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
Removal and Replacement 2.
Remove the trunk end trim.
Trunk End Trim Removal/Installation 3.
Detach the rod.
4.
Remove the nuts, then remove the trunk key cylinder.
5.
Install in the reverse order of removal.
