Seat Temperature Switch: Service and Repair




SEAT WARMER SWITCH REMOVAL/INSTALLATION

1. Turn the ignition switch to LOCK position.

2. Remove the battery cover.

3. Disconnect the negative battery cable. Removal and Replacement

4. Remove the console. Console Removal/Installation

5. Remove the side wall. Side Wall Removal/Installation

6. Remove the console panel. Console Panel Removal/Installation

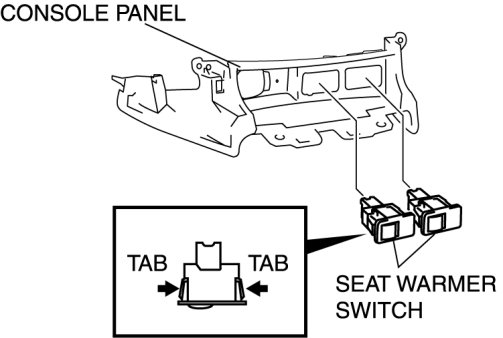

7. Squeeze the tabs of seat warmer switch in the direction of arrow shown in the figure, and pull it outward to remove it.






8. Install in the reverse order of removal.
