Air Register: Service and Repair




VENTILATOR GRILLE REMOVAL/INSTALLATION

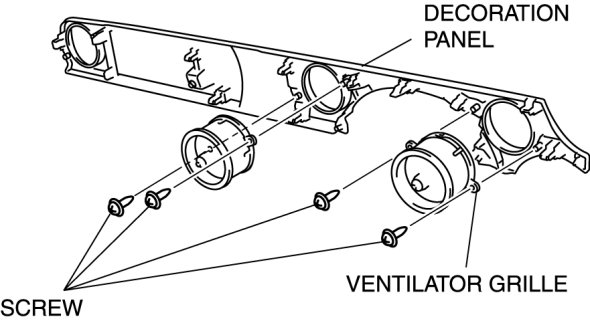

Driver's Side

1. Remove the decoration panel. (driver's side) Decoration Panel Removal/Installation

2. Remove the screws.






3. Remove the ventilator grille.

4. Install in the reverse order of removal.

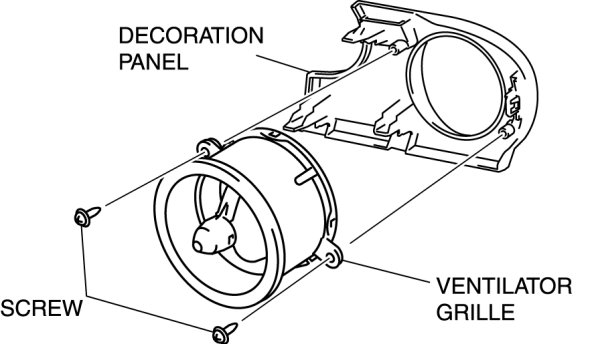

Passenger's Side

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the following parts:
a. Console Console Removal/Installation

b. Side wall Side Wall Removal/Installation

c. Center panel unit Center Panel Unit Removal/Installation

d. Glove compartment Service and Repair

e. Decoration panel (passenger's side) Decoration Panel Removal/Installation

4. Remove the screws.






5. Remove the ventilator grille.

6. Install in the reverse order of removal.

Center

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the following parts:
a. Console Console Removal/Installation

b. Side wall Side Wall Removal/Installation

c. Center panel unit Center Panel Unit Removal/Installation

d. Glove compartment Service and Repair

e. Decoration panel (passenger's side) Decoration Panel Removal/Installation

4. Remove the screws.






5. Remove the ventilator grille.

6. Install in the reverse order of removal.
