Component Tests and General Diagnostics




DRL CONTROL MODULE INSPECTION

1. Remove the DRL control module with the connector connected. DRL Control Module Removal/Installation

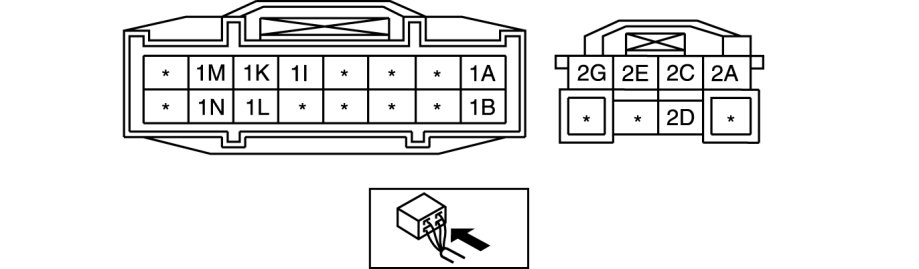

2. Measure the voltage at each terminal is as indicated in the Terminal Voltage Tables.

- If the voltage or continuity is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item (s)".

- If the system does not work properly even though the parts or related wiring harnesses do not have any malfunction, replace the DRL control module.

Terminal Voltage Table (Reference)

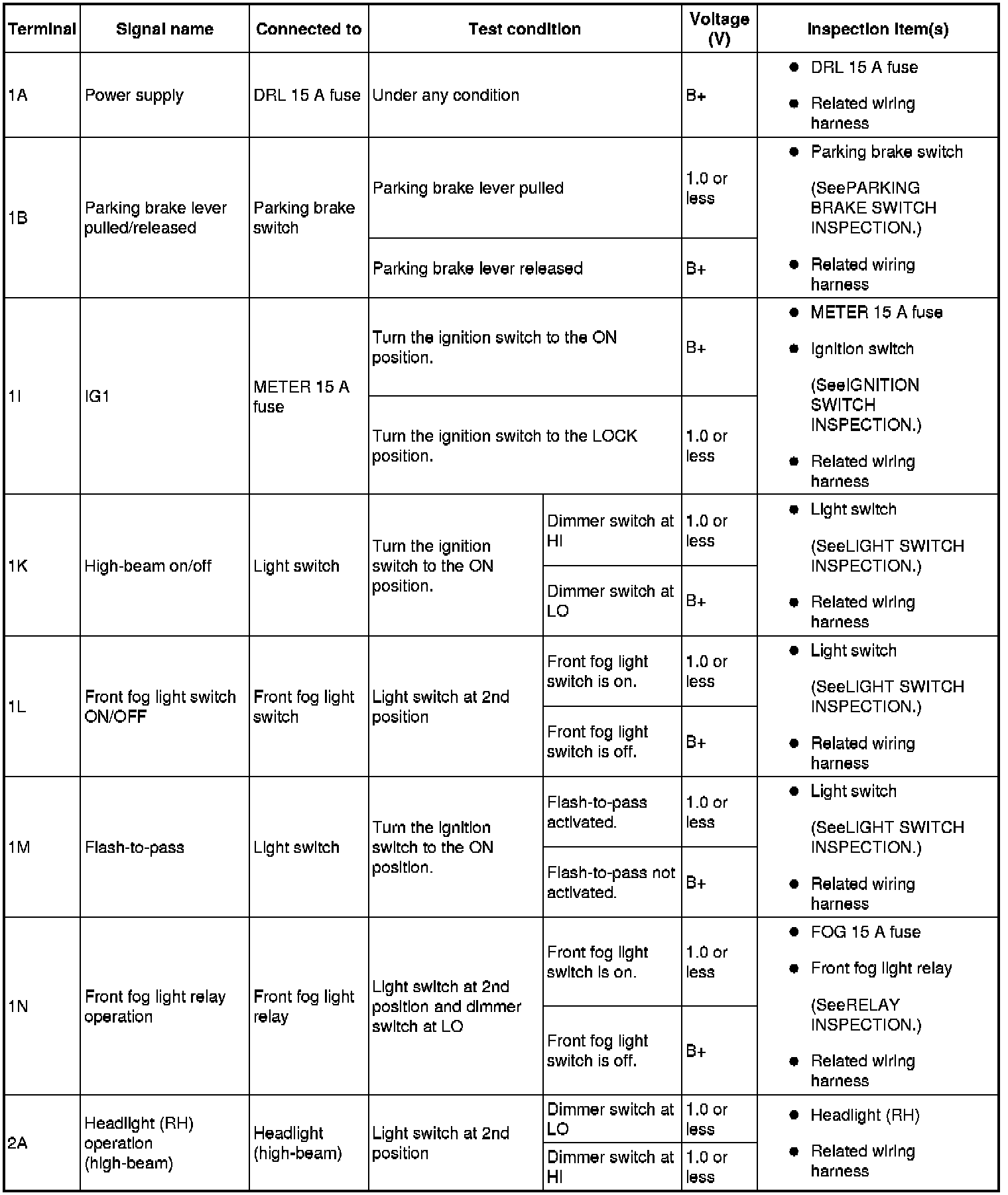

Terminal Voltage Table (Reference) (Part 1):

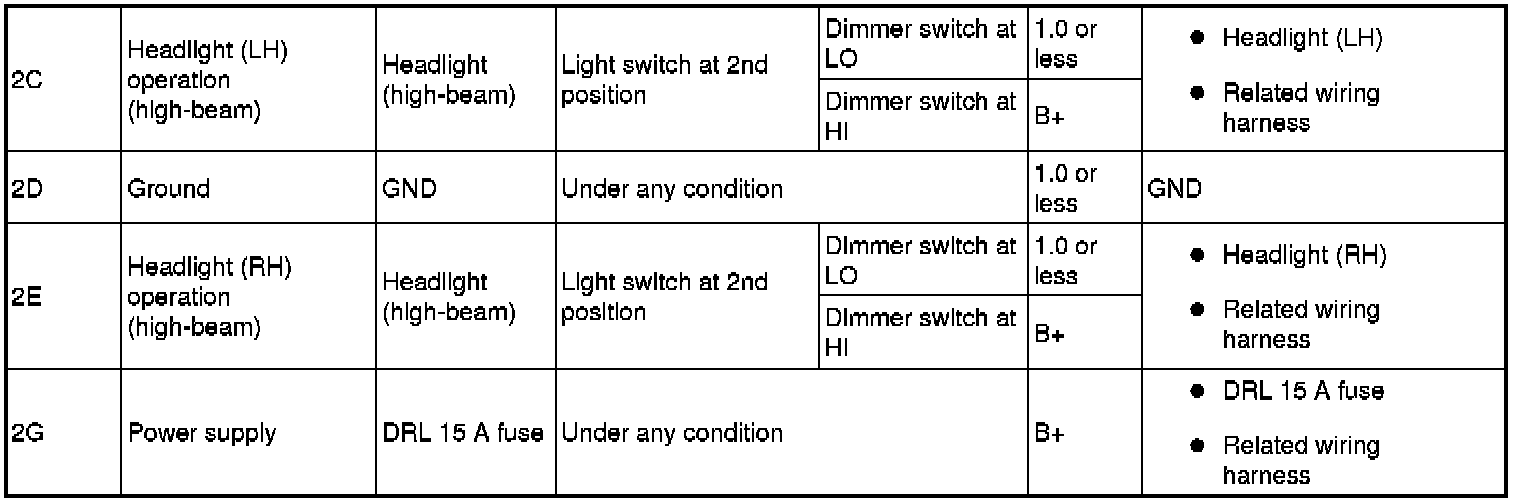

Terminal Voltage Table (Reference) (Part 2):
