Map Light: Testing and Inspection

MAP LIGHT INSPECTION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the map light. Service and Repair

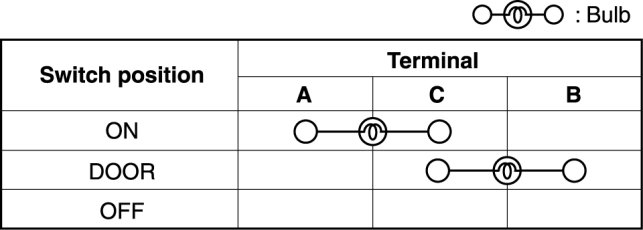

4. Verify that the continuity between the map light terminals is as indicated in the table.

- If not as indicated in the table, replace the map light.
