Fluid - A/T: Testing and Inspection
AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION [SJ6A-EL]Automatic Transmission Fluid (ATF) Condition Inspection 1.
Inspect the ATF for the following to determine whether the transmission should be disassembled.
-
The ATF is muddy.
-
The ATF smells strange or unusual.

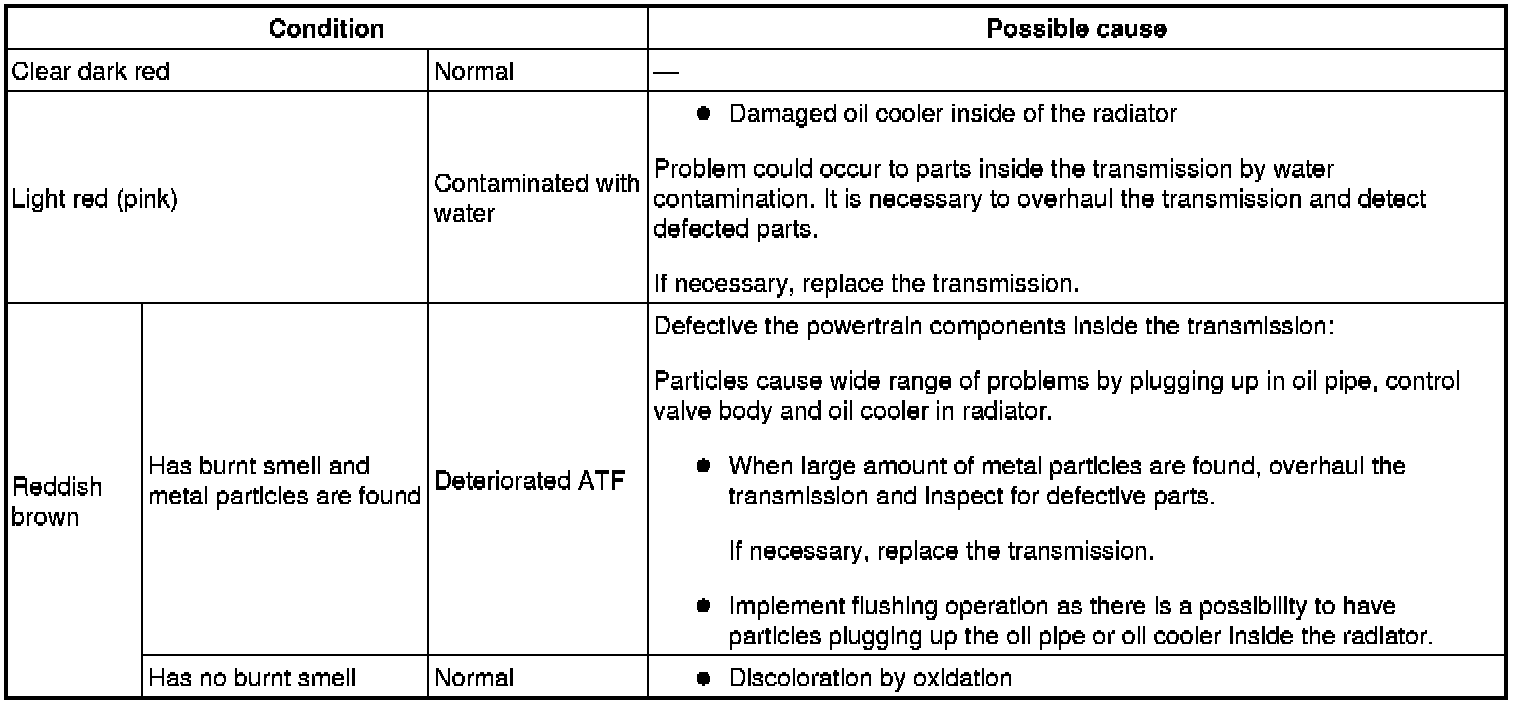

ATF Condition
