Auxiliary Power Outlet: Service and Repair




ACCESSORY SOCKET REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the console. Console Removal/Installation

4. Remove the side wall. Side Wall Removal/Installation

5. Remove the console panel. Console Panel Removal/Installation

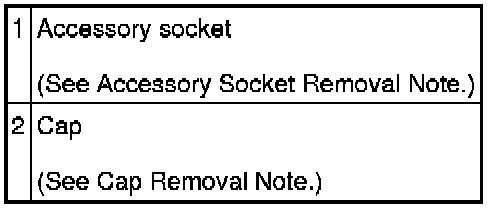

6. Remove in the order indicated in the table.










7. Install in the reverse order of removal.

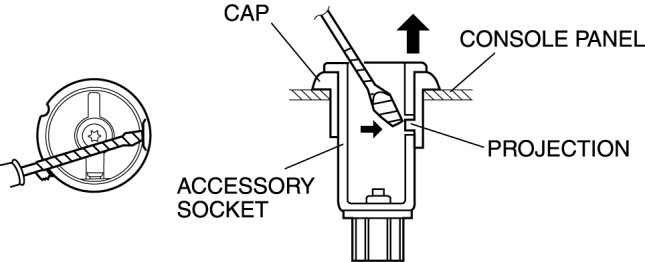

Accessory Socket Removal Note

1. While pressing a tape-wrapped fastener remover against the cap projection, pull the accessory socket outward.

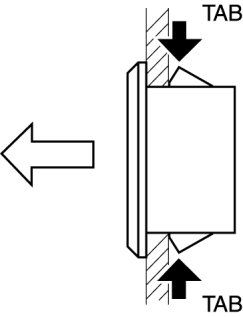

Cap Removal Note

1. While pressing the tabs, pull the cap outwards.
