Air Fuel Ratio (A/F) Sensor Removal/Installation
AIR FUEL RATIO (A/F) SENSOR REMOVAL/INSTALLATION [LF] 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
Removal and Replacement 3.

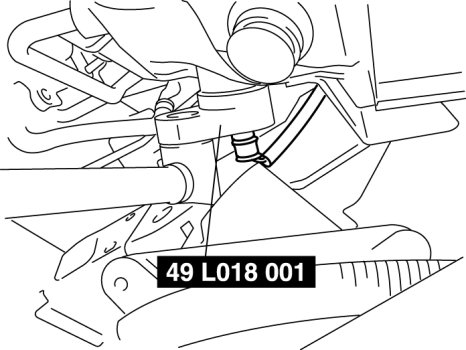

Install the
SST to the A/F sensor.
4.
Remove the A/F sensor.
5.
Install in the reverse order of removal.
-
A/F sensor tightening torque
-
29-49 Nm {3.0-4.9 kgf-m, 22-35 ft-lbf}
