Component Tests and General Diagnostics




POWER WINDOW MAIN SWITCH INSPECTION

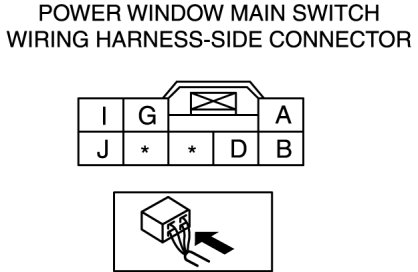

Without Exterior Open function (Without Power Retractable Hardtop)

1. Measure the voltage at each terminal.

- If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "Inspection item (s)" and related wiring harnesses.
- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.

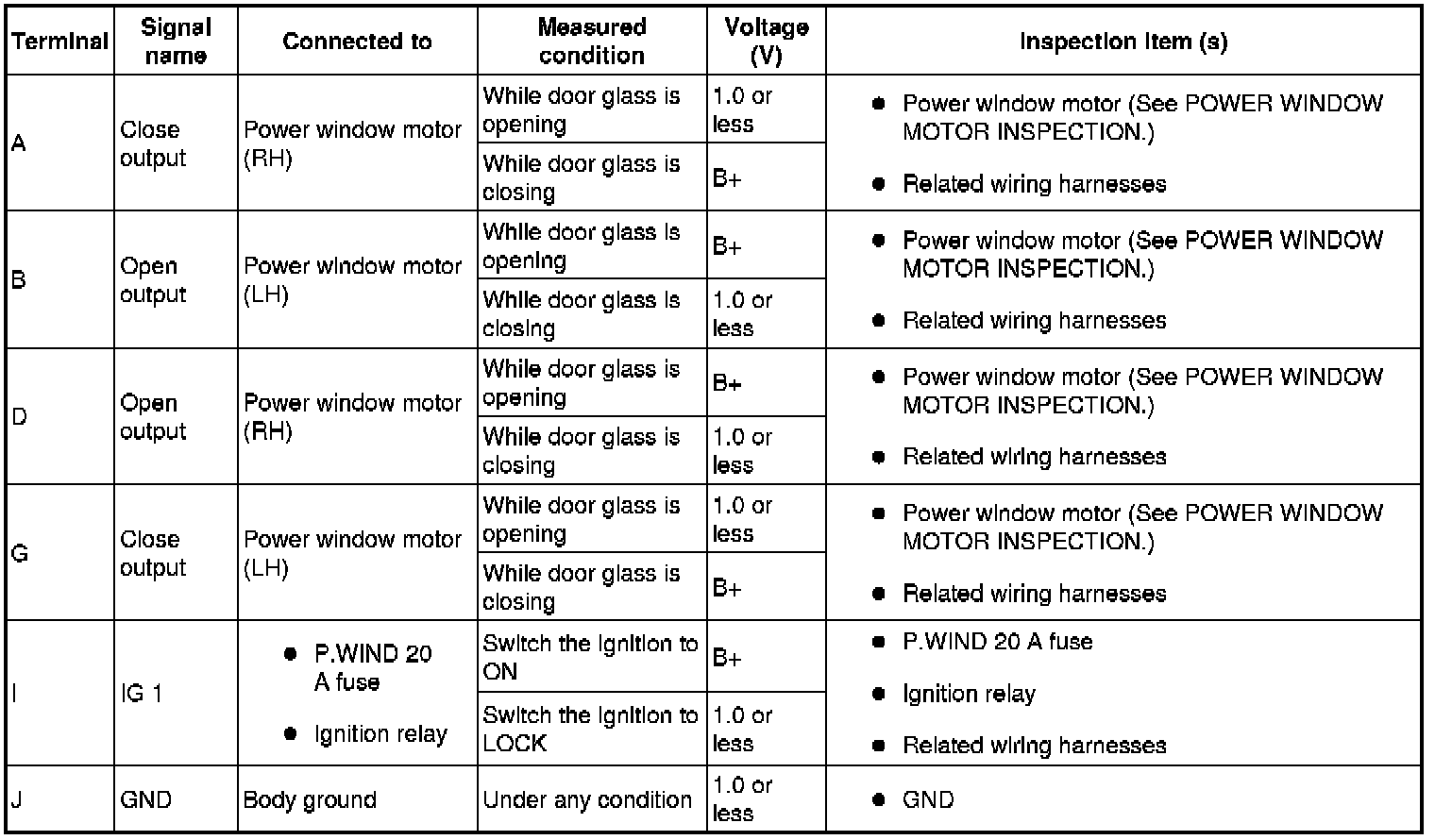

Terminal Voltage Table:

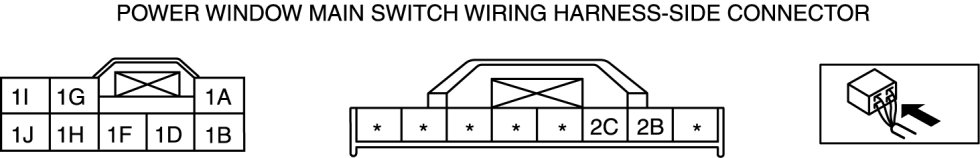

With Exterior Open function (With Power Retractable Hardtop)

1. Measure the voltage at each terminal.

- If the voltage is not as specified in the Terminal Voltage Table, inspect the parts under "inspection item(s)" and related wiring harnesses.
- If the system does not work properly even though the inspection items or related wiring harnesses do not have any malfunction, replace the power window main switch.

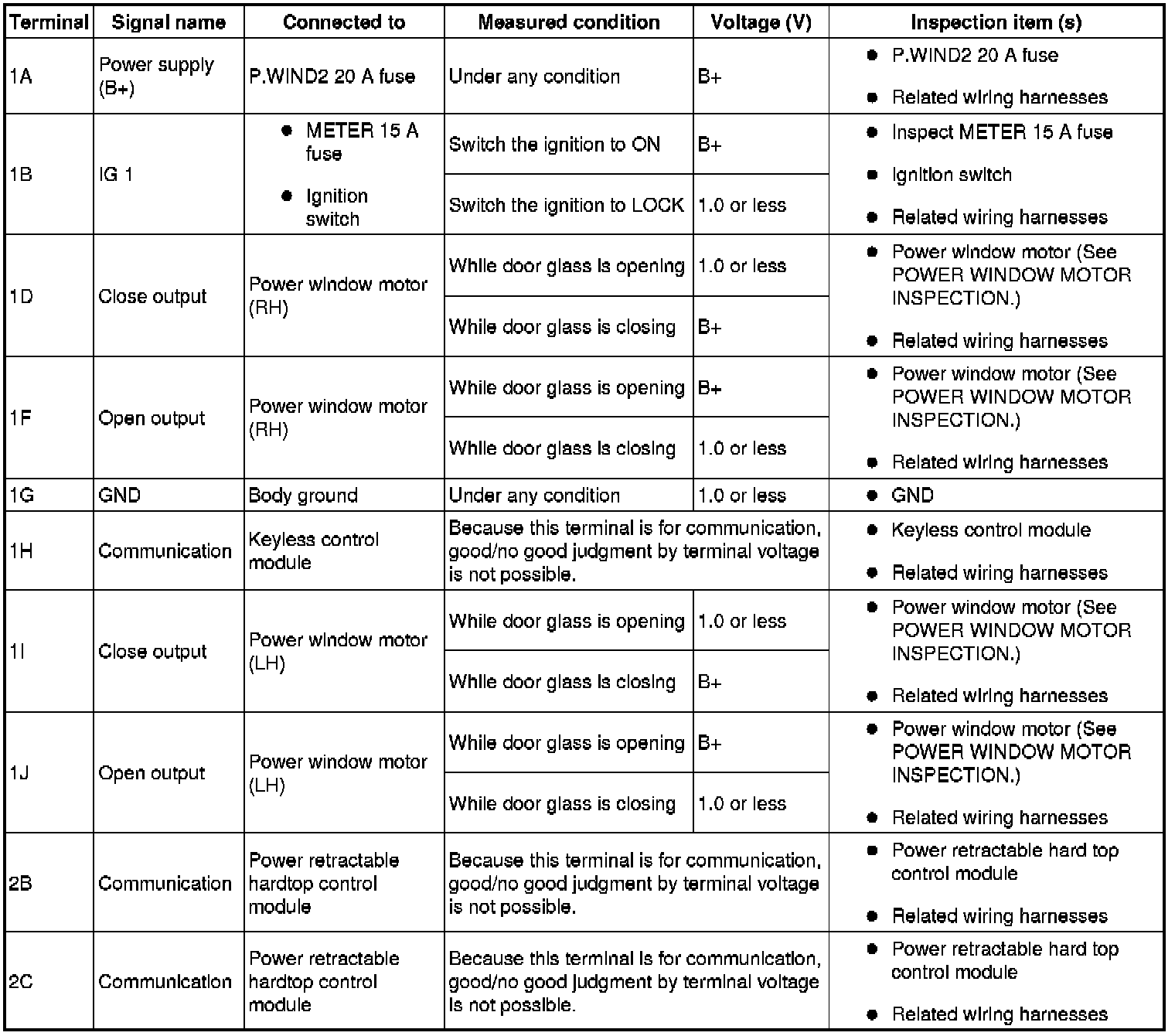

Terminal Voltage Table:
