Overhaul

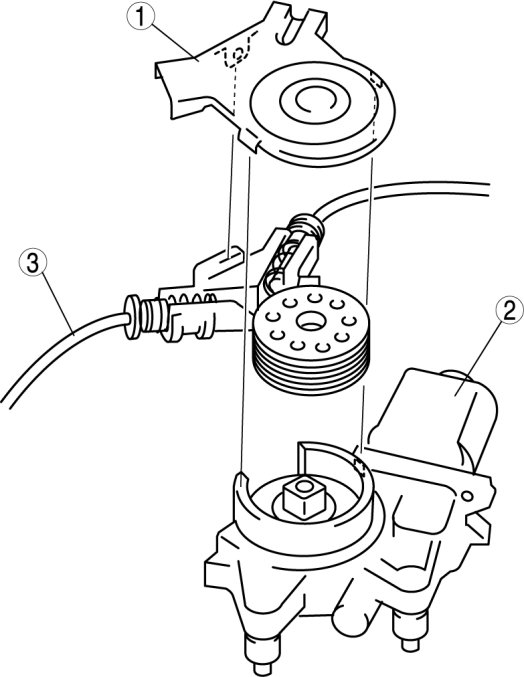

POWER WINDOW REGULATOR DISASSEMBLY/ASSEMBLY 1.

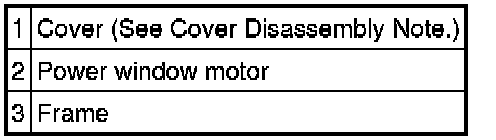

Remove in the order indicated in the table.
2.
Assemble in the reverse order of disassembly.
NOTE: -
When installing the power window motor, be careful that the cable does not become unwounded from the drum.

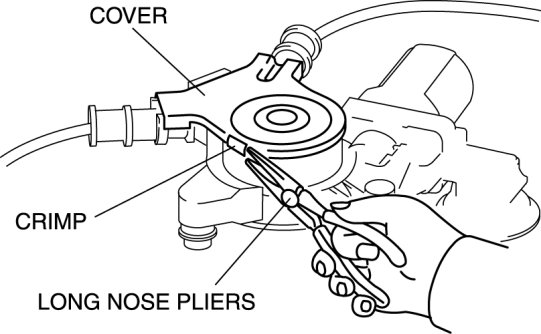

Cover Disassembly Note 1.
Carefully bend away the crimp of the cover using long nose pliers.
