Coolant Line/Hose: Service and Repair

-

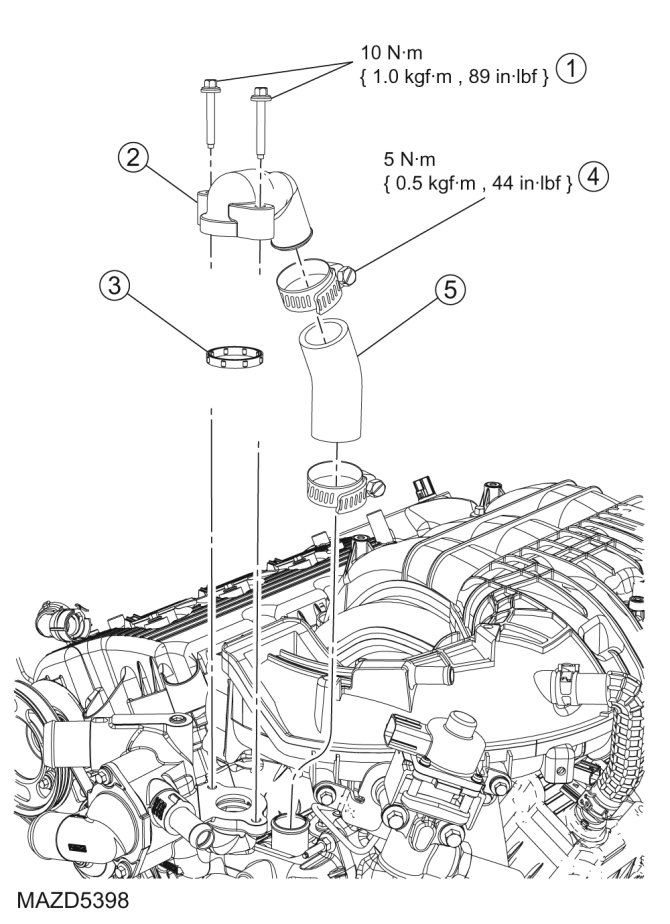

COOLANT INLET PIPE REMOVAL/INSTALLATION - 3.0L









1. Drain the cooling system. See Removal and Replacement.

2. Remove the Throttle Body (TB). See - Service and Repair.

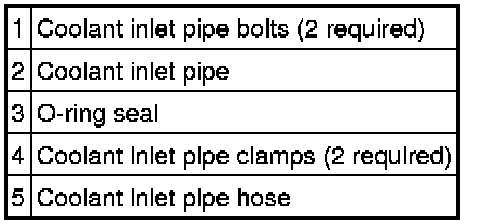

3. Remove the 2 coolant inlet pipe housing bolts.

- To install, tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.

4. Loosen the clamp and disconnect the coolant inlet pipe from the coolant inlet pipe hose.

5. Remove and inspect the O-ring seal. Install a new seal if necessary.

6. To install, reverse the removal procedure.

- Lubricate the O-ring seal with clean engine coolant.

7. Fill and bleed the cooling system. See Removal and Replacement.
