Exhaust Gas Recirculation: Diagrams



-

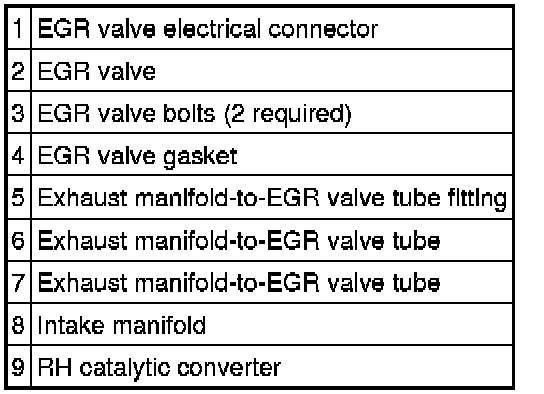

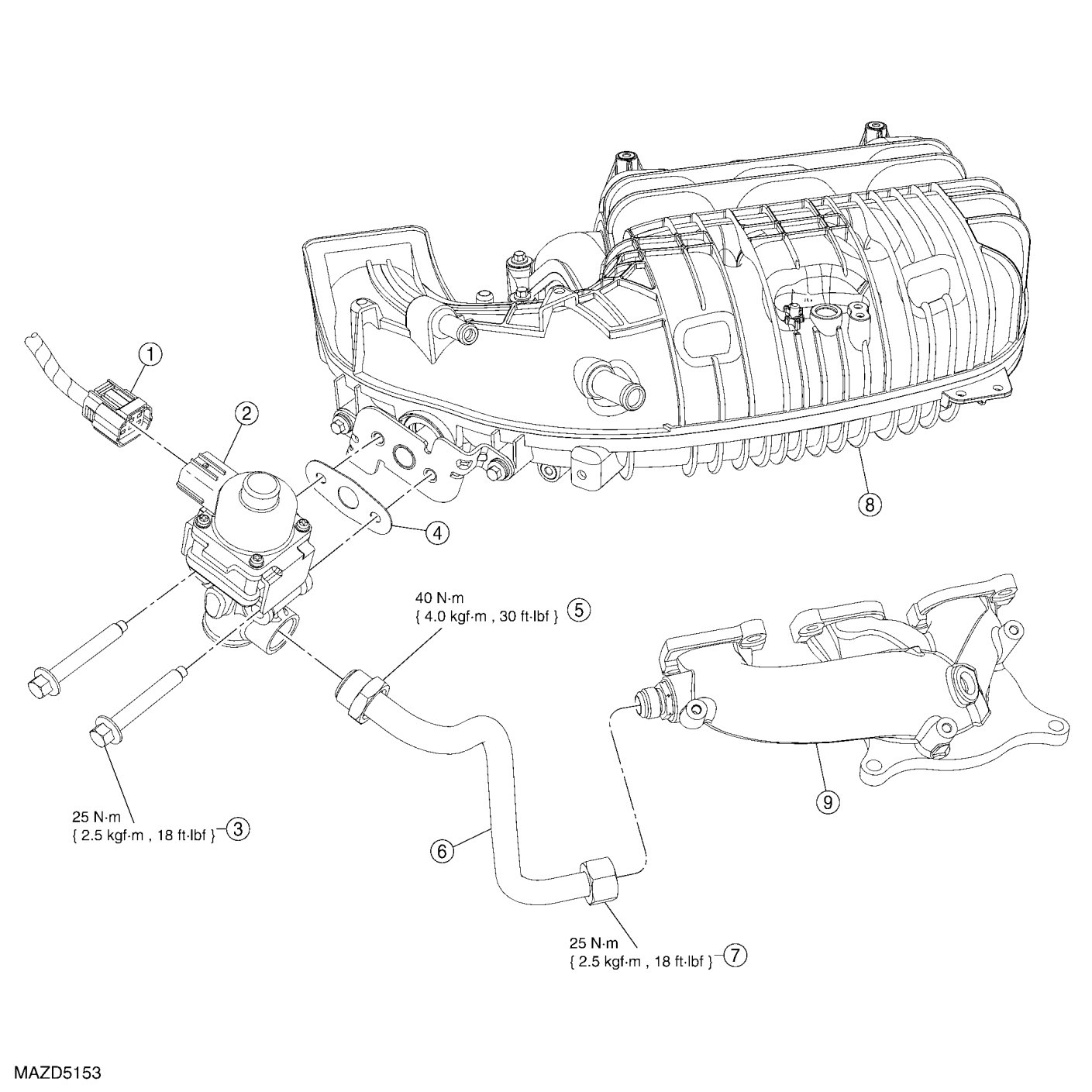

EXHAUST GAS RECIRCULATION (EGR) SYSTEM EXPLODED VIEW - 3.0L









1. For additional information, see the procedures.
