Crankshaft Position Sensor: Service and Repair

-

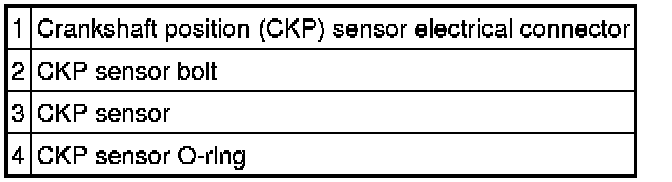

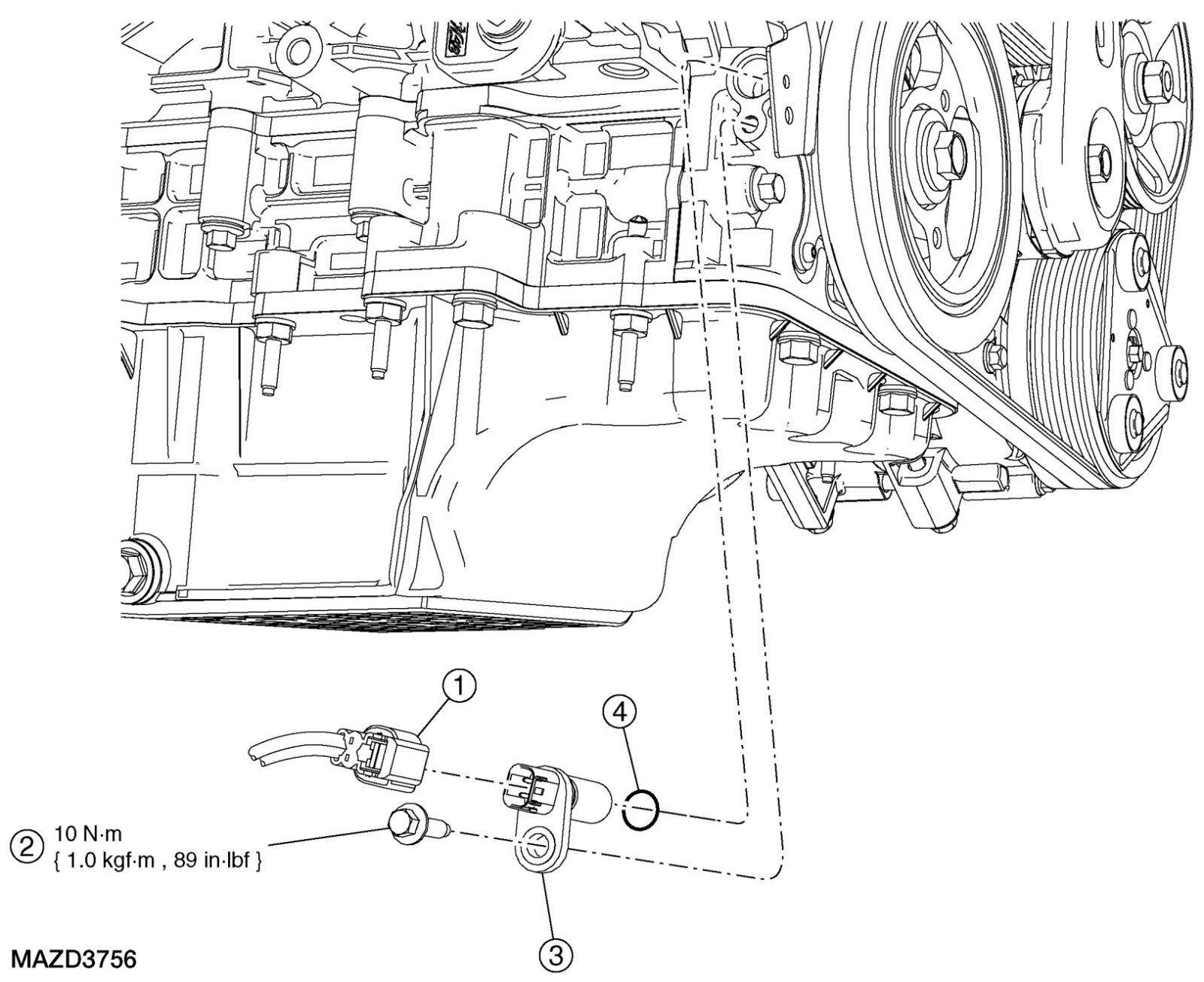

CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION - 3.0L









1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

2. Disconnect the crankshaft position (CKP) sensor electrical connector.

3. Remove the bolt and the CKP.

- To install, tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.
- Inspect the O-ring seal and install new as necessary.

4. To install, reverse the removal procedure.

NOTE:Lubricate the CKP O-ring seal with clean engine oil.
