Bumper: Locations

BUMPERS

The bumper system consists of the following components:

- Front bumper

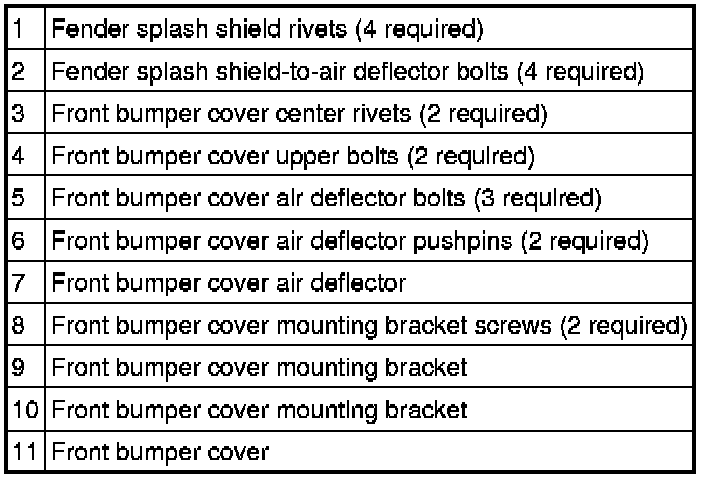

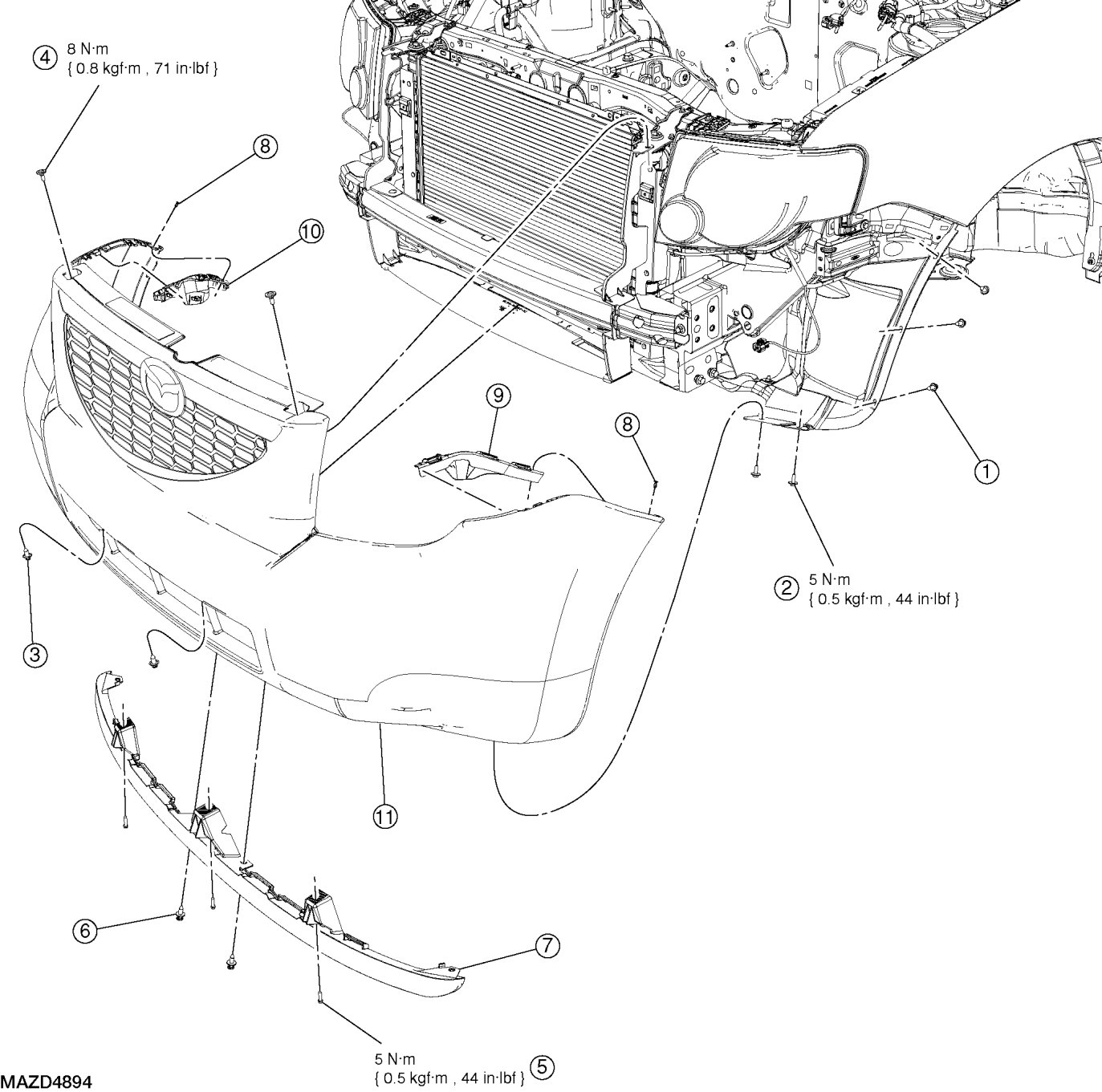

- Front bumper cover
- Rear bumper
- Rear bumper cover

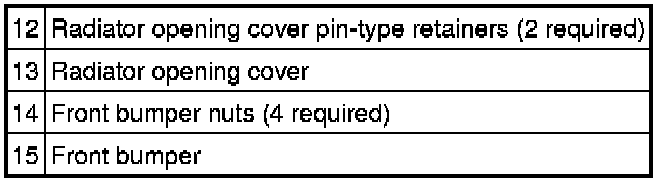

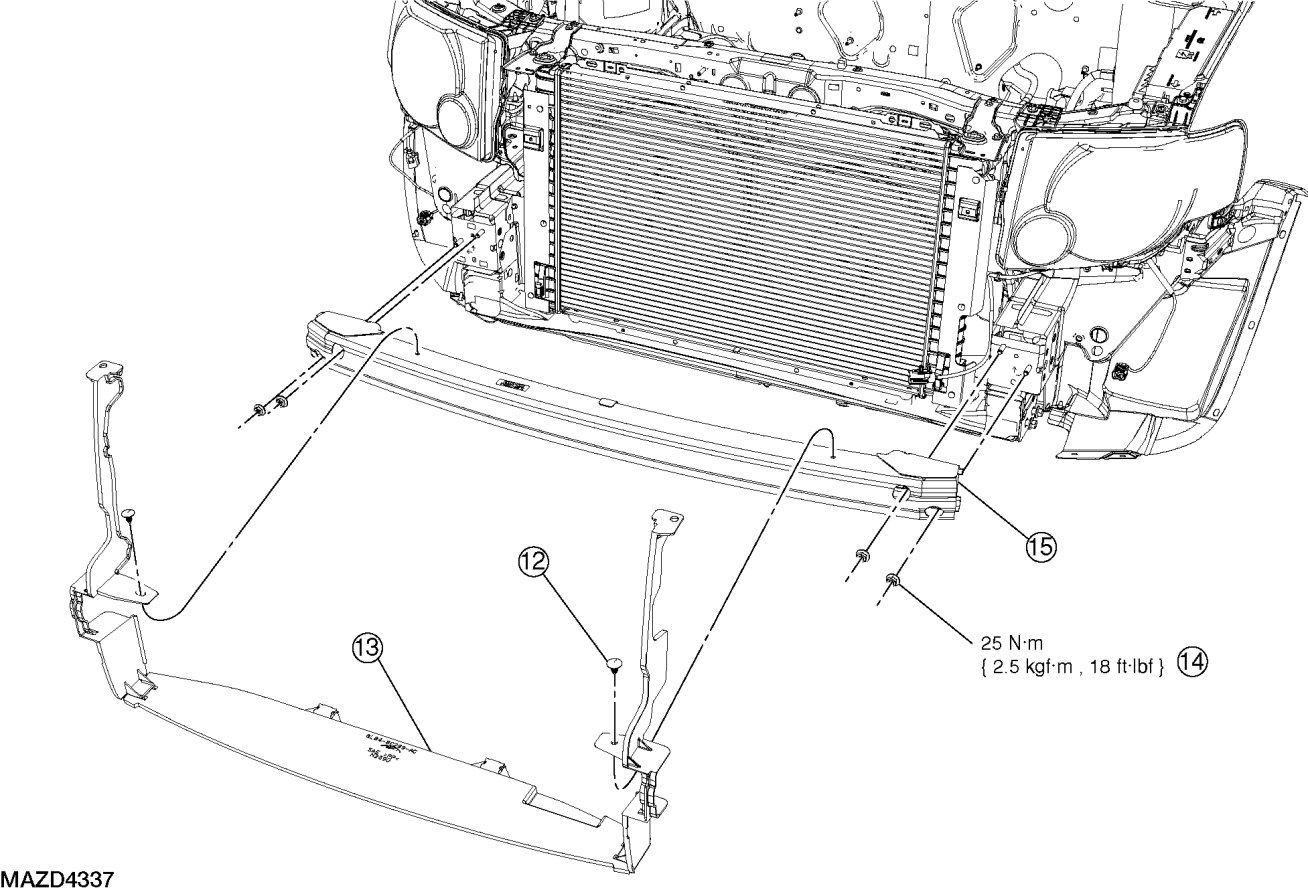

Front Bumper

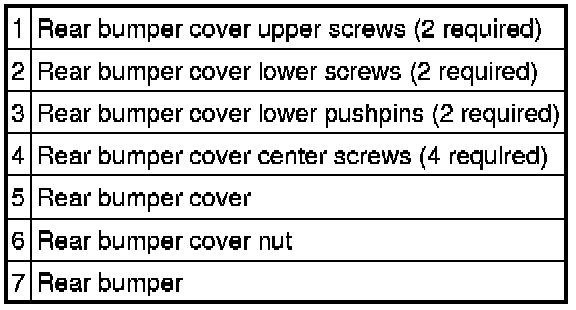

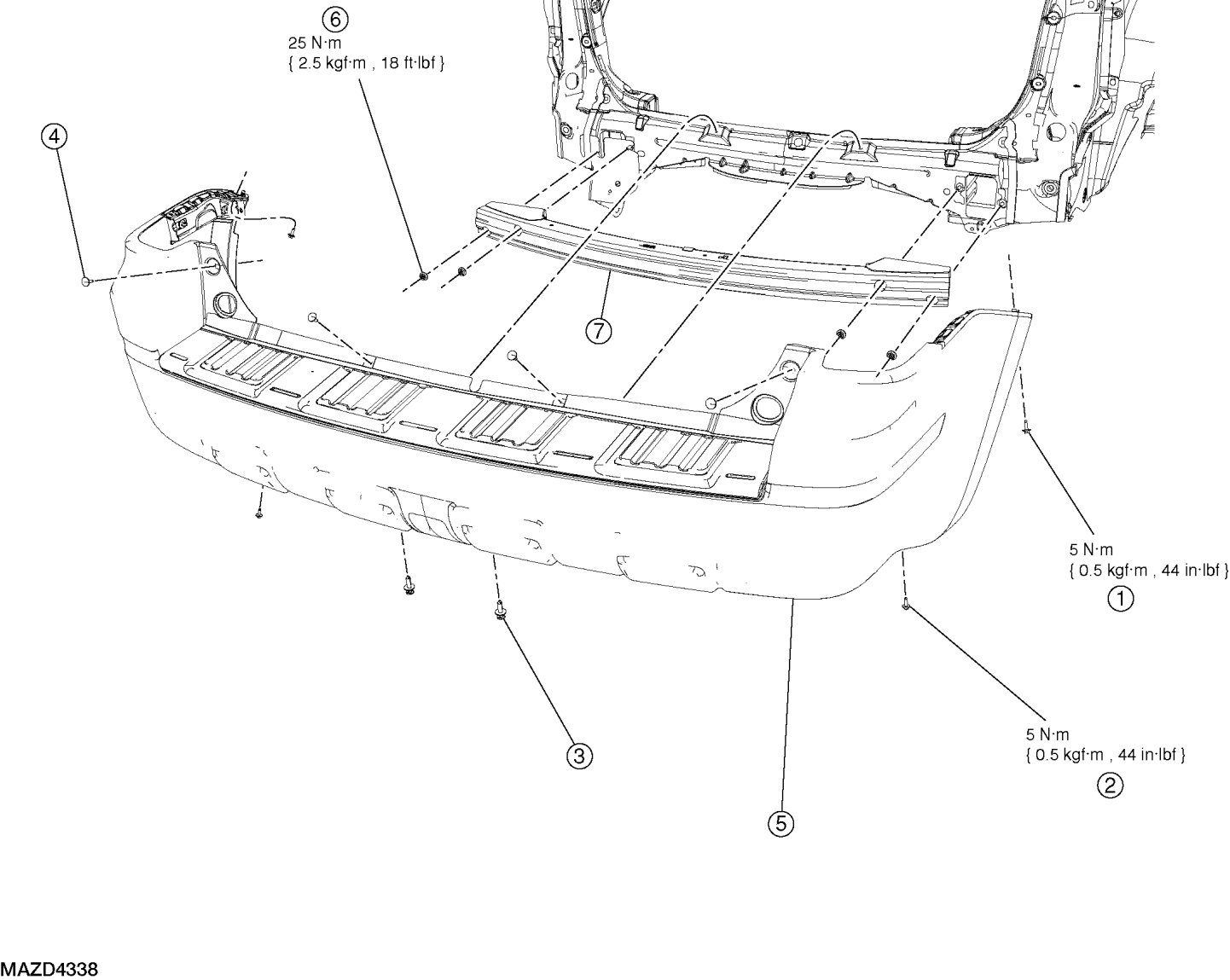

Rear Bumper Cover Without Trailer Hitch

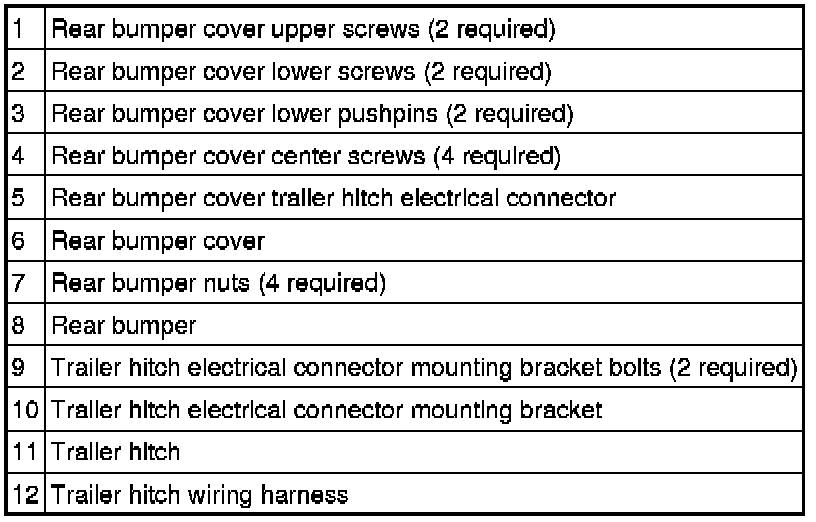

Rear Bumper Cover With Trailer Hitch










1. For additional information, see the procedures.
