Connector End Views - Power Door Locks
Connector End Views - Power Door Locks
-

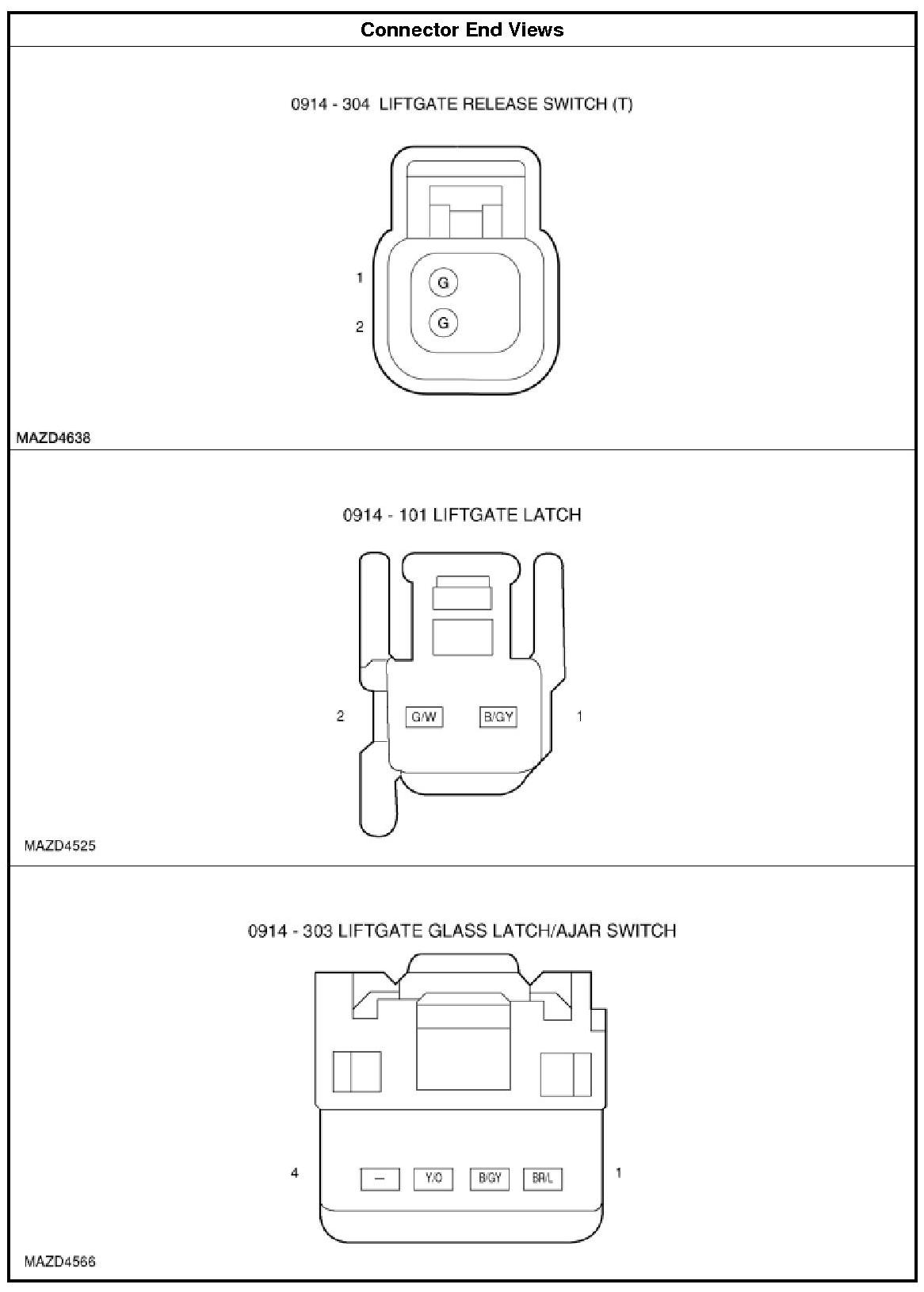

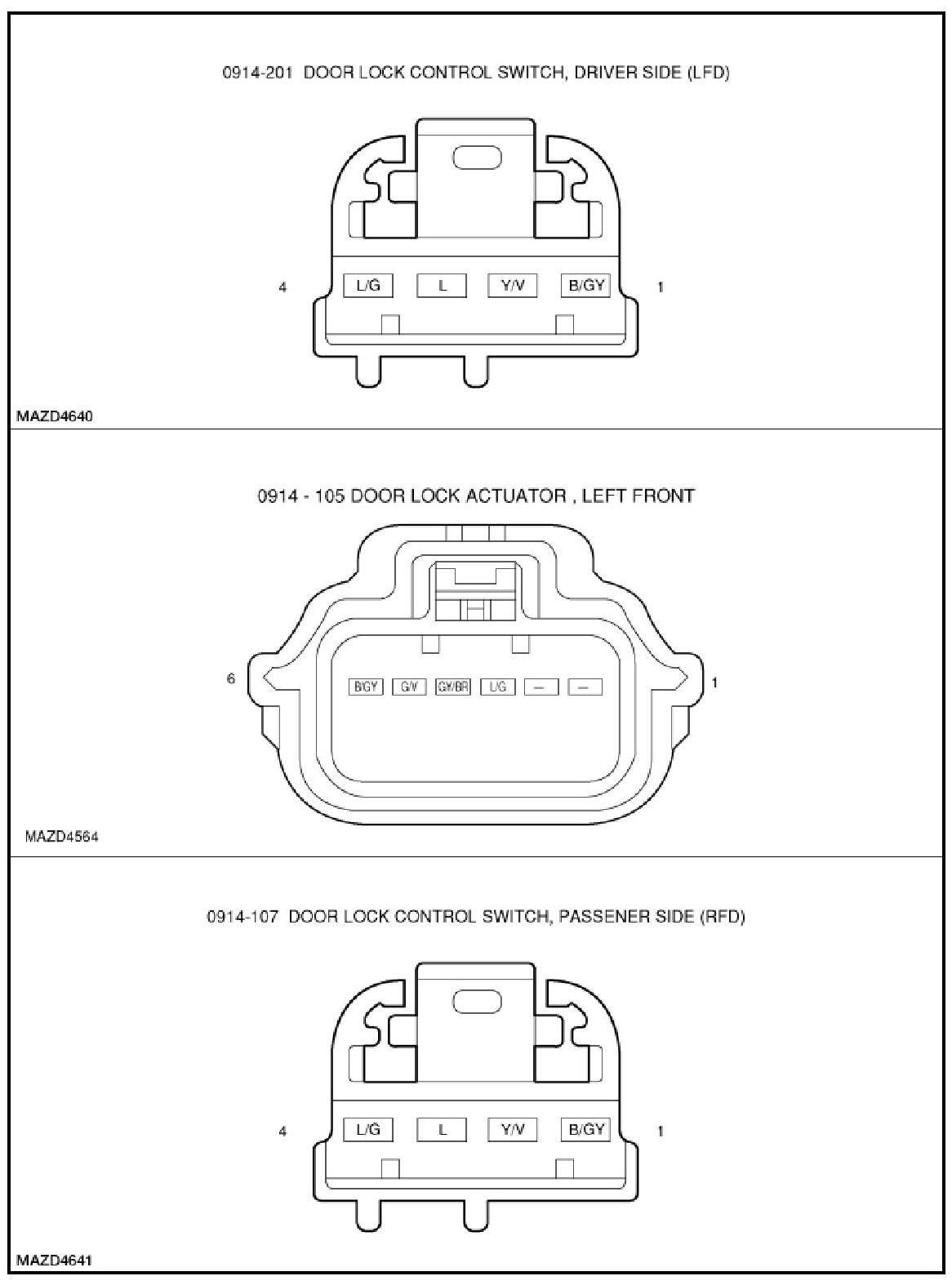

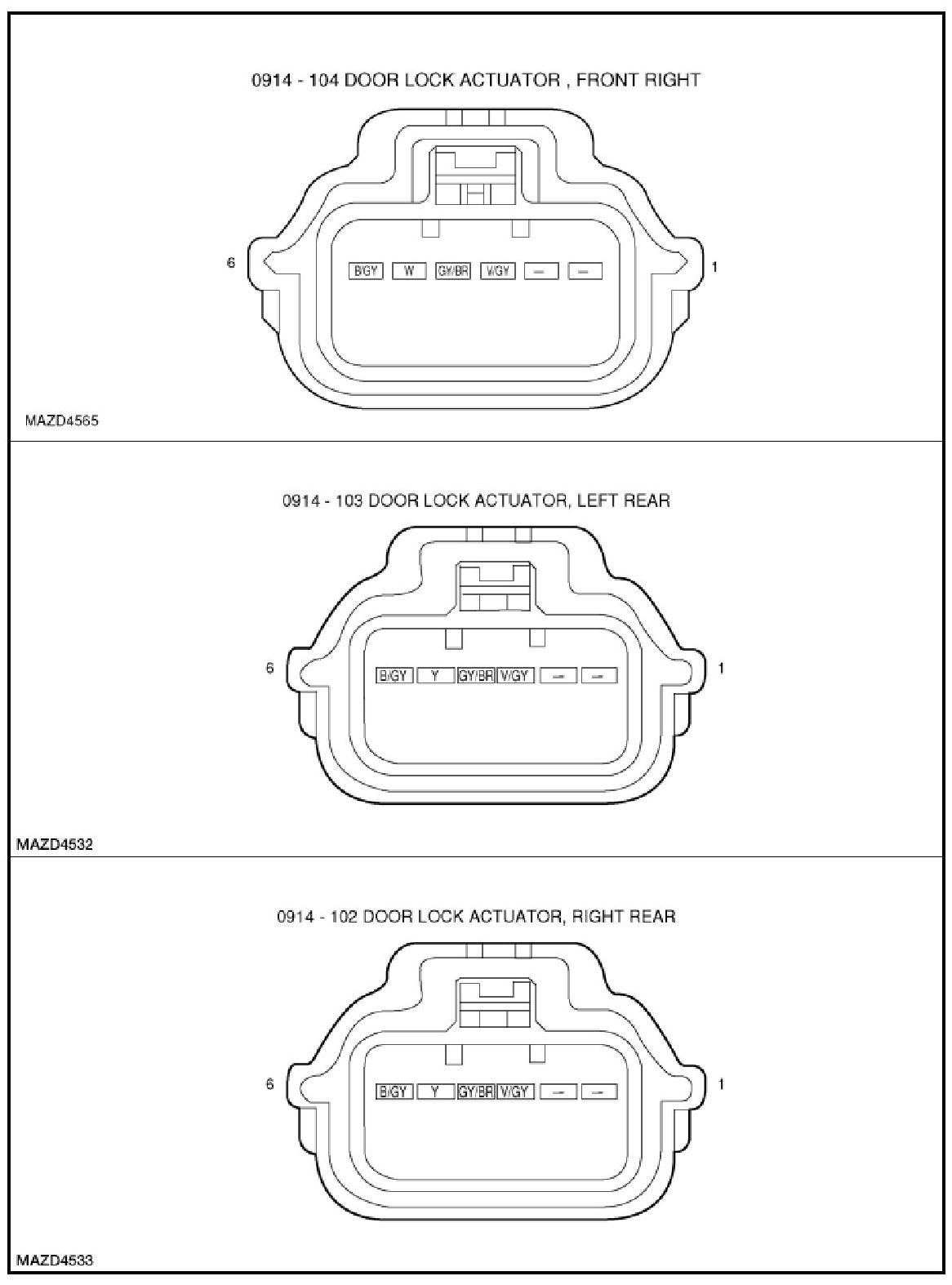

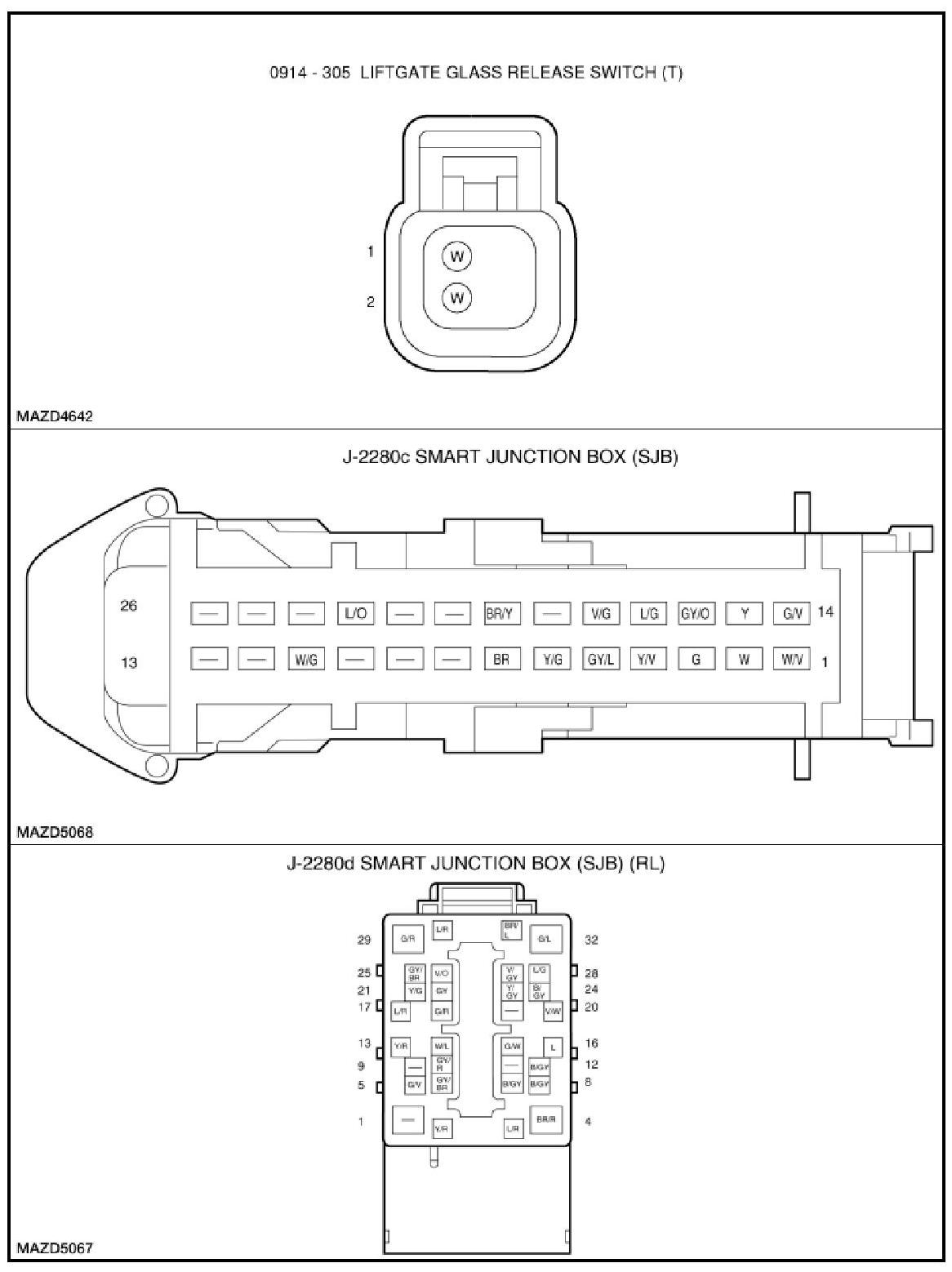

CONNECTOR END VIEWS - POWER DOOR LOCKS
