Symptom Related Diagnostic Procedures

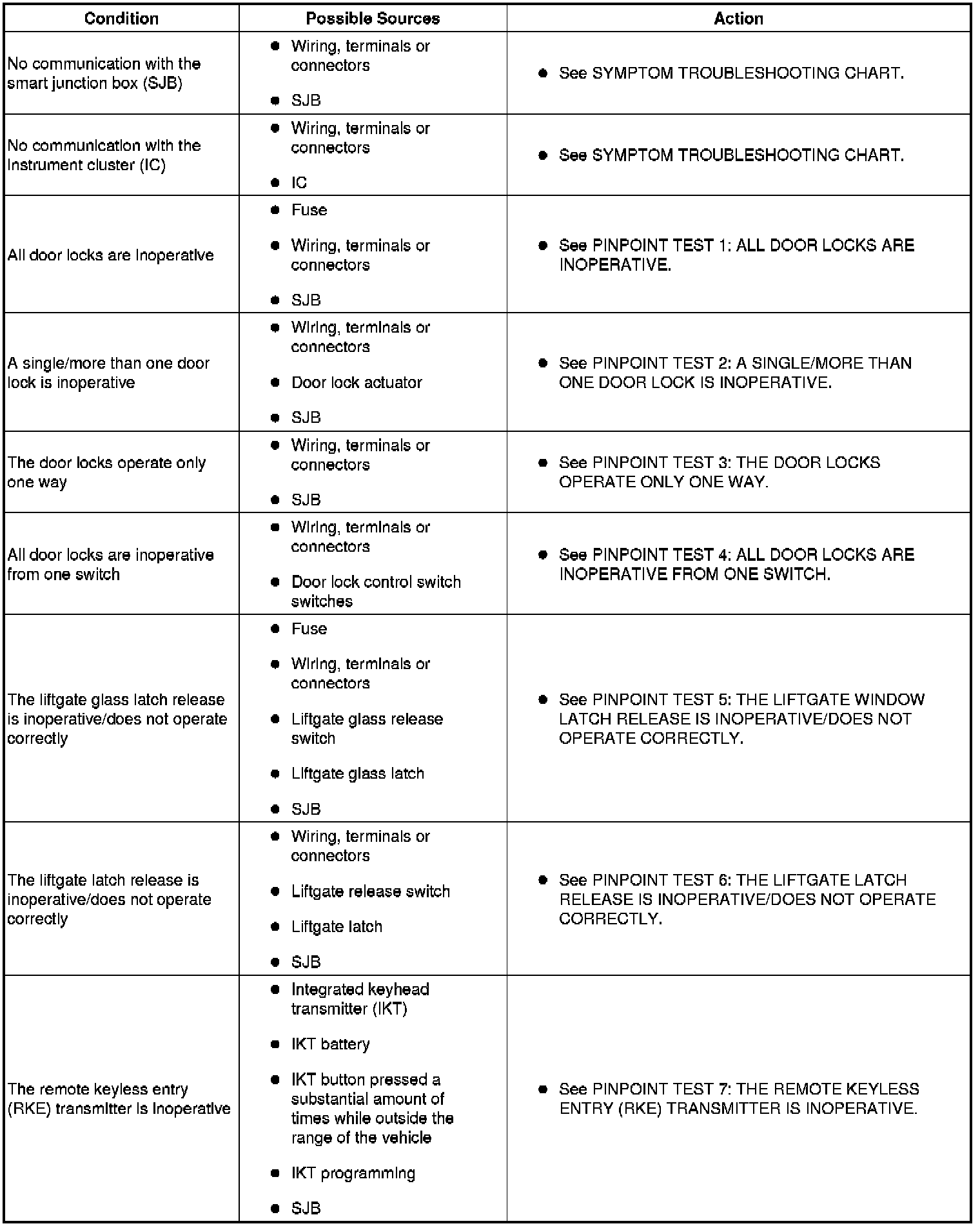

Symptom Troubleshooting Chart - Power Door Locks/Keyless Entry Remote Transmitter (Part 1):

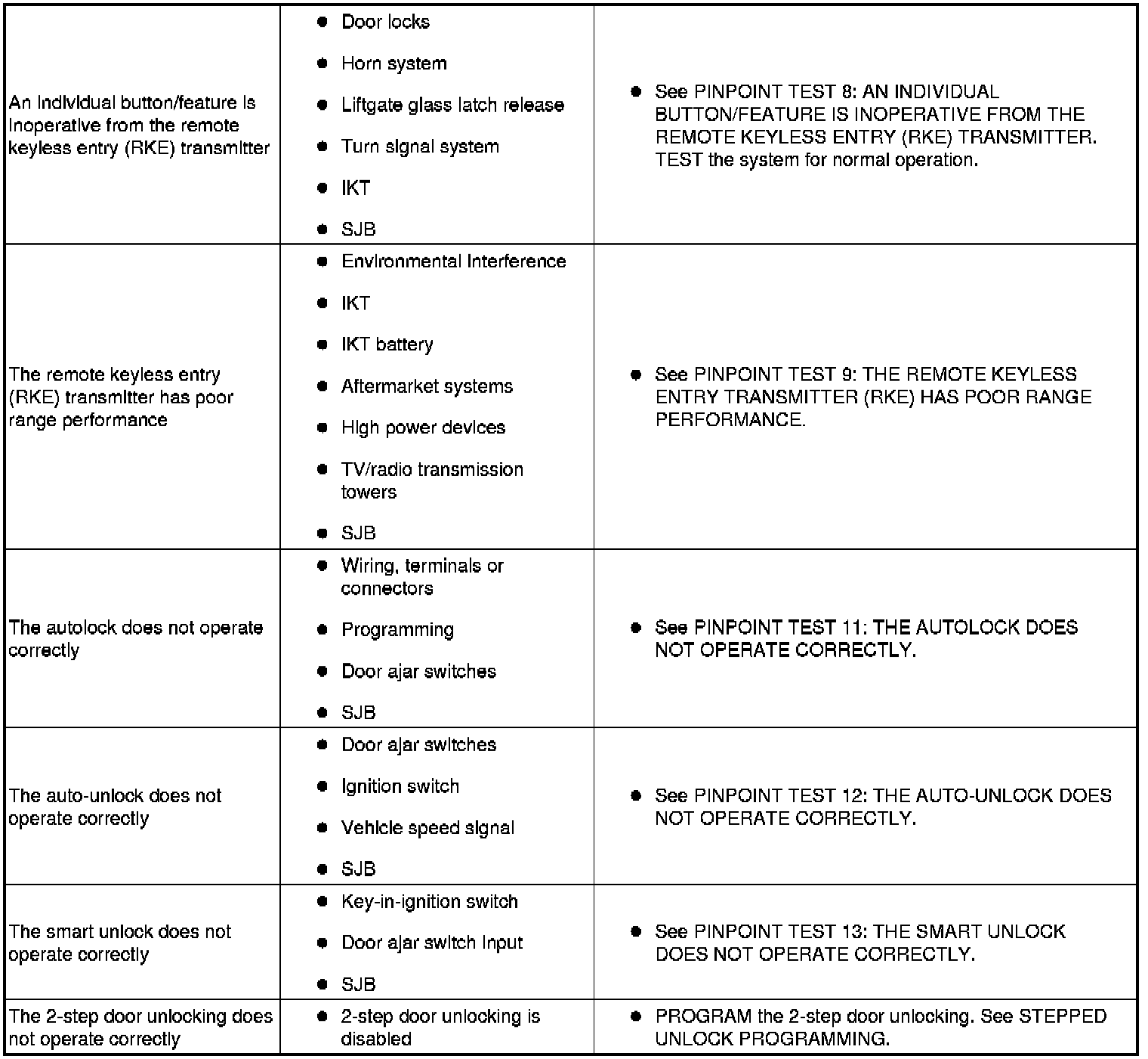

Symptom Troubleshooting Chart - Power Door Locks/Keyless Entry Remote Transmitter (Part 2):
