Disc Brake System: Locations



-

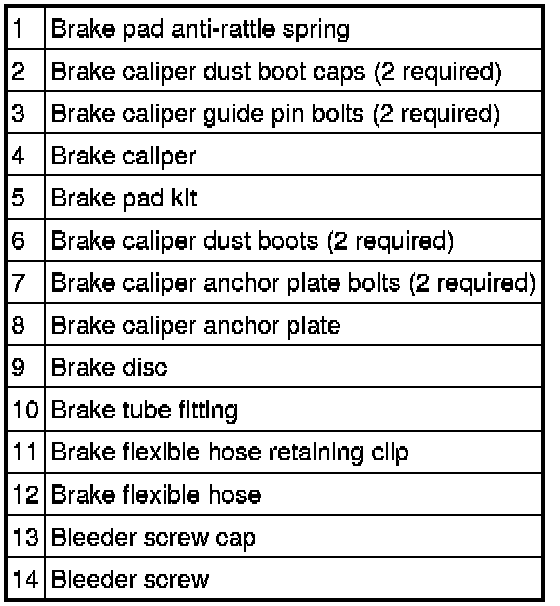

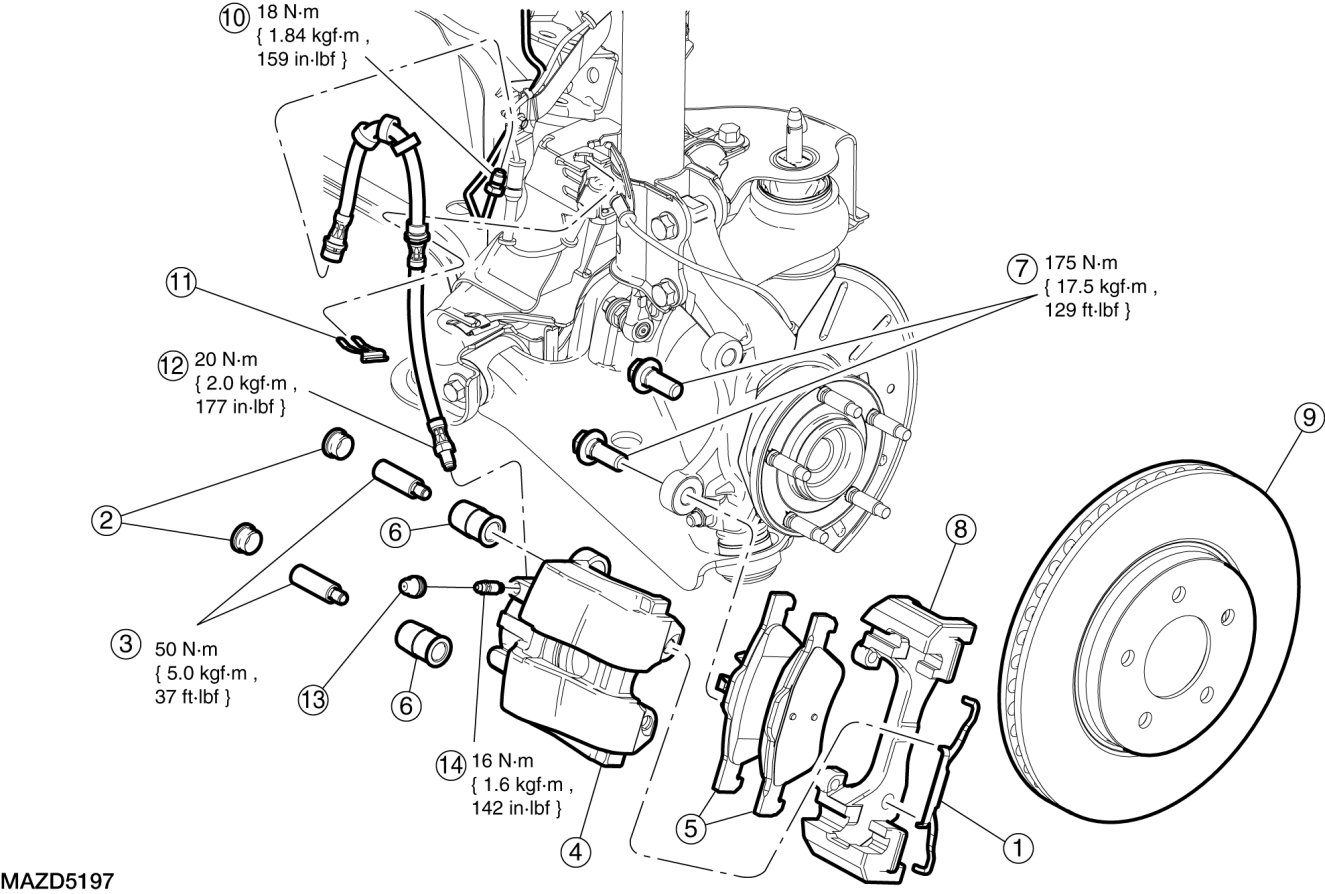

DISC BRAKE SYSTEM - EXPLODED VIEW









1. For additional information, see the procedures.
