Drum Brake System: Locations



-

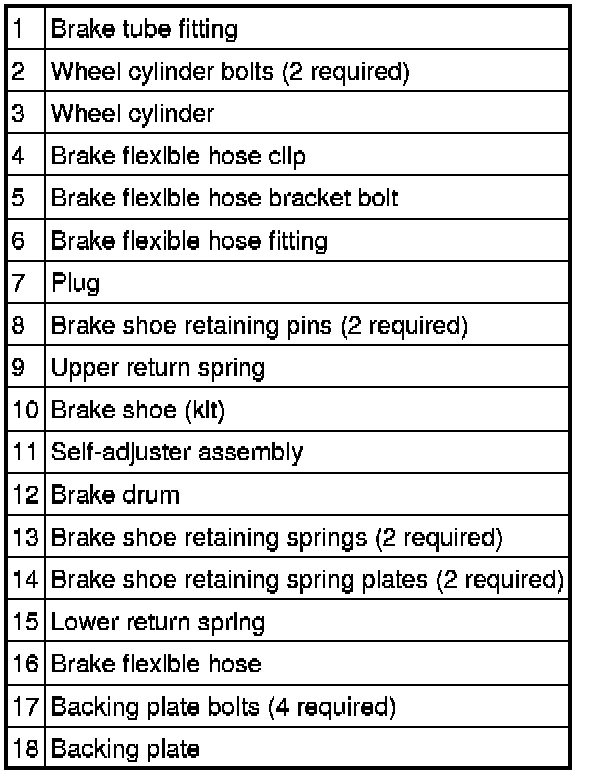

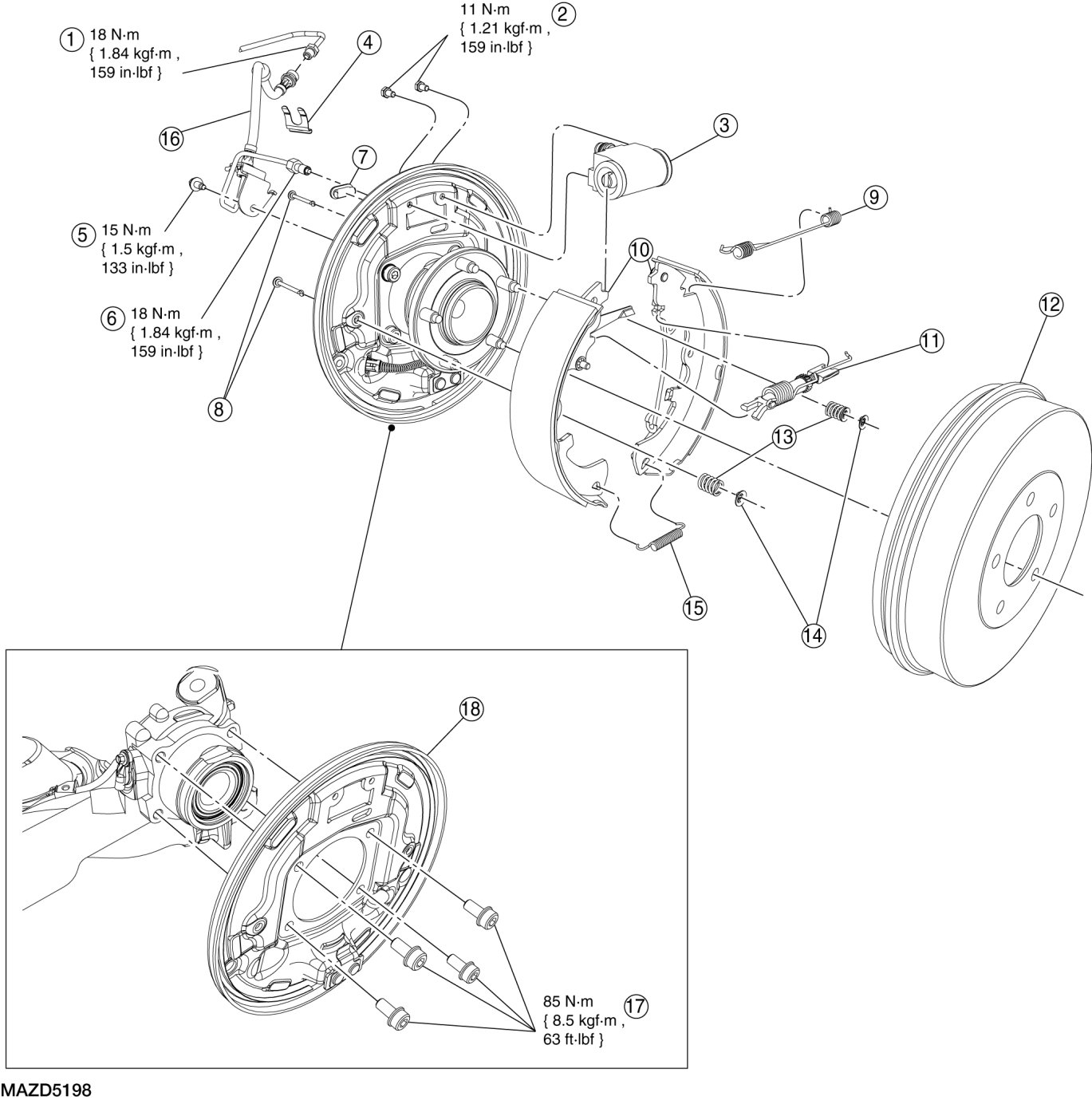

DRUM BRAKE SYSTEM - EXPLODED VIEW









1. For additional information, see the procedures.
