Engine Lubrication

-
ENGINE LUBRICATION COMPONENTS EXPLODED VIEW - 2.5L

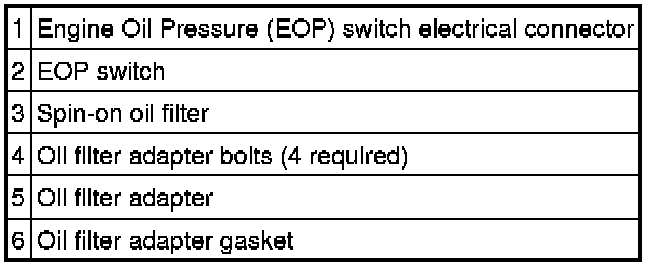

Oil Filter Adapter, Spin-On Oil Filter and Engine Oil Pressure (EOP) Switch

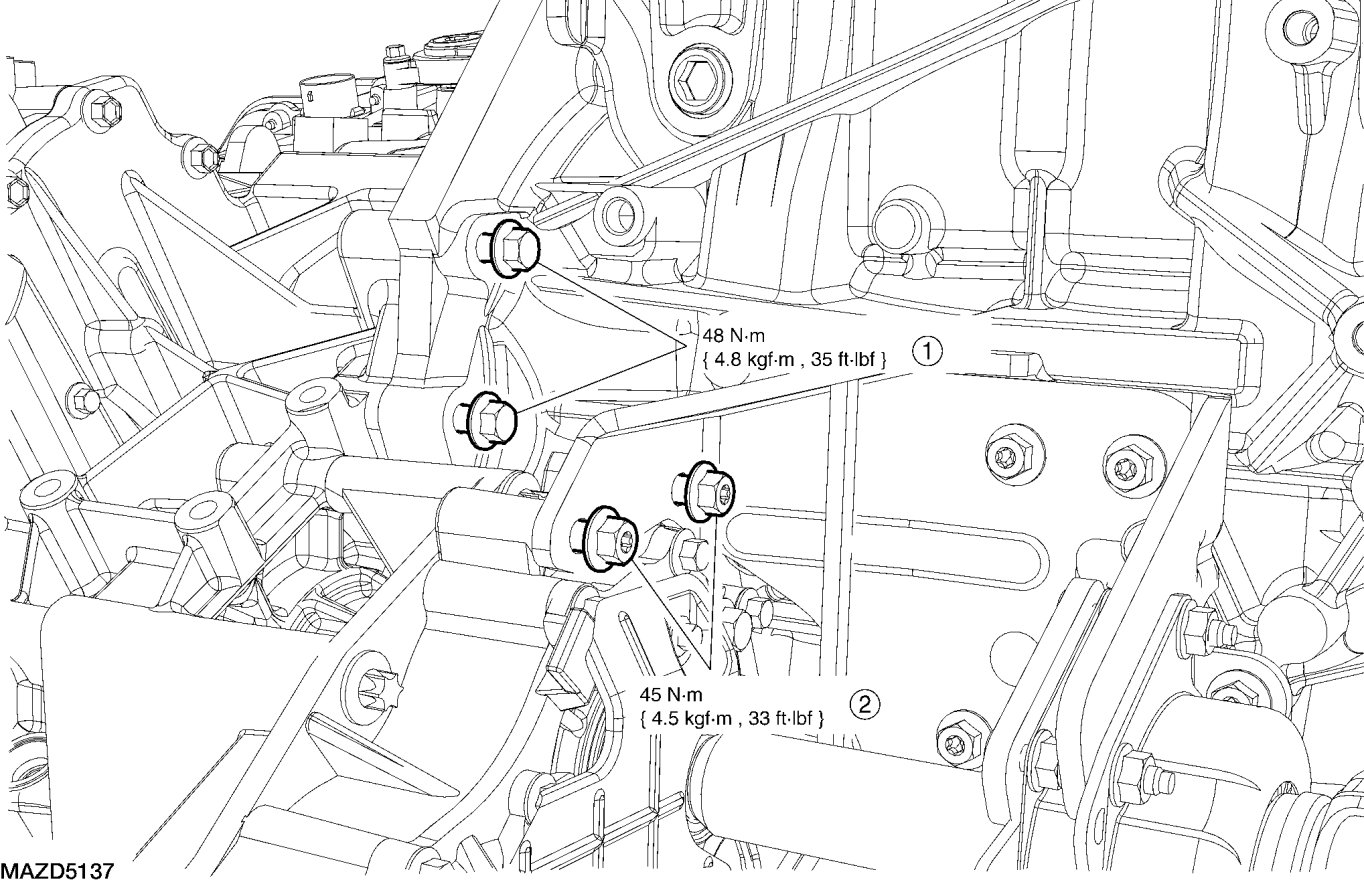

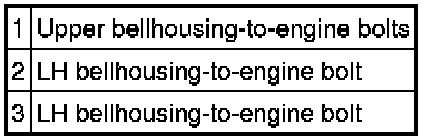

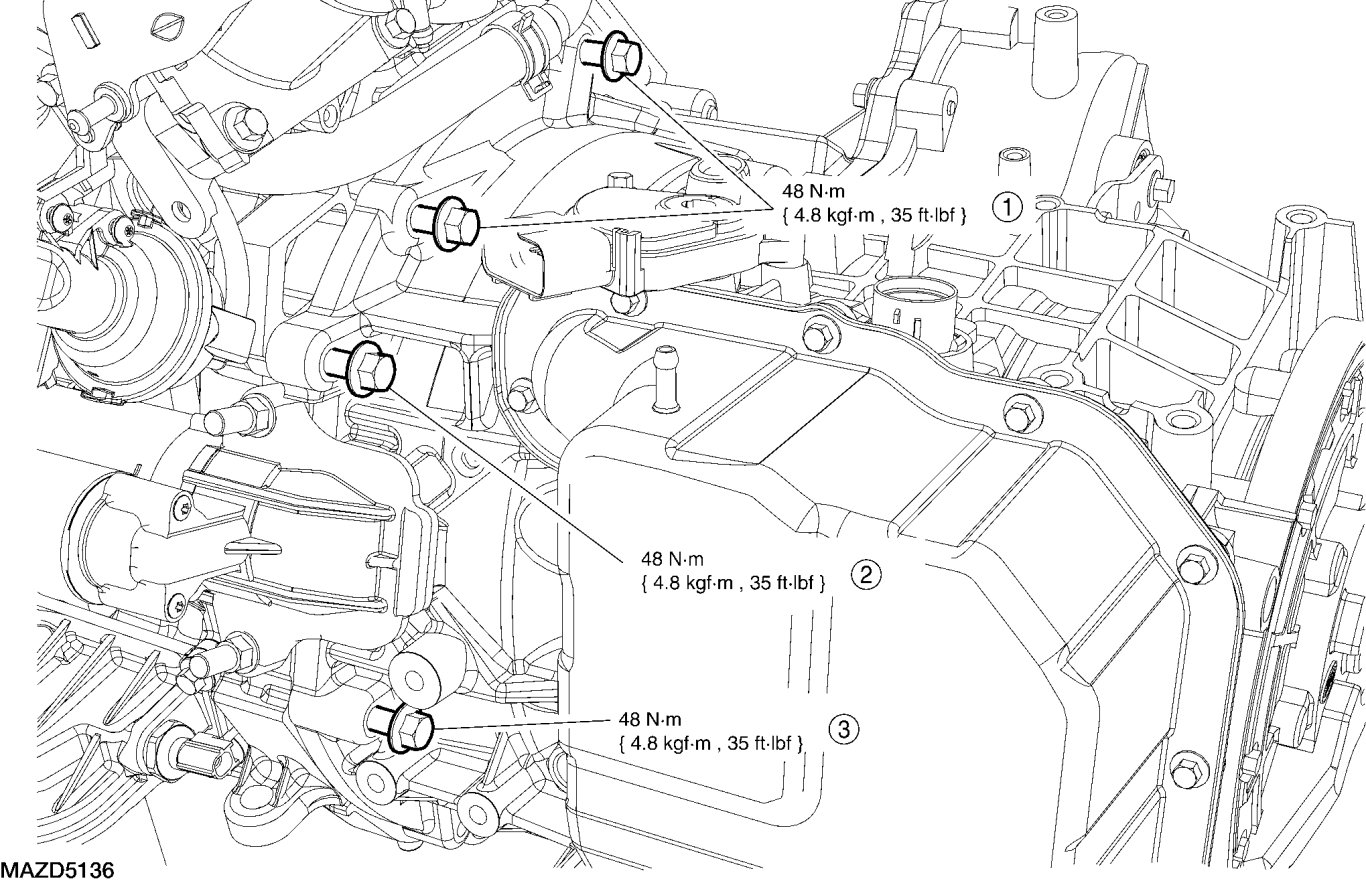

NOTE:Automatic transaxle shown, manual transaxle similar.

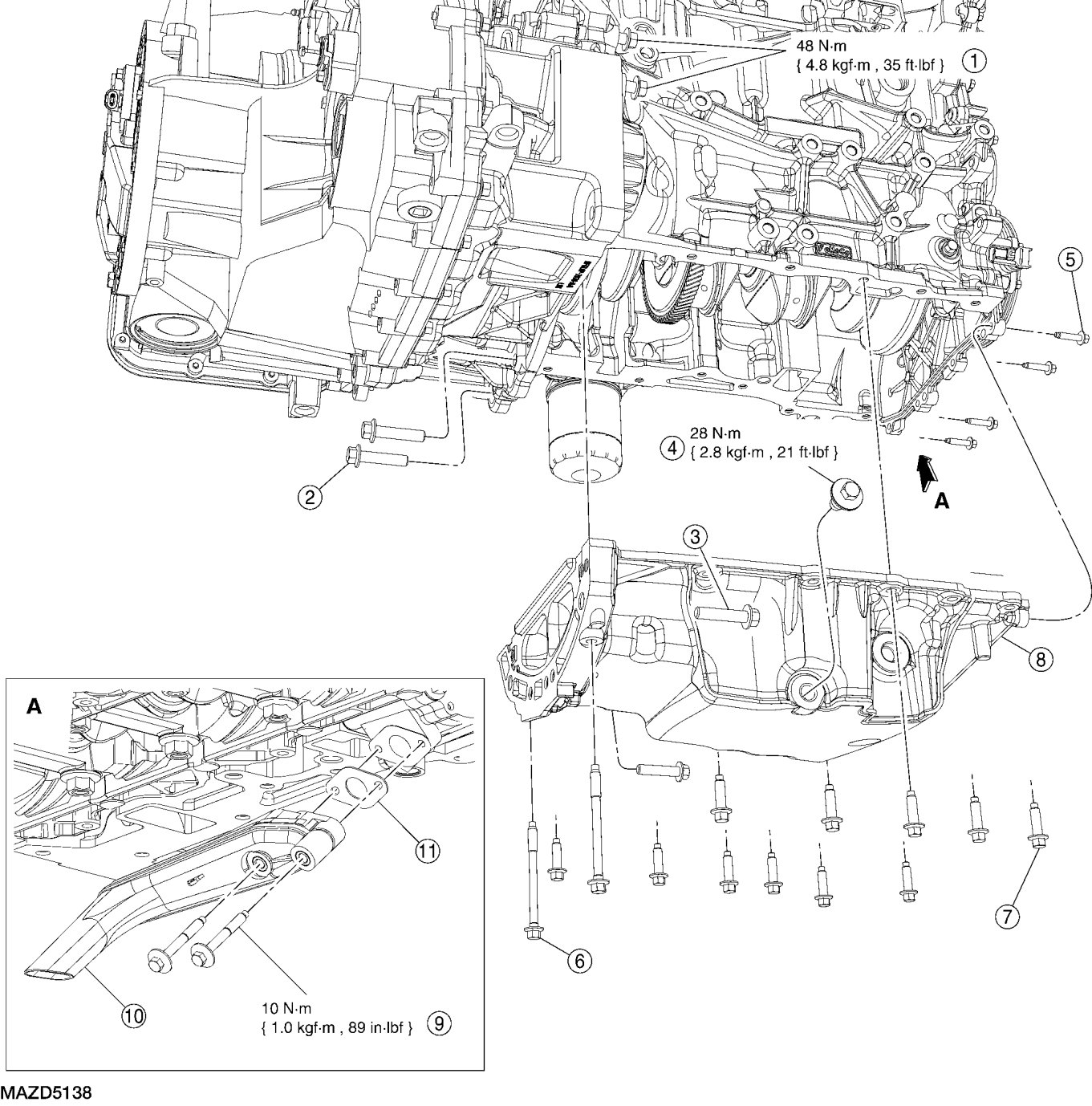

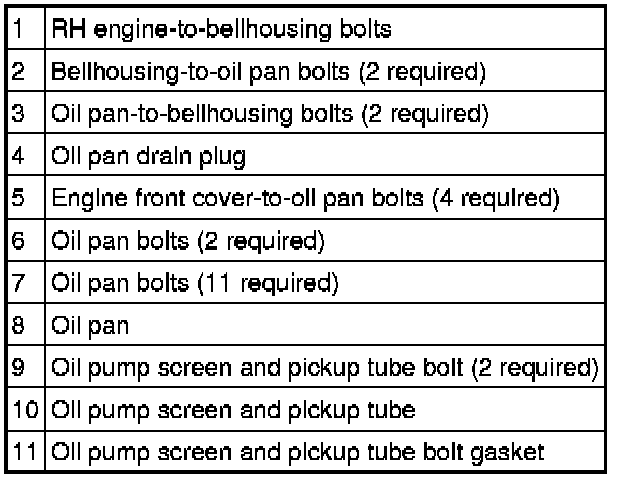

Oil Pan, Oil Pump Screen and Pickup Tube, Front Wheel Drive (FWD) Vehicles










Oil Pan, Oil Pump Screen and Pickup Tube, All Wheel Drive (AWD) Vehicles










Oil Pan, Oil Pump Screen and Pickup Tube


















1. For additional information, see - Service and Repair, - Service and Repair, - Service and Repair, - Service and Repair or - Service and Repair.
