Home >> Mazda >> 2010 >> Tribute 4WD L4-2.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> System Diagram

System Diagram



-

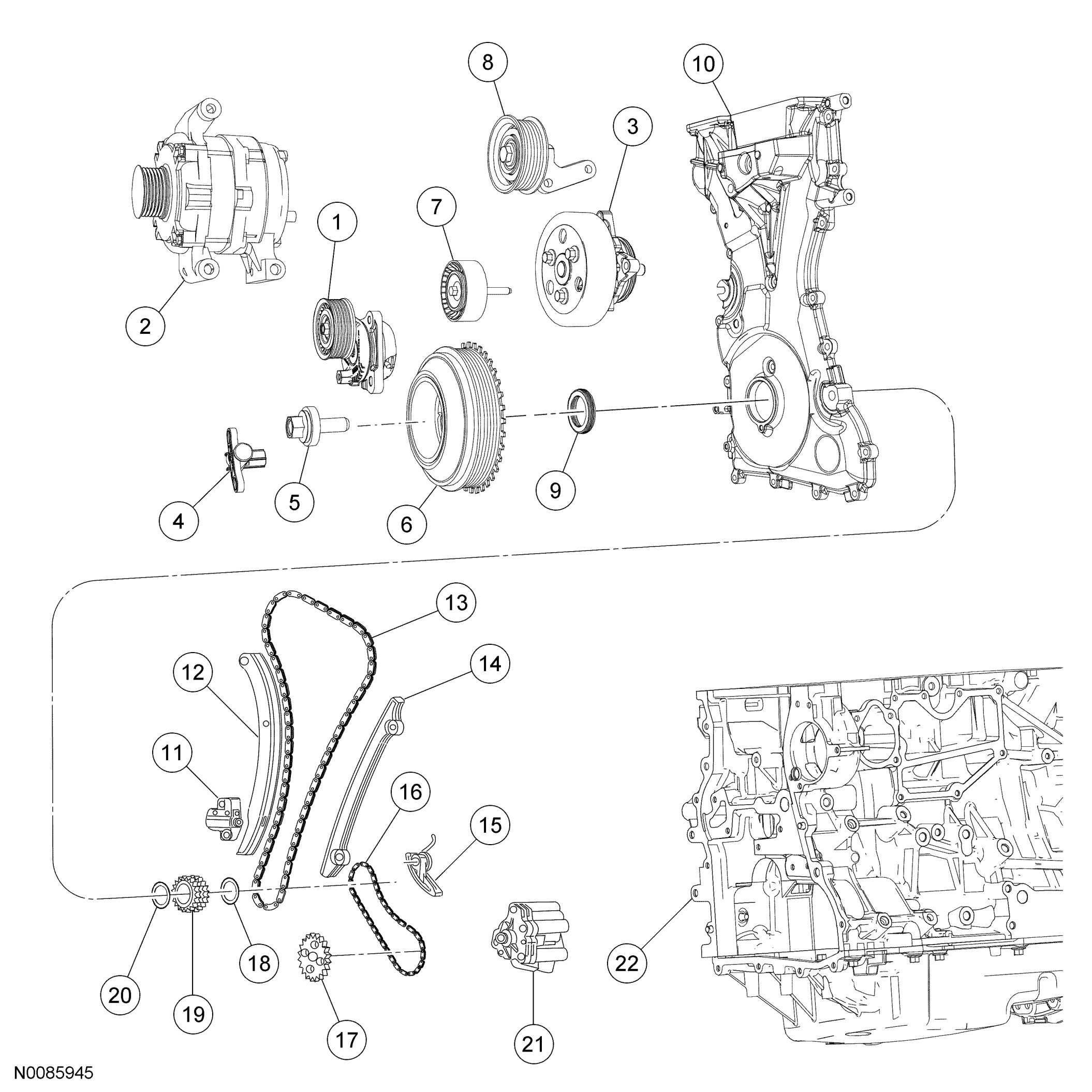

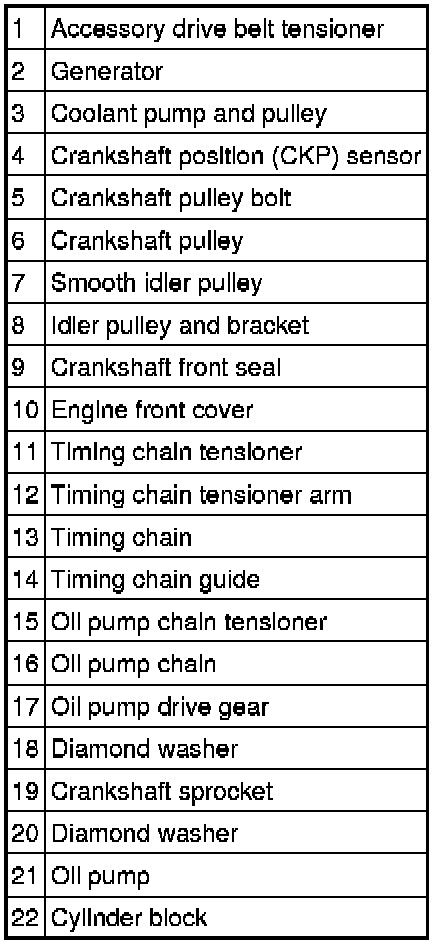

FRONT ENGINE BLOCK EXPLODED VIEW - 2.5L









1. For additional information, see the procedures.
