Radiator: Service and Repair

-
RADIATOR REMOVAL/INSTALLATION - 2.5L

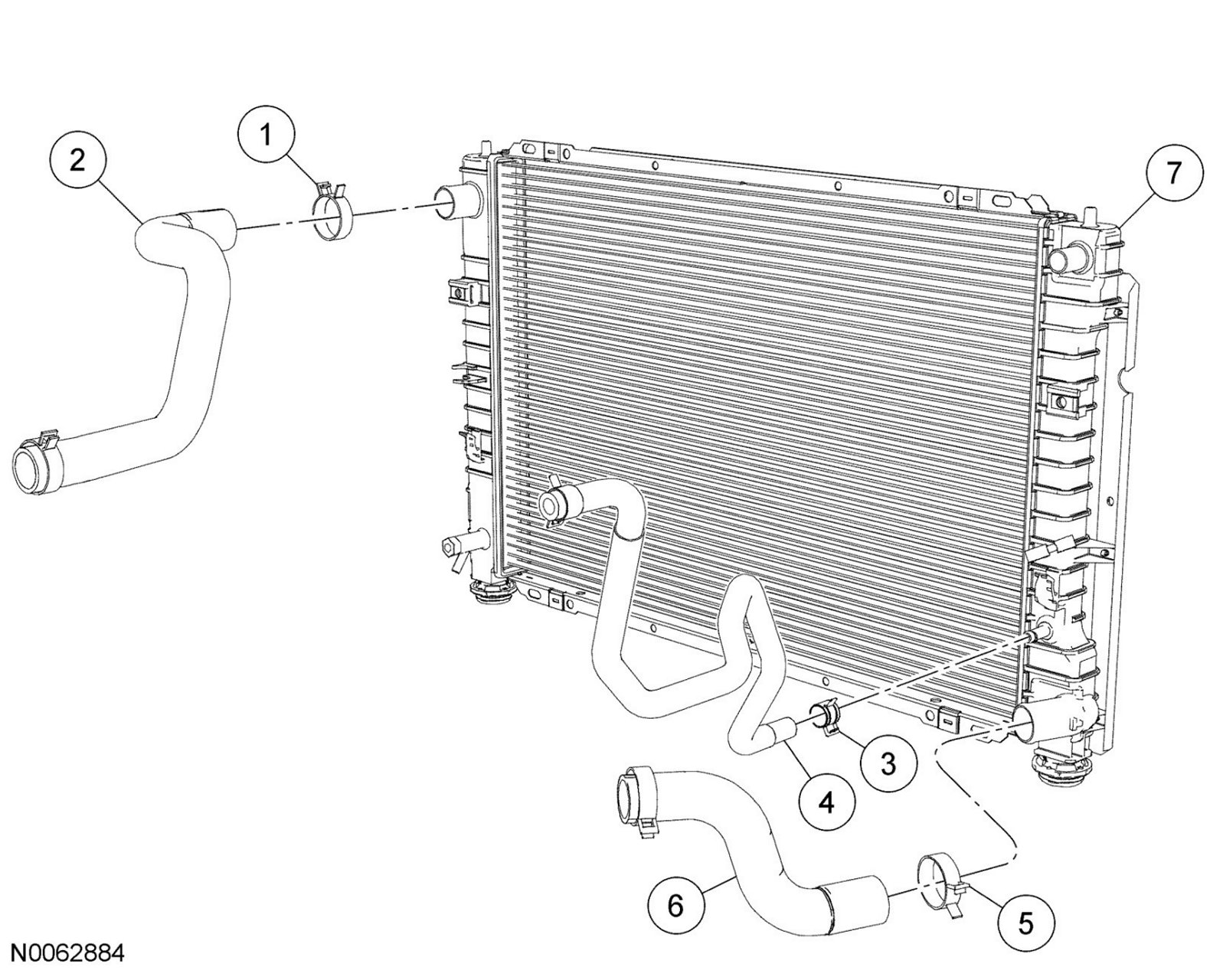

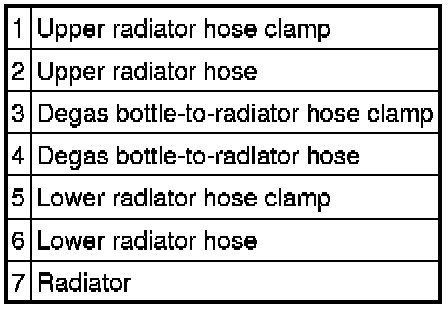

Radiator Hoses










Radiator










1. With vehicle in NEUTRAL, position it on a hoist. See Lifting.

2. Remove the cooling fan motor and shroud. See Service and Repair.

3. Disconnect the upper radiator hose from the radiator.

4. Disconnect the lower degas bottle-to-radiator hose from the radiator.

5. Disconnect the lower radiator hose from the radiator.

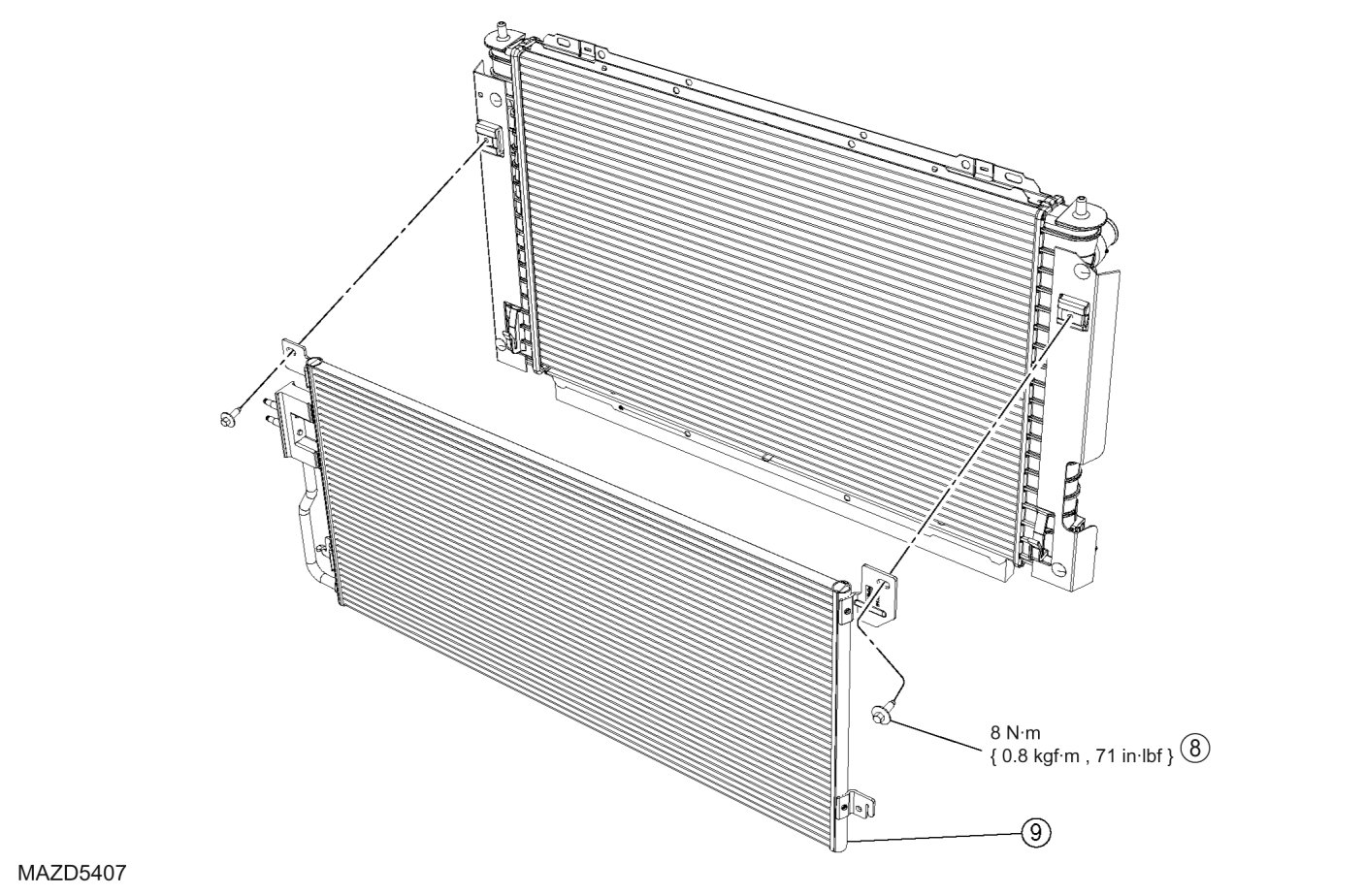

6. Remove the 2 A/C condenser-to-radiator bolts and position the A/C condenser aside.

- To install, tighten to 8 Nm {.0.8 kgf-m, 71 in-lbf}.

7. Remove the radiator.

8. To install, reverse the removal procedure.
