Lower Engine Block Exploded View



-

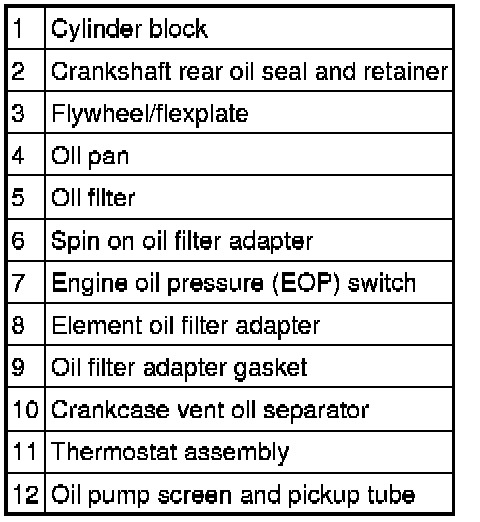

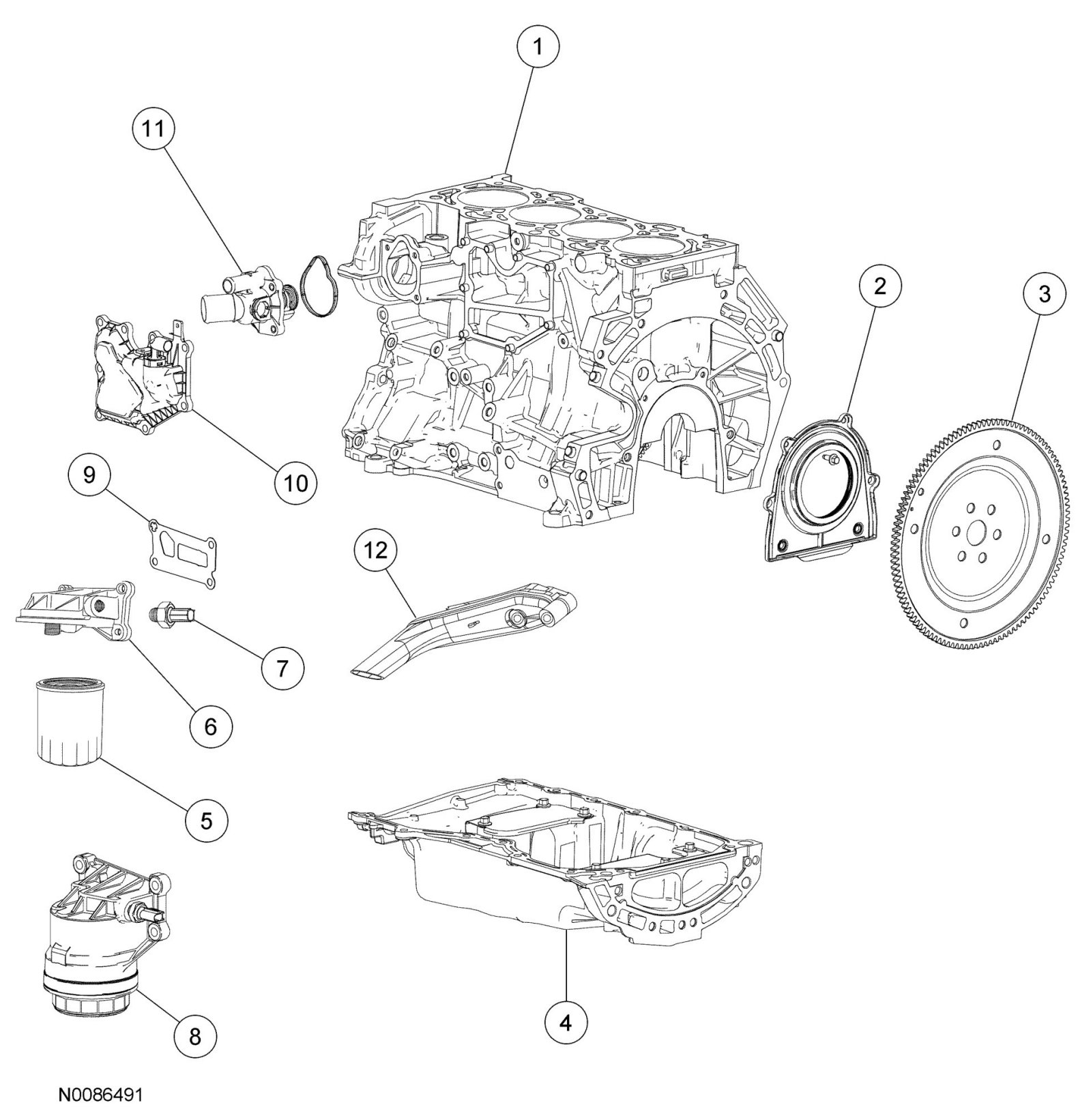

LOWER ENGINE BLOCK EXPLODED VIEW - 2.5L









1. For additional information, see the procedures.
