Connector End Views - Manual Climate Control
Connector End Views - Manual Climate Control
-

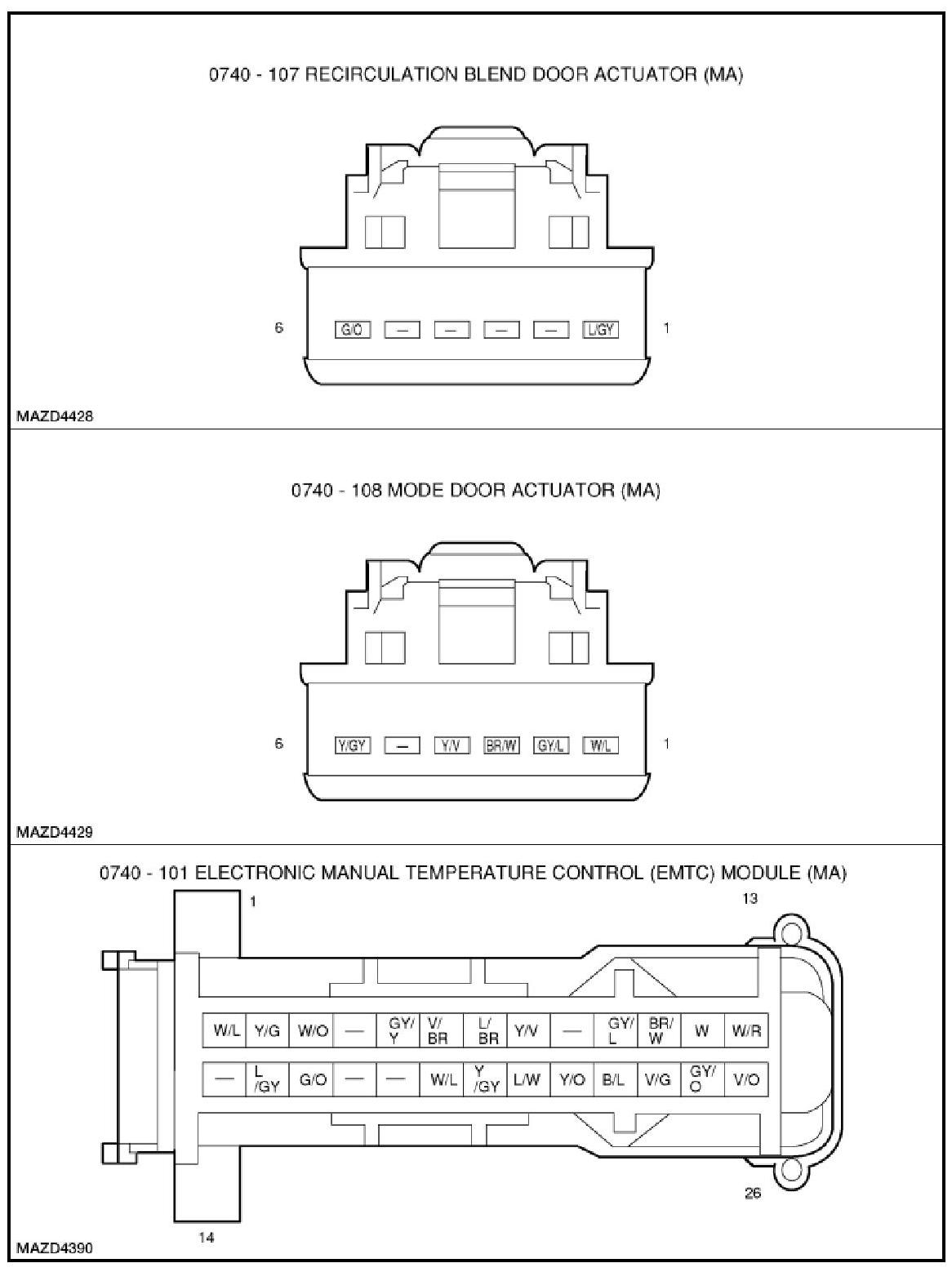

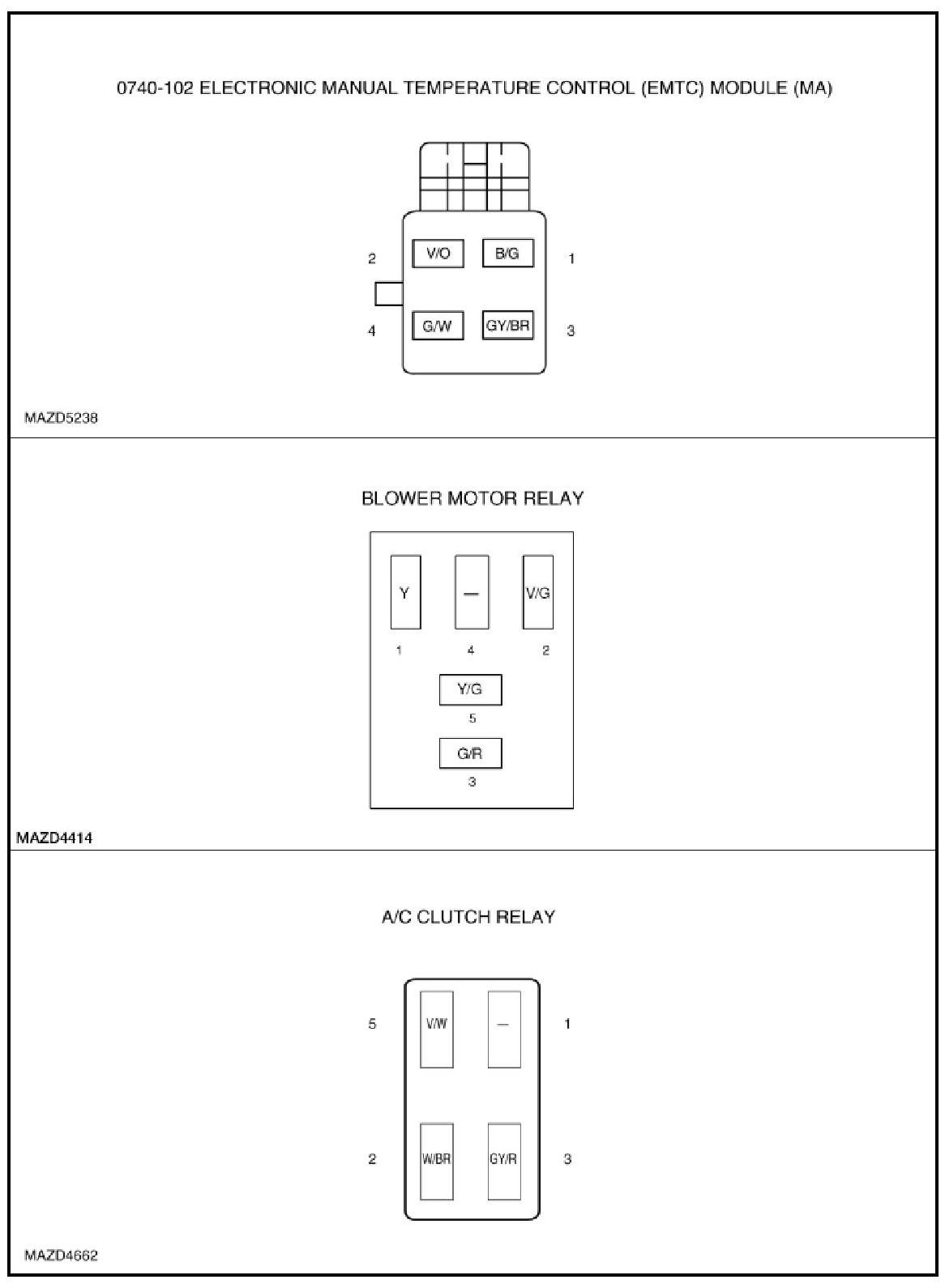

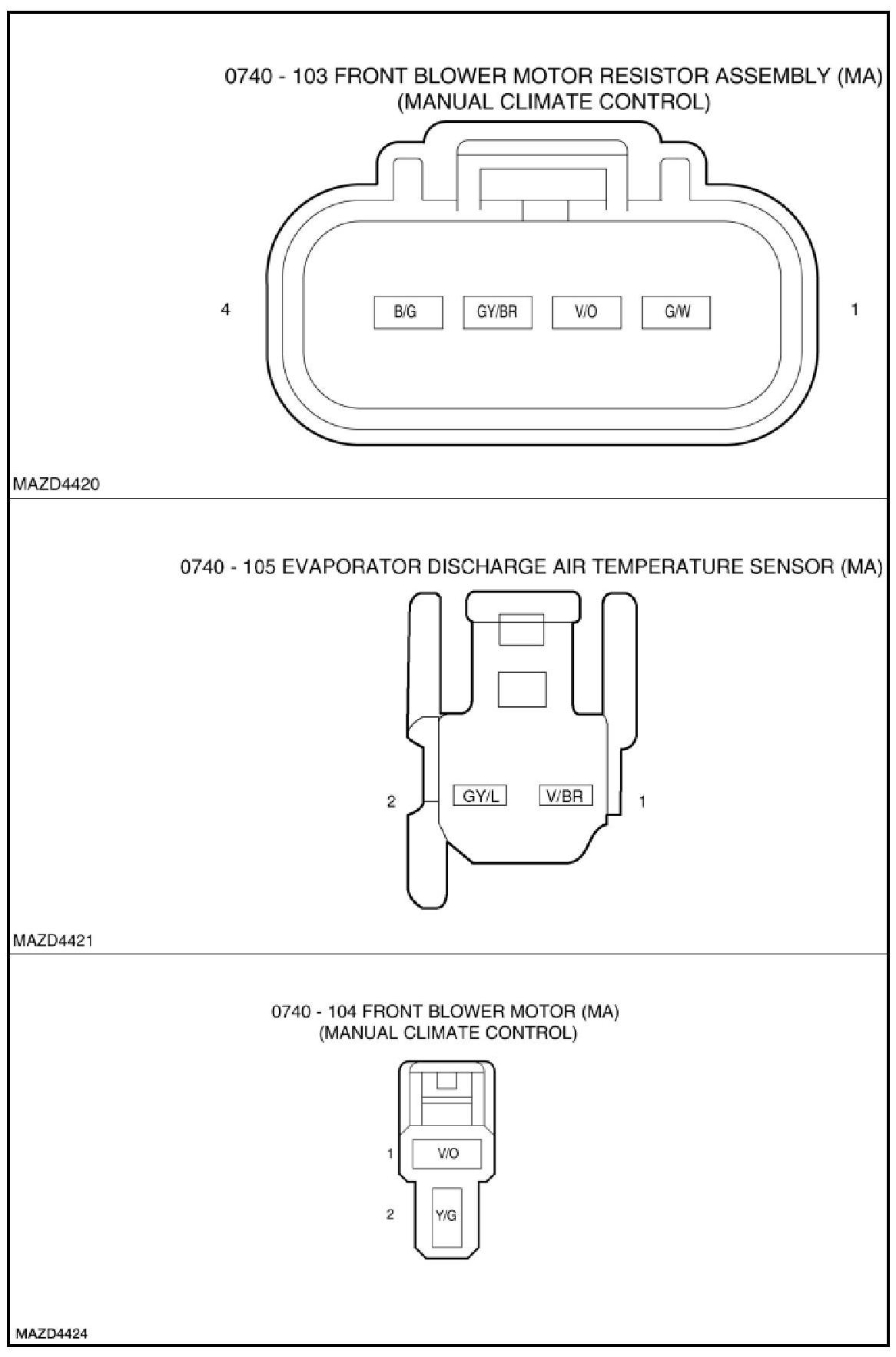

CONNECTOR END VIEWS - MANUAL CLIMATE CONTROL
