SYMPTOM TROUBLESHOOTING CHART - CLIMATE CONTROL
NOTE:
Some PCM DTCs may inhibit A/C operation. If any PCM DTCs are retrieved, diagnose those first. See -
PCM DTC Chart
.

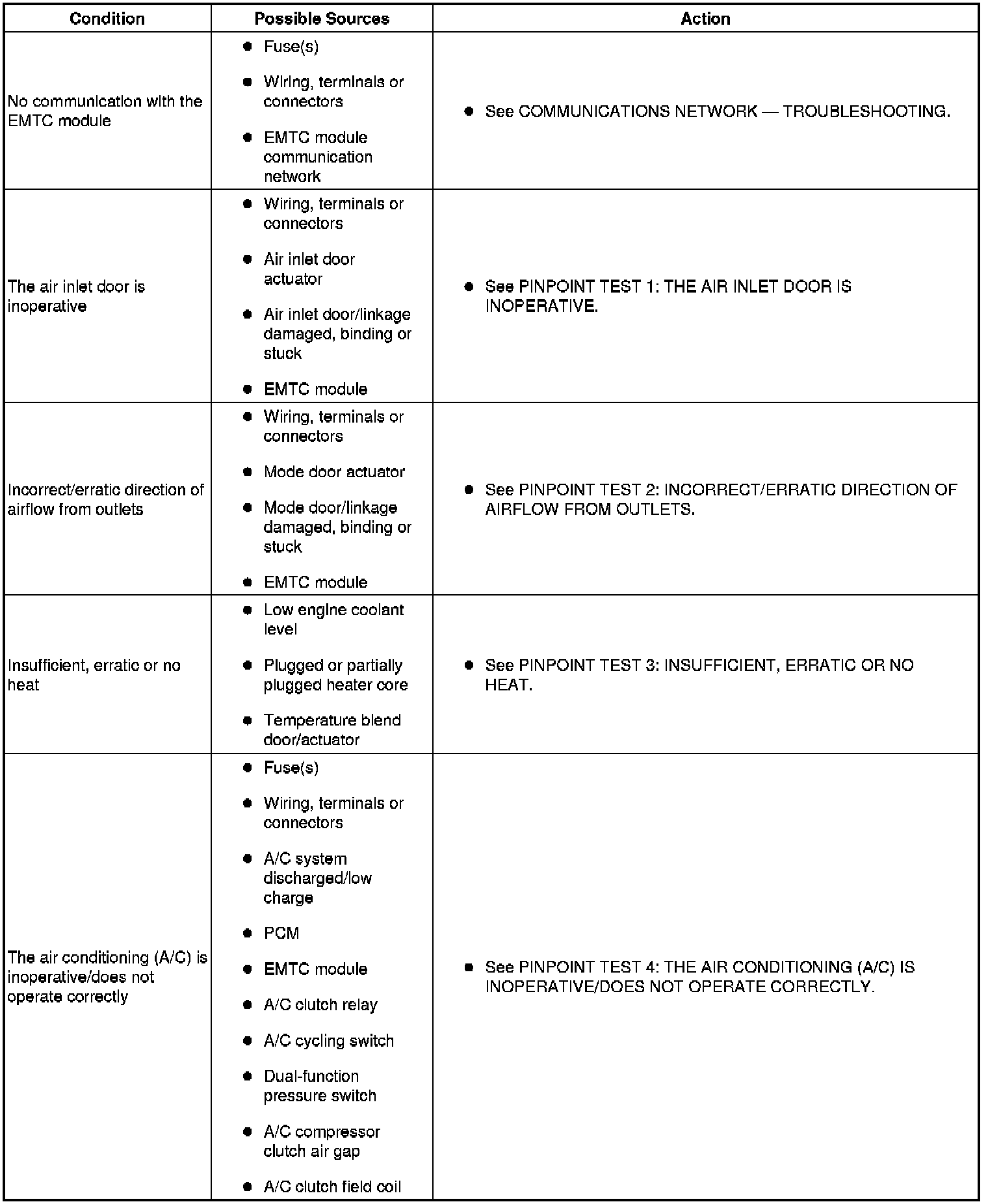

Symptom Troubleshooting Chart - Climate Control (Part 1):

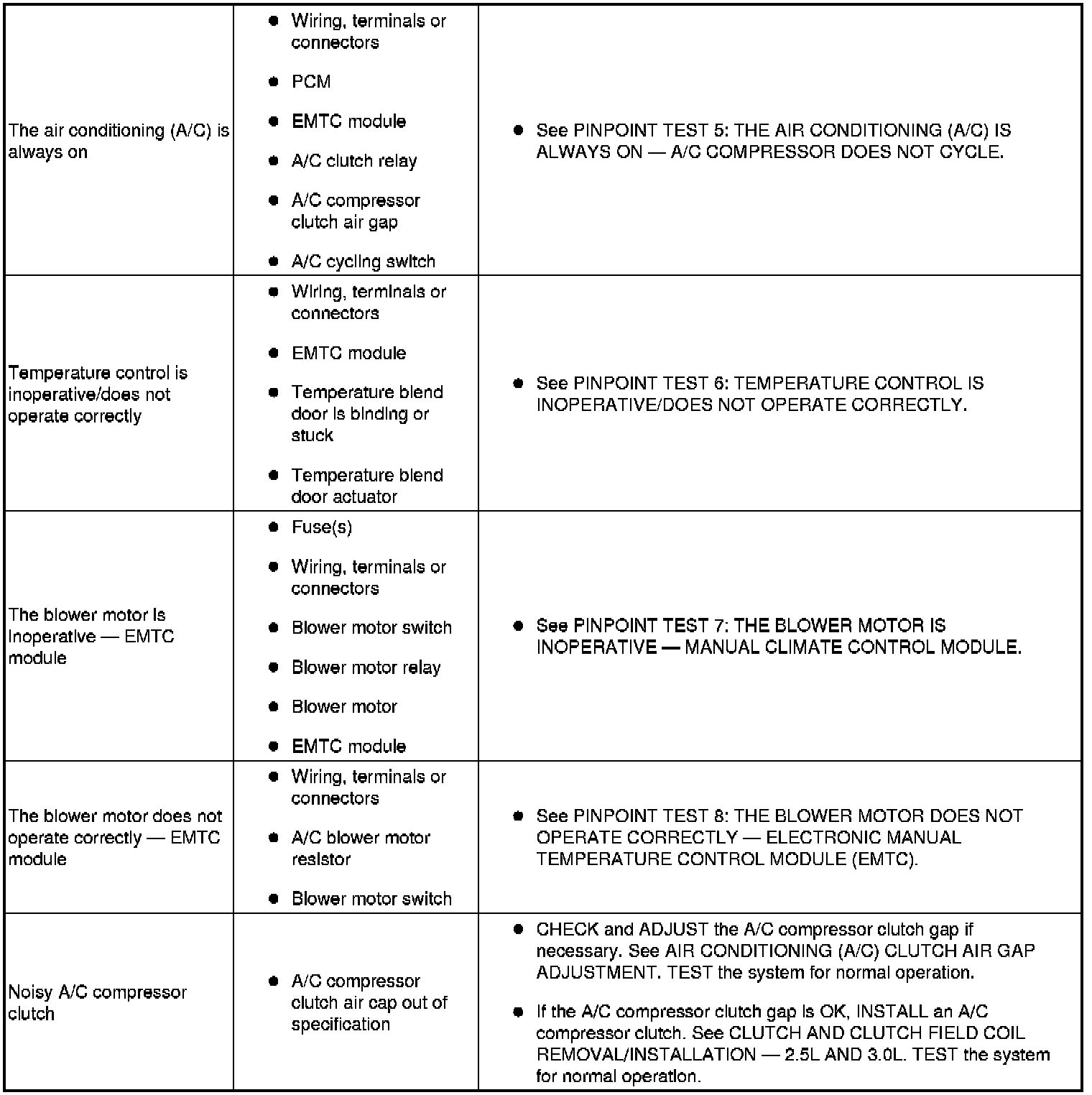

Symptom Troubleshooting Chart - Climate Control (Part 2):
