Cargo Lamp: Service and Repair

CARGO LAMP REMOVAL/INSTALLATION

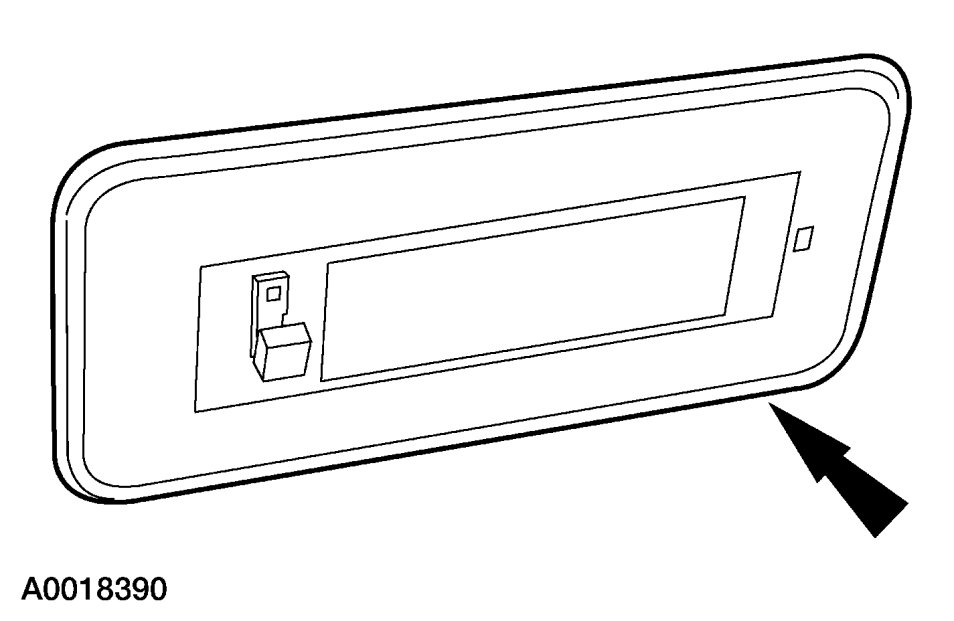

1. Remove the cargo lamp assembly from the headliner.

NOTE:The retaining tab (accessed through a notch) is released by pushing it inward using a thin-bladed flat tool.
2. Disconnect the electrical connectors and remove the cargo lamp assembly.

3. To install, reverse the removal procedure.
