Canister Purge Control Valve: Testing and Inspection

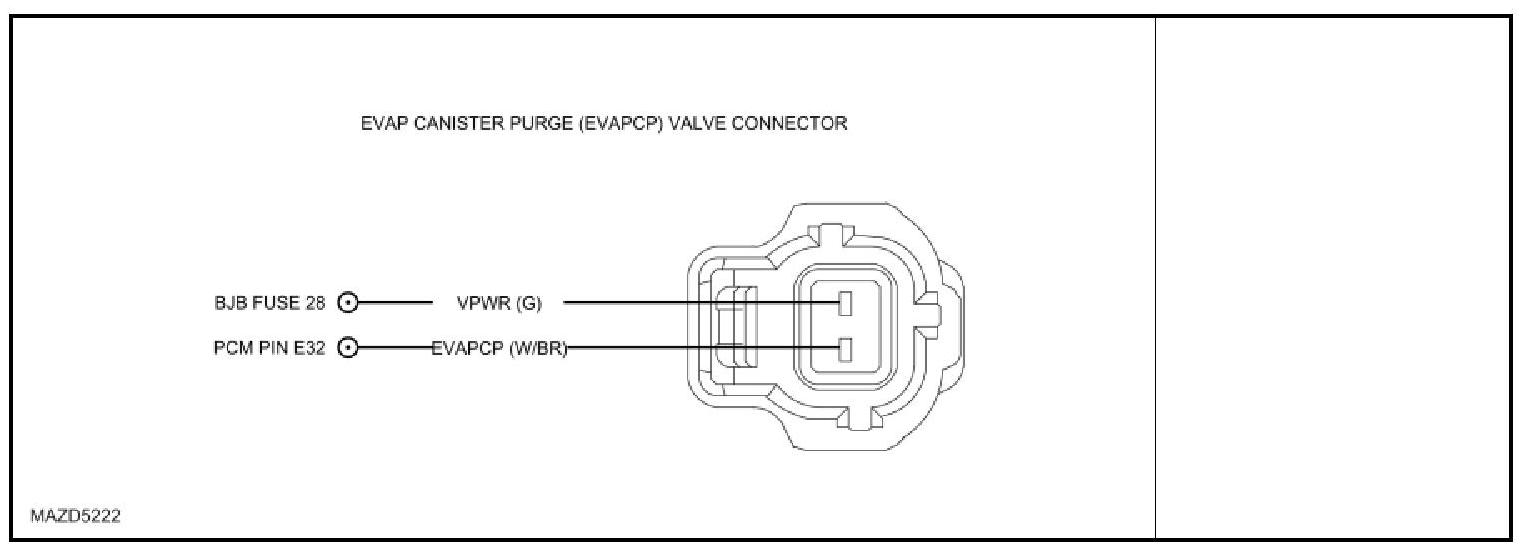

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE SOLENOID MALFUNCTION

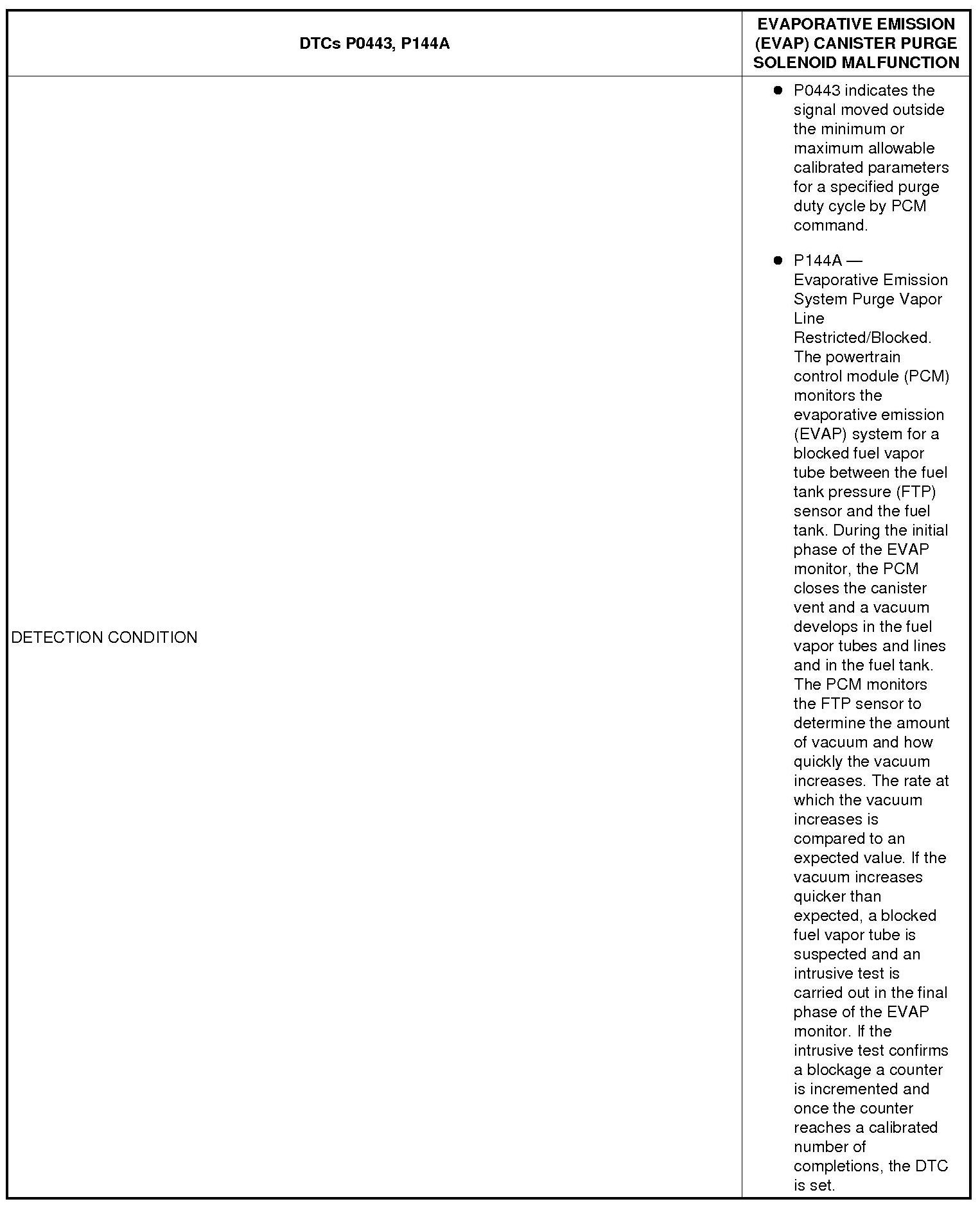

Detection Condition:





Possible Causes:

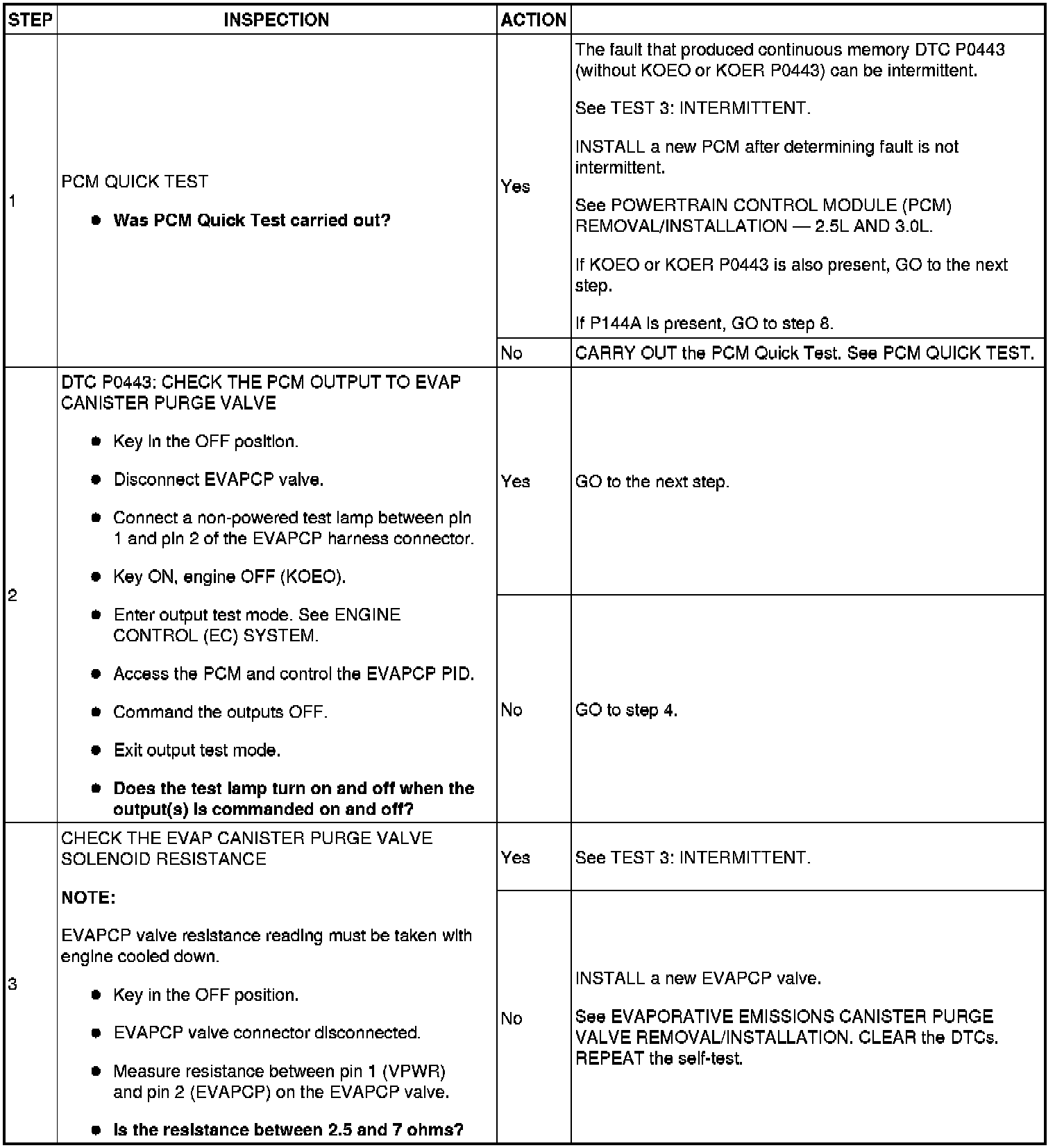

Step 1-Step 3:

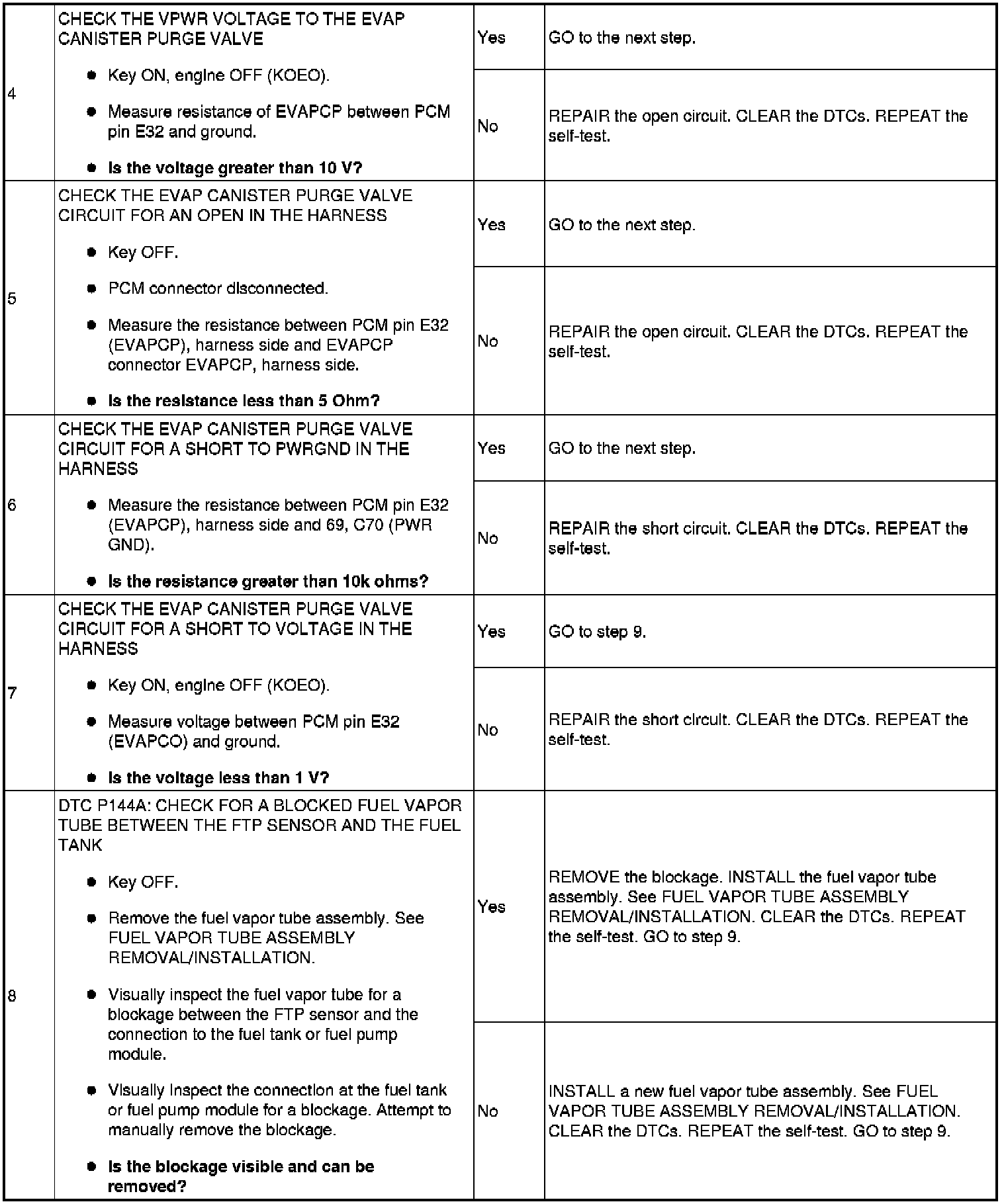

Step 4-Step 8:

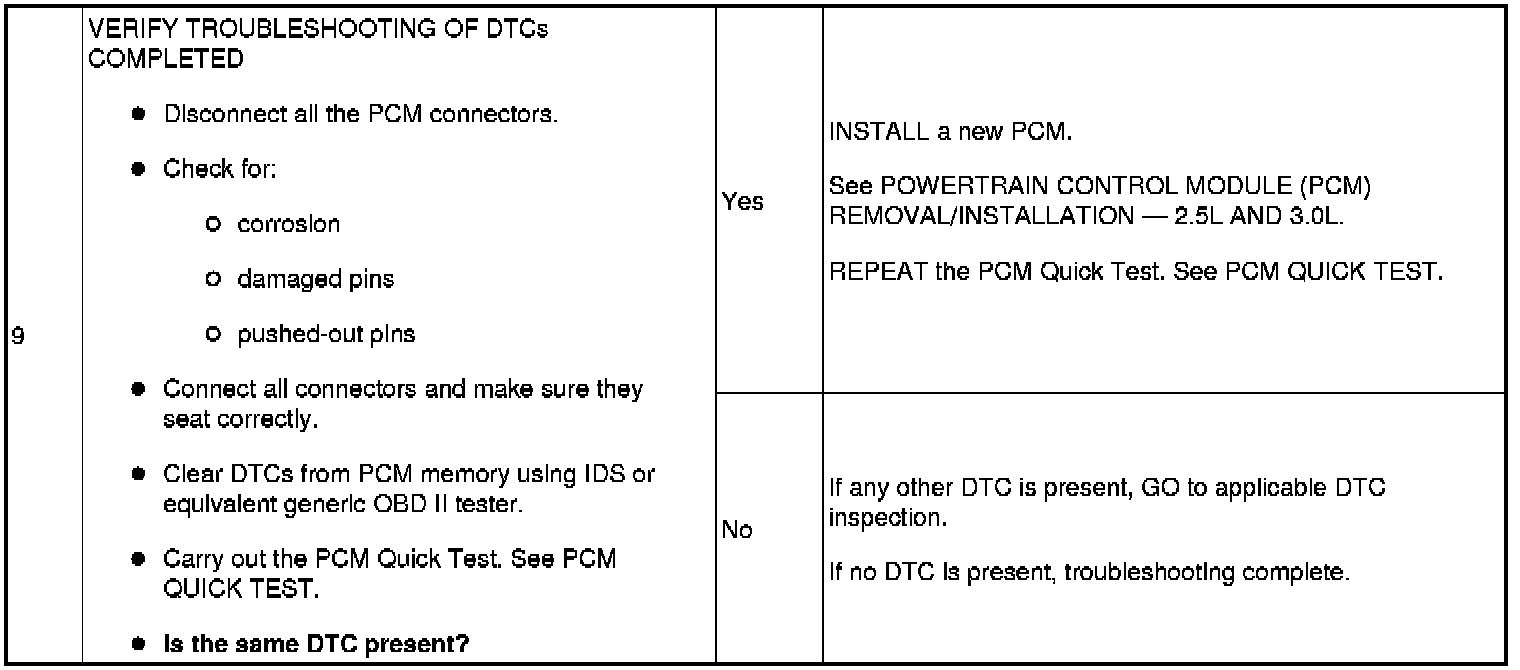

Step 9:
