Cylinder Head Assembly

Cylinder Head





NOTE:Lubricate the bolts with clean engine oil prior to installation.
Install the cylinder head and 10 new bolts. Tighten the bolts in the sequence shown in 5 stages.

- Stage 1: Tighten the bolts to 5 Nm {0.5 kgf-m, 44 in-lbf}.
- Stage 2: Tighten the bolts to 15 Nm {1.5 kgf-m, 133 in-lbf}.
- Stage 3: Tighten the bolts to 45 Nm {4.6 kgf-m, 33 ft-lbf}.
- Stage 4: Turn 90 degrees.
- Stage 5: Turn an additional 90 degrees.

Head Bolt Reuse/Replace

The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.


Surface Variation

Cylinder Head flatness

Maximum Overall 0.08 mm (0.0031 in)
Maximum within 150 mm (5.9 in) 0.05 mm (0.0019 in)

Camshaft Bearing Cap

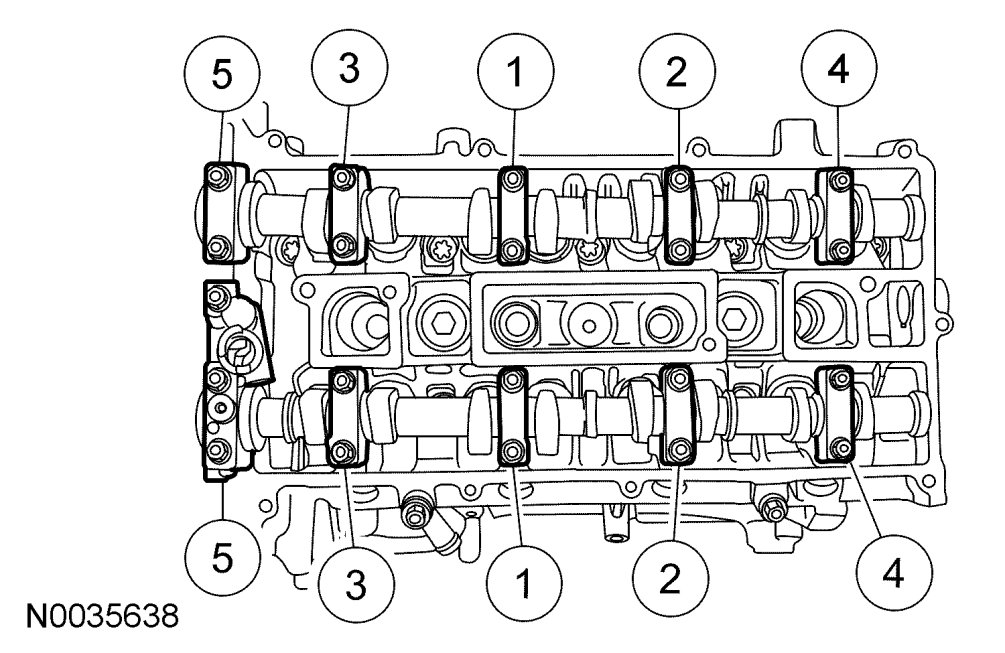

Install the camshafts and bearing caps in their original location and orientation. Tighten the bearing caps in the sequence shown in 3 stages.

- Stage 1: Tighten the camshaft bearing cap bolts, one turn at a time, until finger tight.
- Stage 2: Tighten to 7 Nm {0.7 kgf-m, 62 in-lbf}.
- Stage 3: Tighten to 16 Nm {1.6 kgf-m, 142 in-lbf}.
