Specifications
>>
Pressure, Vacuum and Temperature Specifications
>>
Automatic Transmission/Transaxle
Automatic Transmission/Transaxle
SPECIFICATIONS

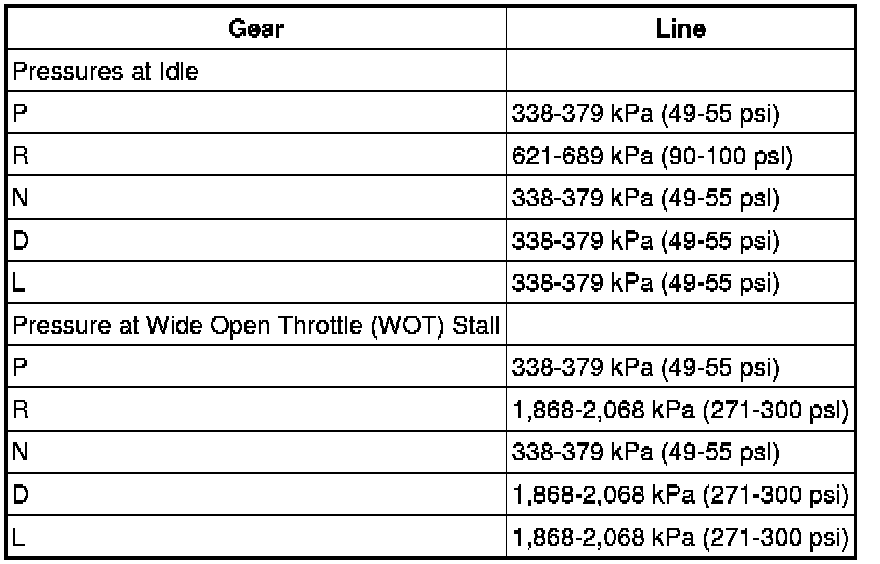

Line Pressure Chart
a All pressures are approximate
