Shift Cable: Service and Repair

SELECTOR LEVER CABLE REMOVAL/INSTALLATION









1. With the vehicle in NEUTRAL, position it on a hoist. See Lifting.

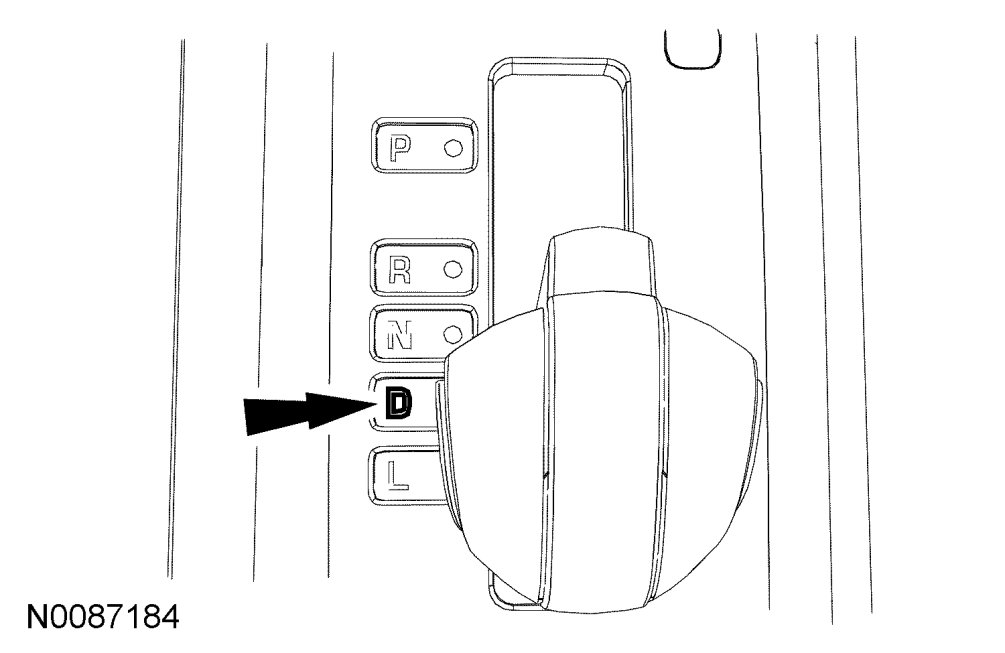

2. Place the selector lever in the (D) position.

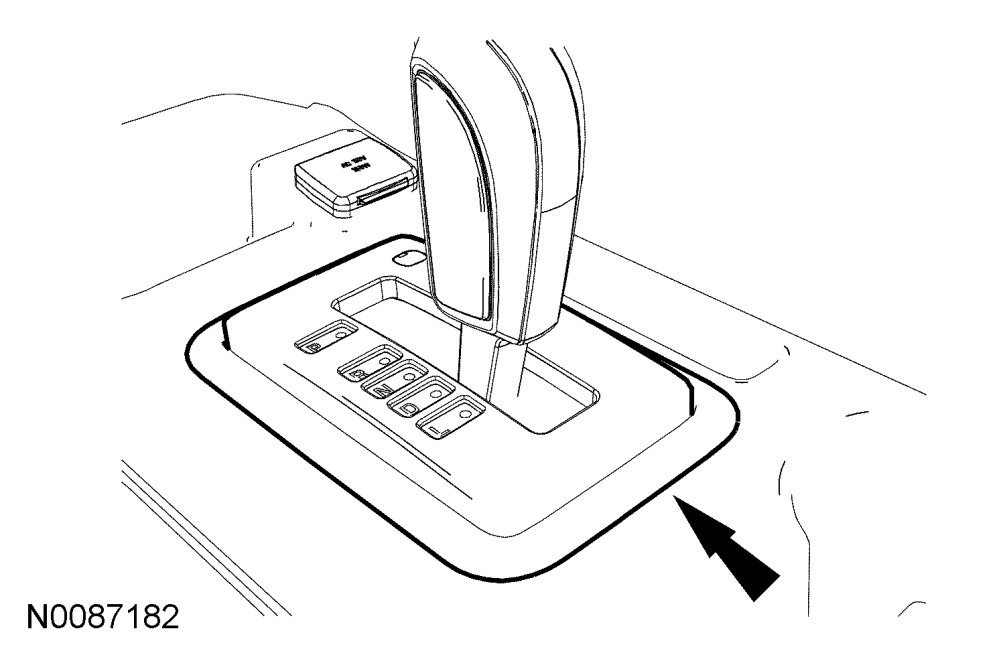

3. Gently pry up to remove the upper selector lever trim ring.

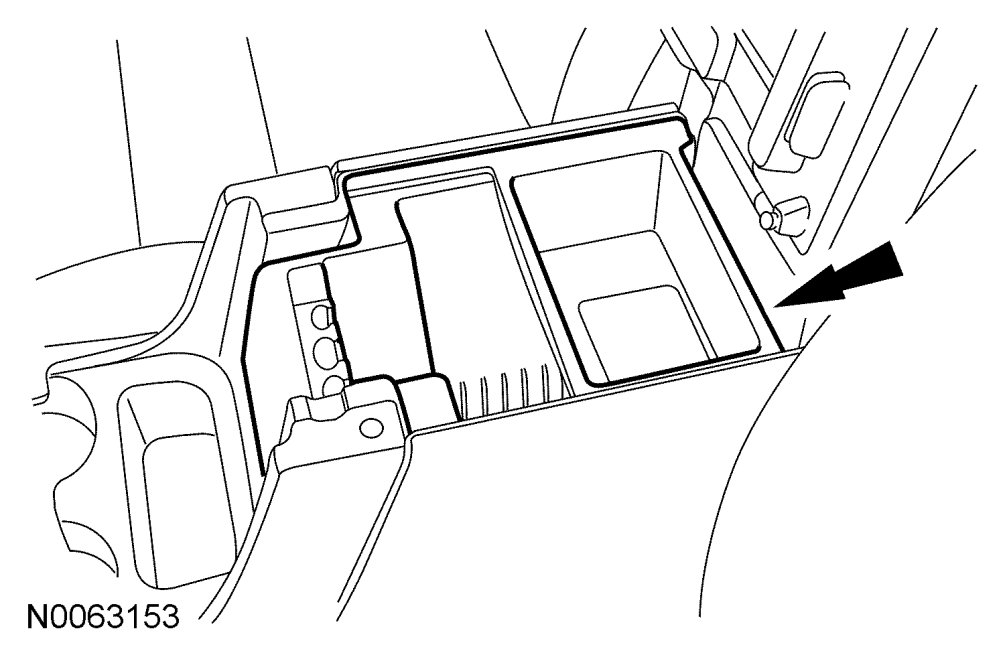

4. Lift the center console lid and remove the center console compartment tray.

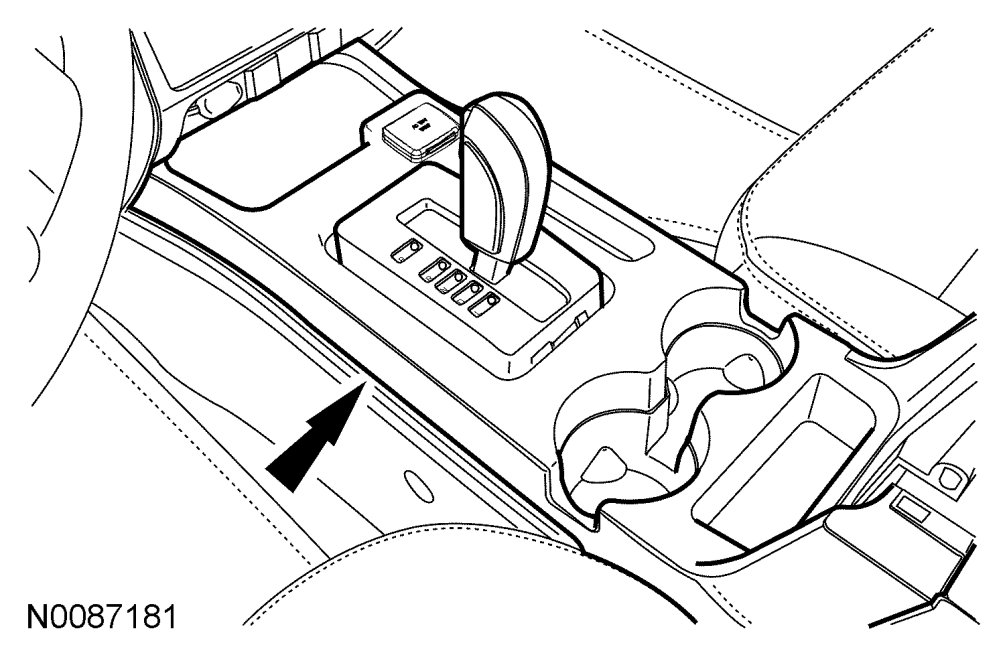

5. Remove the top finish panel.

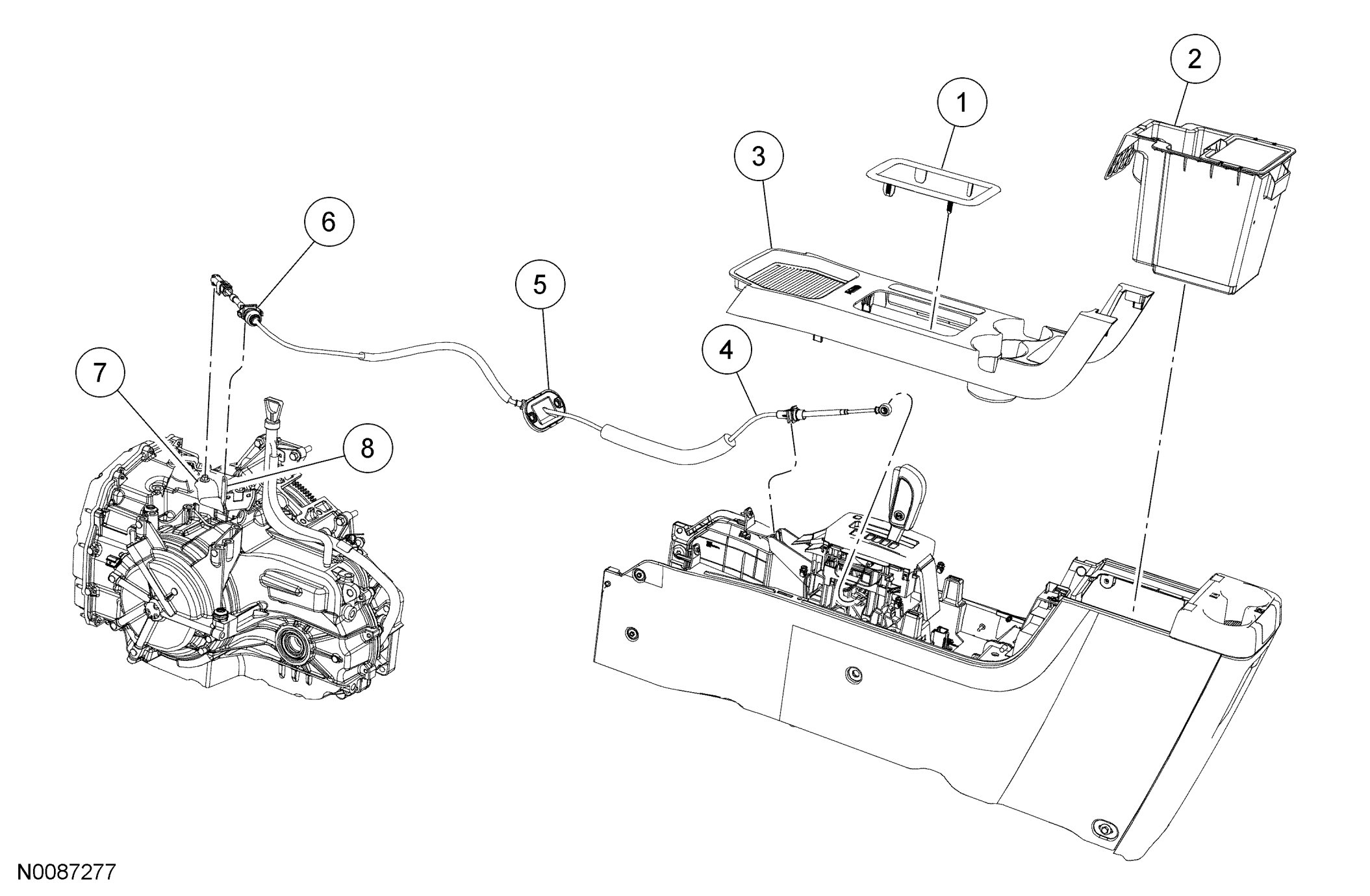

6. Remove the selector lever cable from the selector lever assembly.
a. Disconnect the selector lever cable end from the selector lever.

b. Remove the selector lever cable from the bracket.

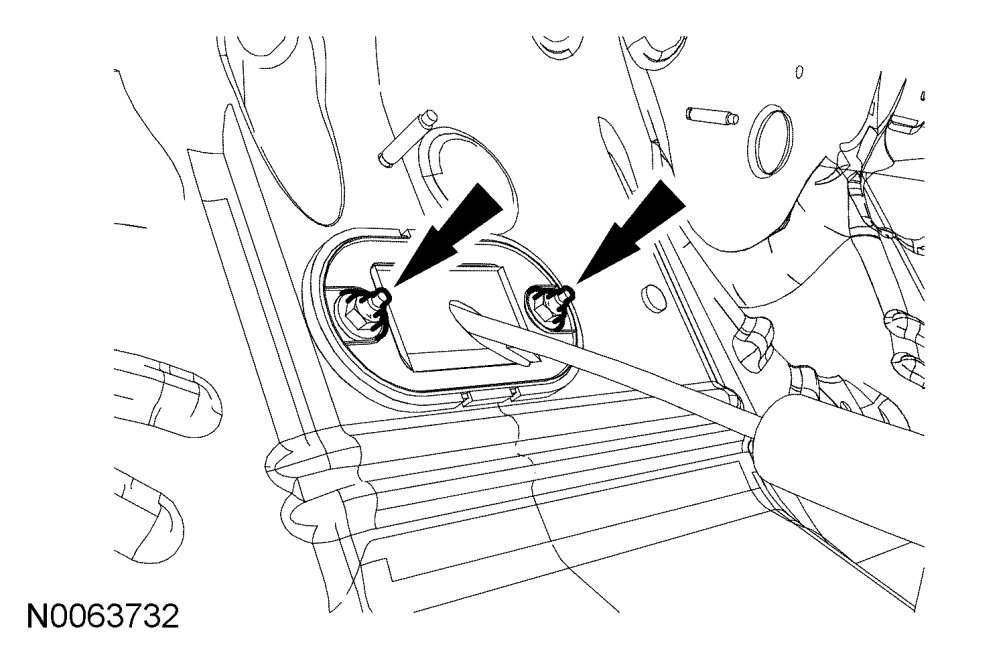

7. Remove the 2 grommet nuts for the selector lever cable.

- Tighten to 10 Nm {1.0 kgf-m, 89 in-lbf}.

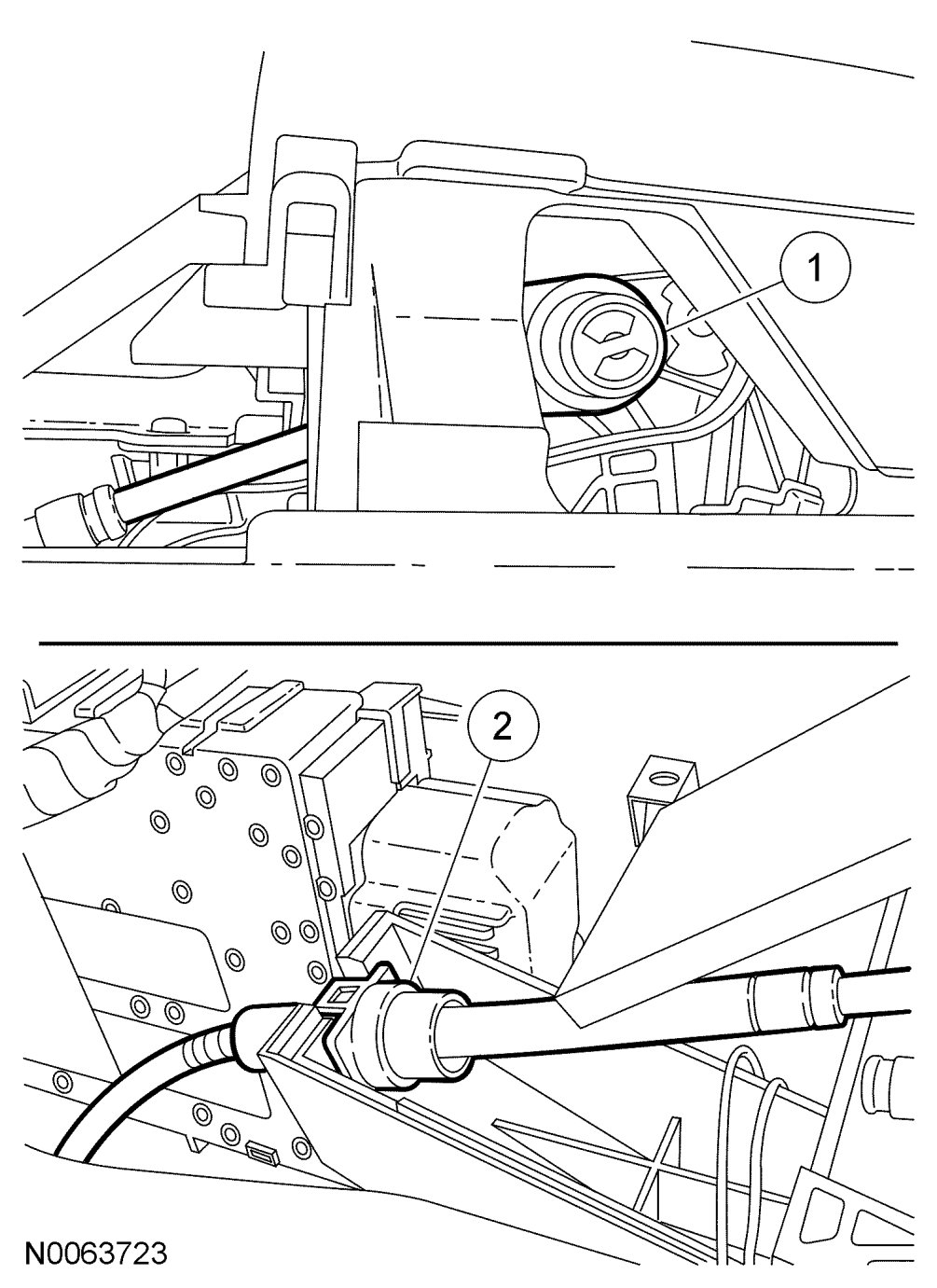

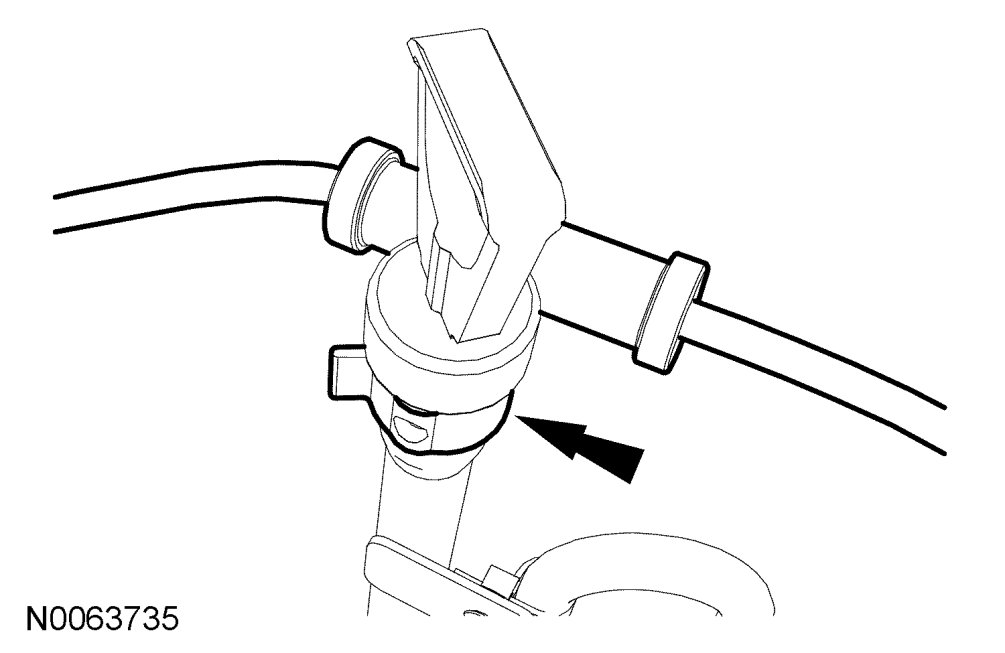

8. Remove the selector lever cable retainer from the transaxle fluid filler tube.

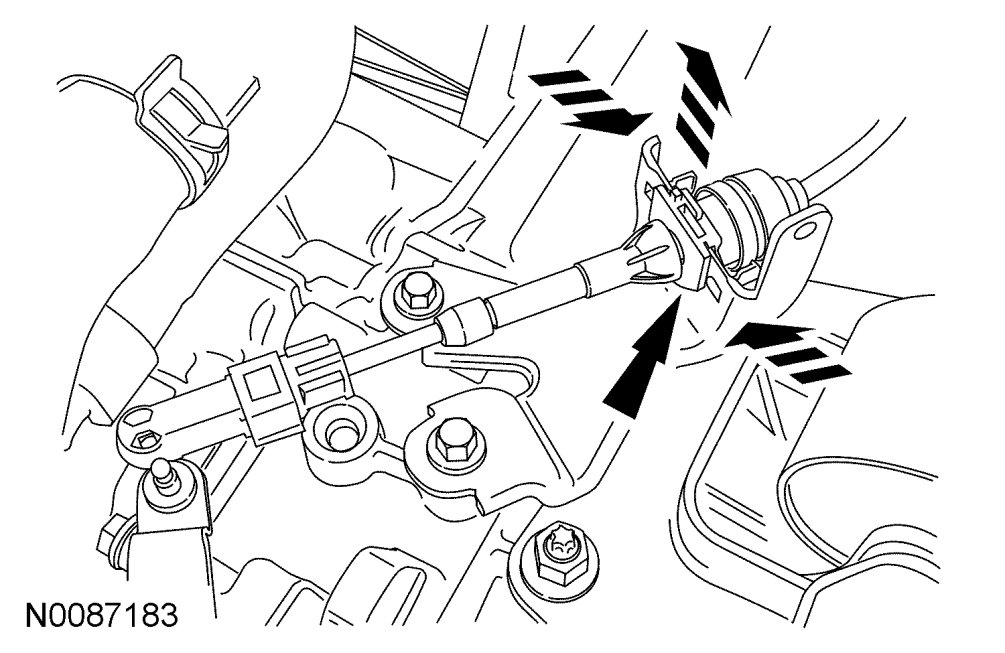

9. Disconnect the selector lever cable end from the manual control lever.






10. Release the 2 tabs and remove the selector lever cable from the selector lever cable bracket.

11. To install, reverse the removal procedure.
1 Adjust the selector lever cable after the installation. See Adjustments.
