Transmission Mode Switch: Testing and Inspection

TRANSMISSION CONTROL SWITCH (TCS)/TRANSMISSION CONTROL INDICATOR LAMP (TCIL)

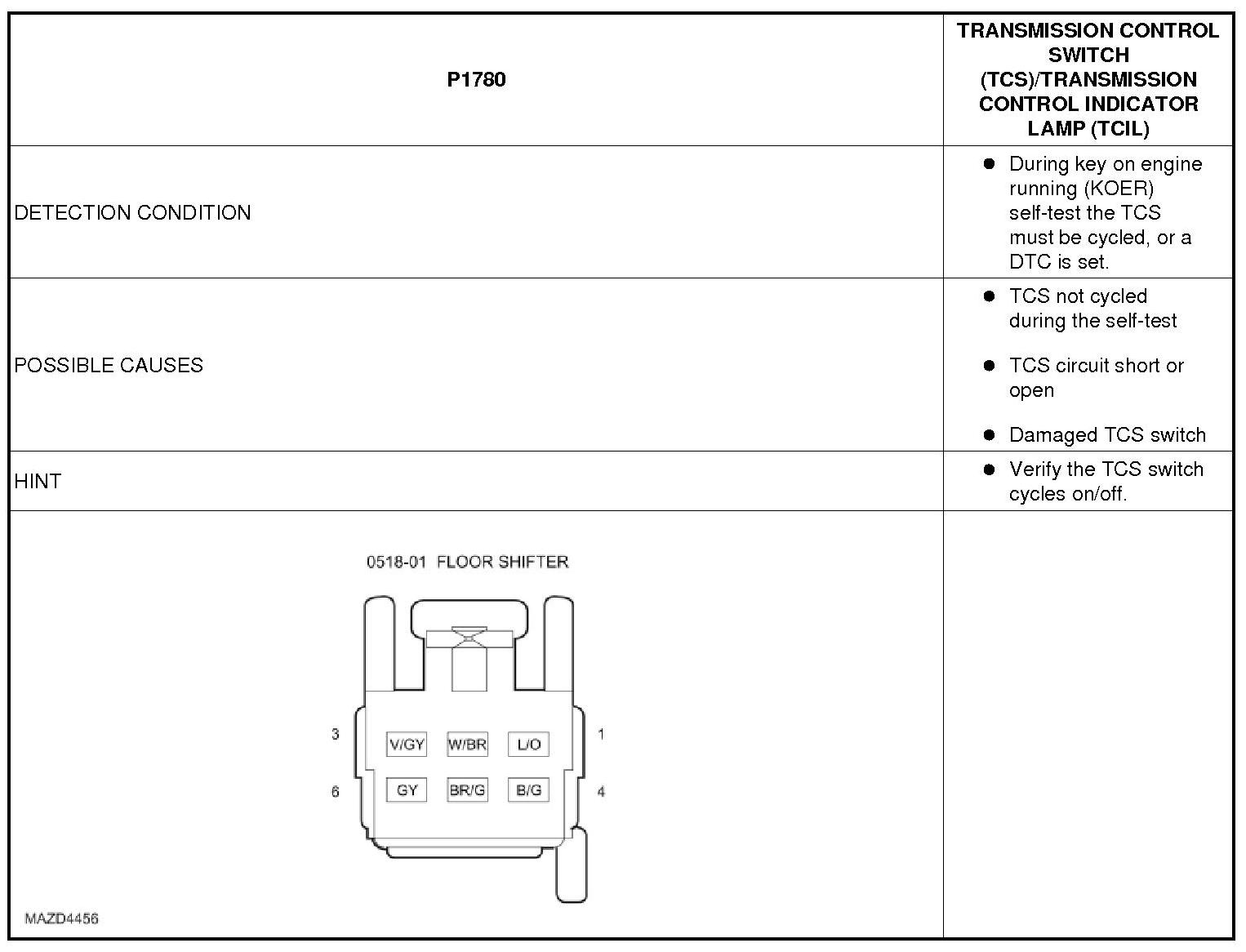

Detection Condition/Possible Causes:

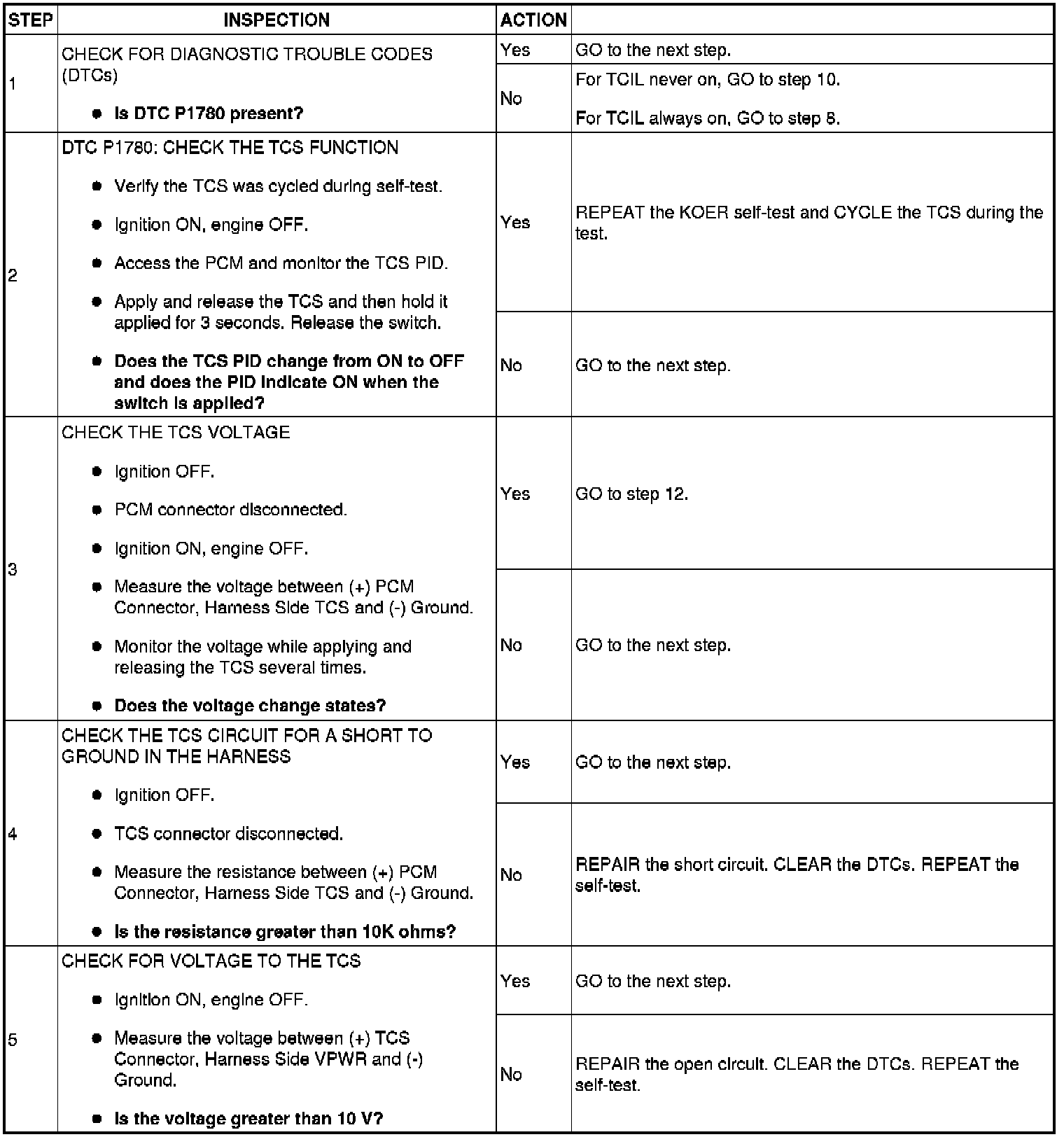

Step 1-Step 5:

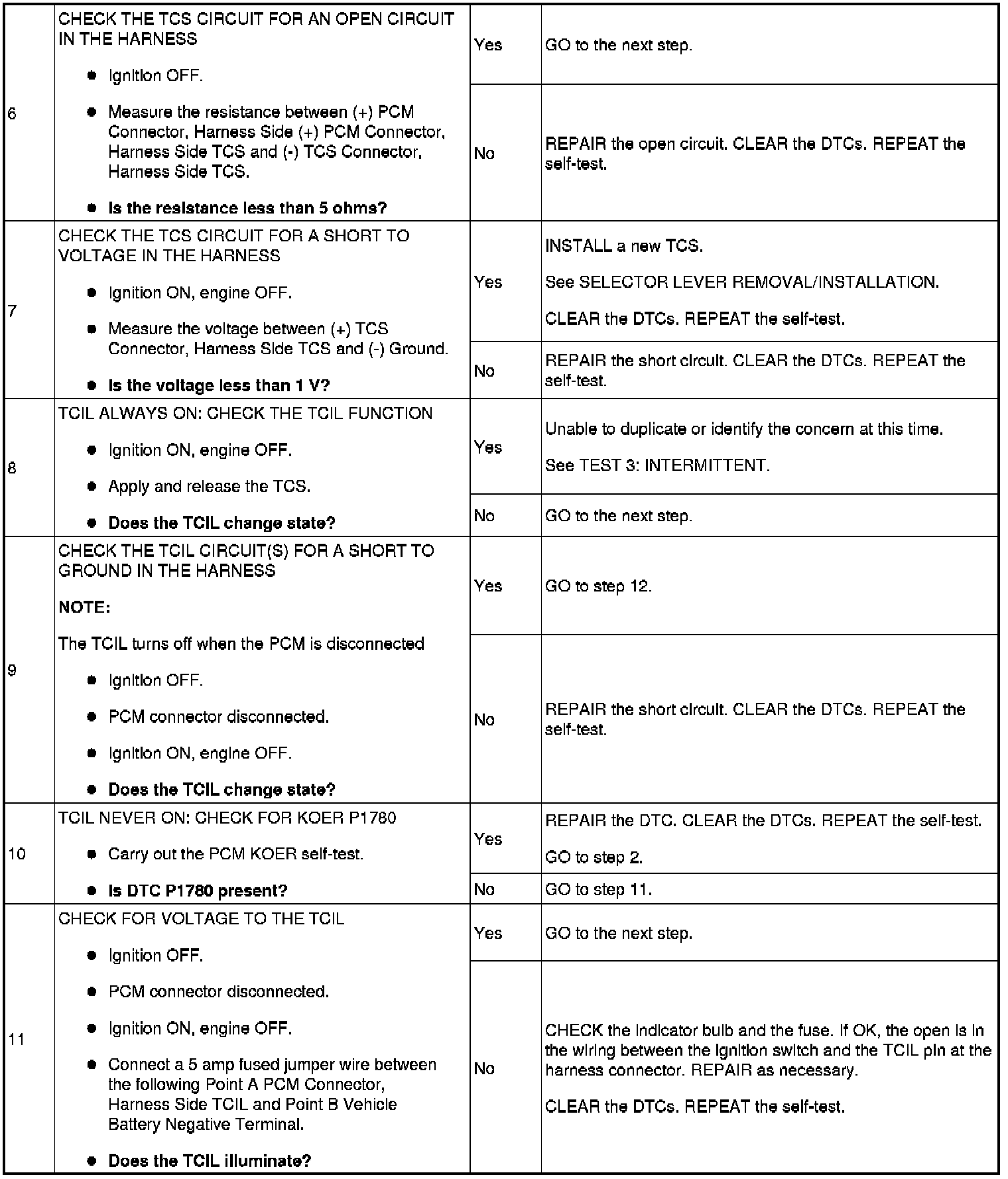

Step 6-Step 11:

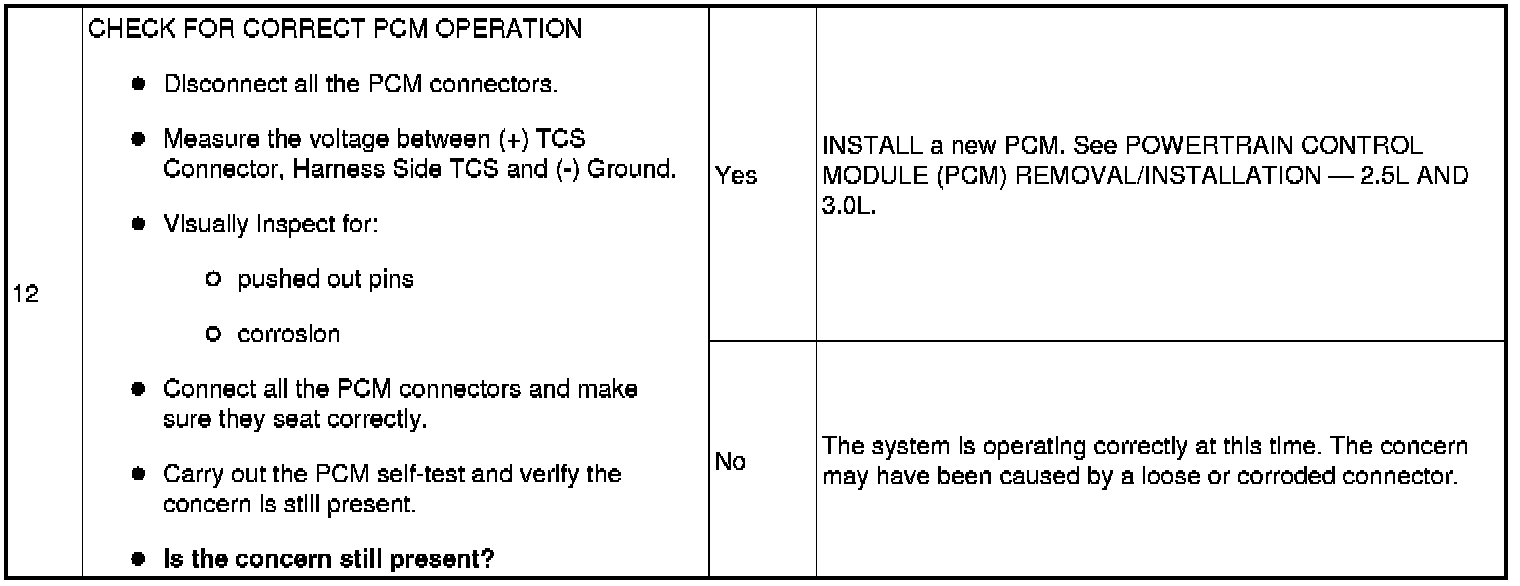

Step 12:
