Clutch Switch: Testing and Inspection

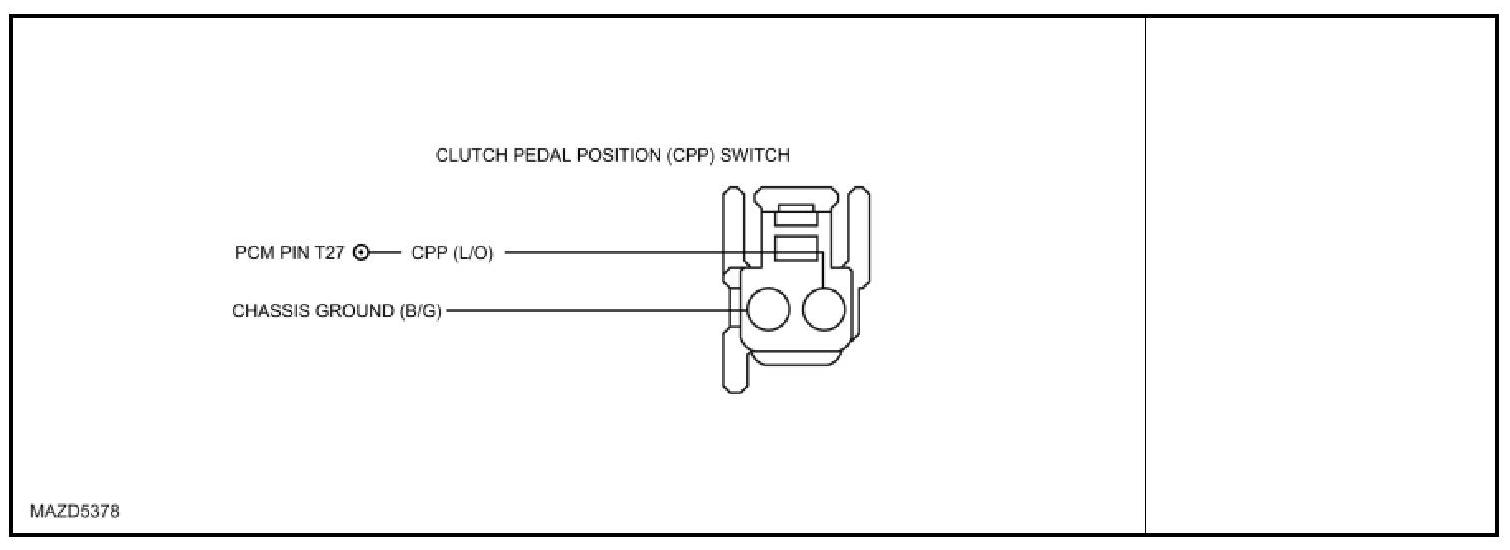

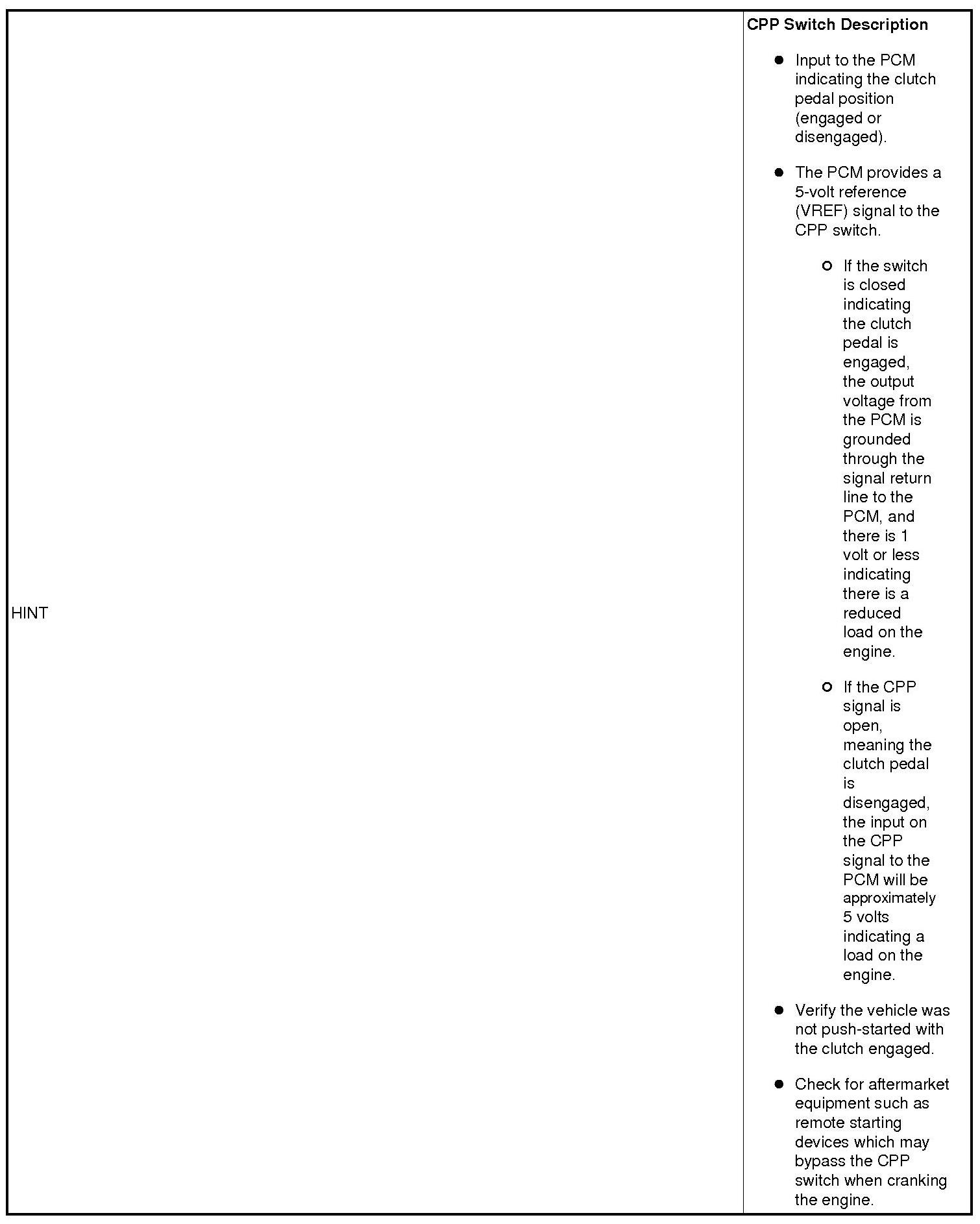

CLUTCH PEDAL POSITION (CPP) SWITCH MALFUNCTION

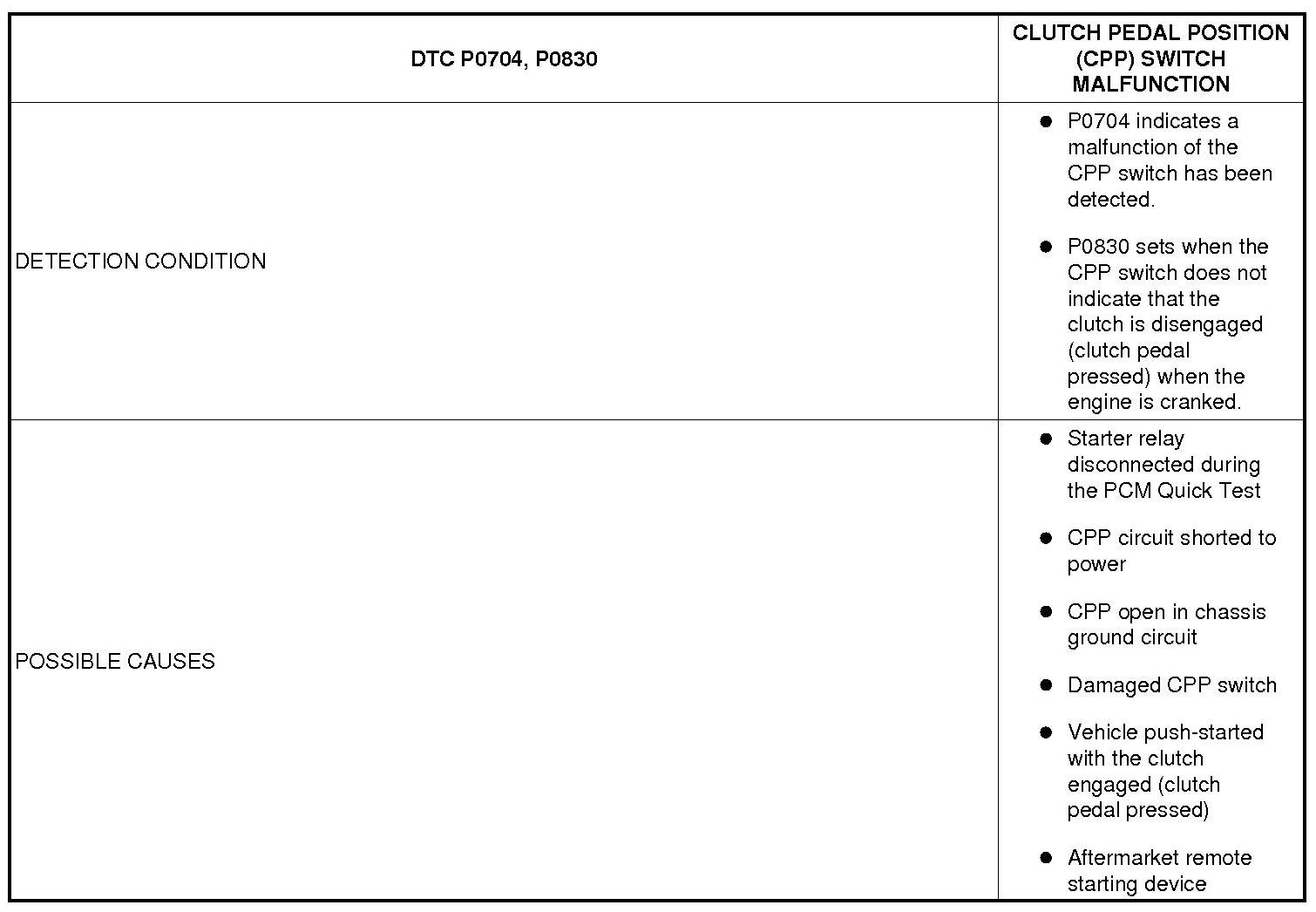

Detection Condition/Possible Causes:

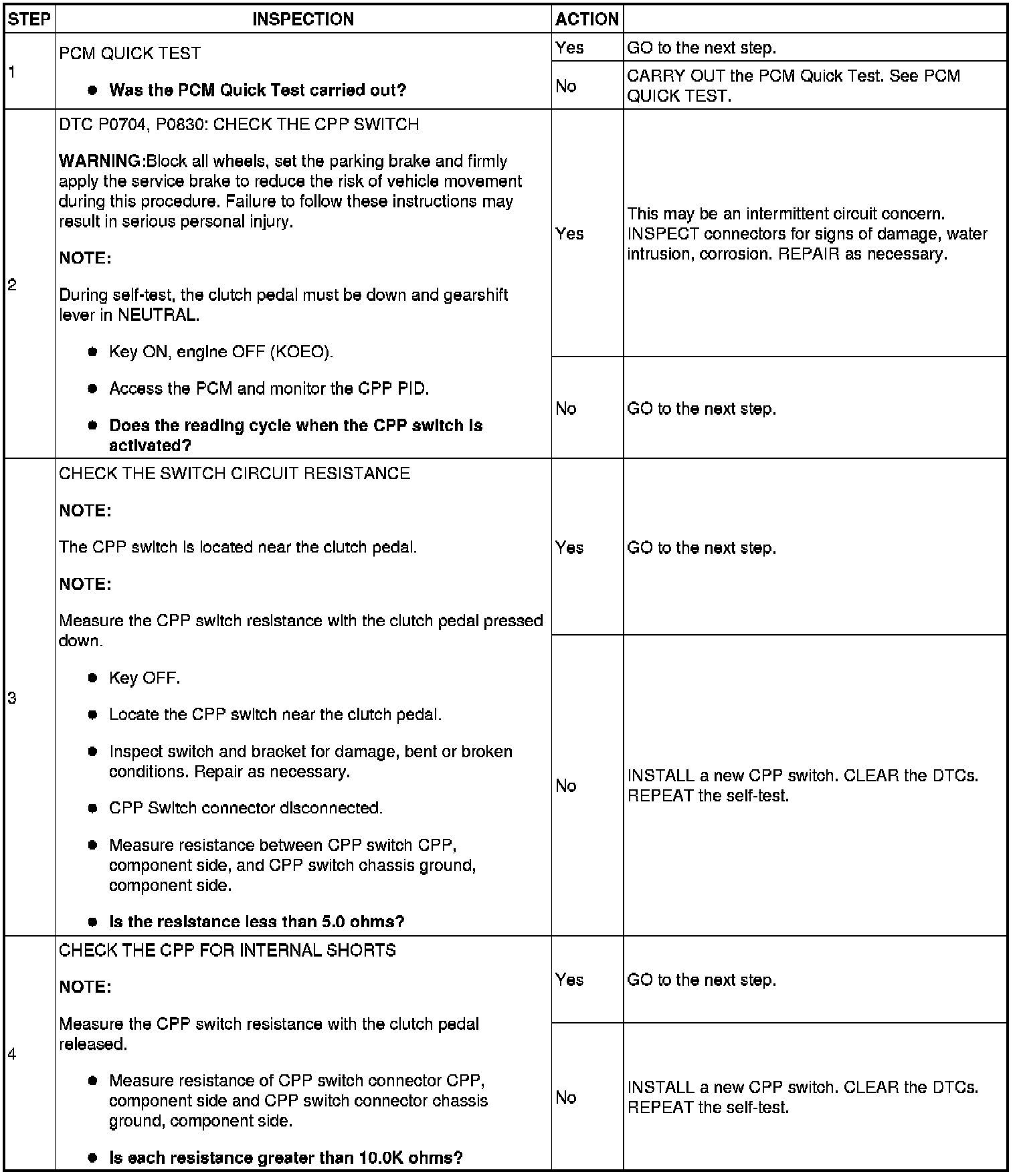

Step 1-Step 4:

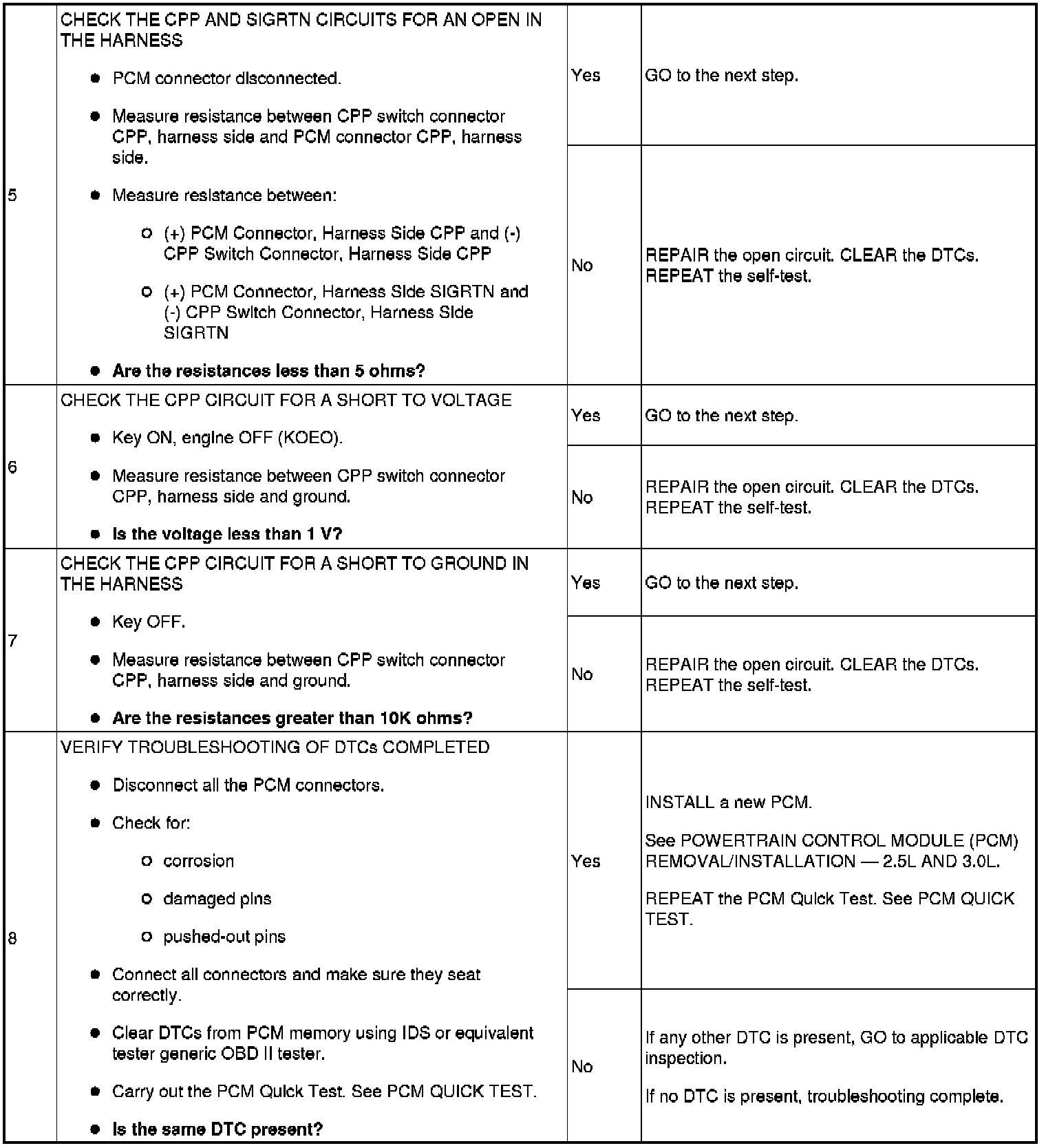

Step 5-Step 8:
