Diagram 0140-9f

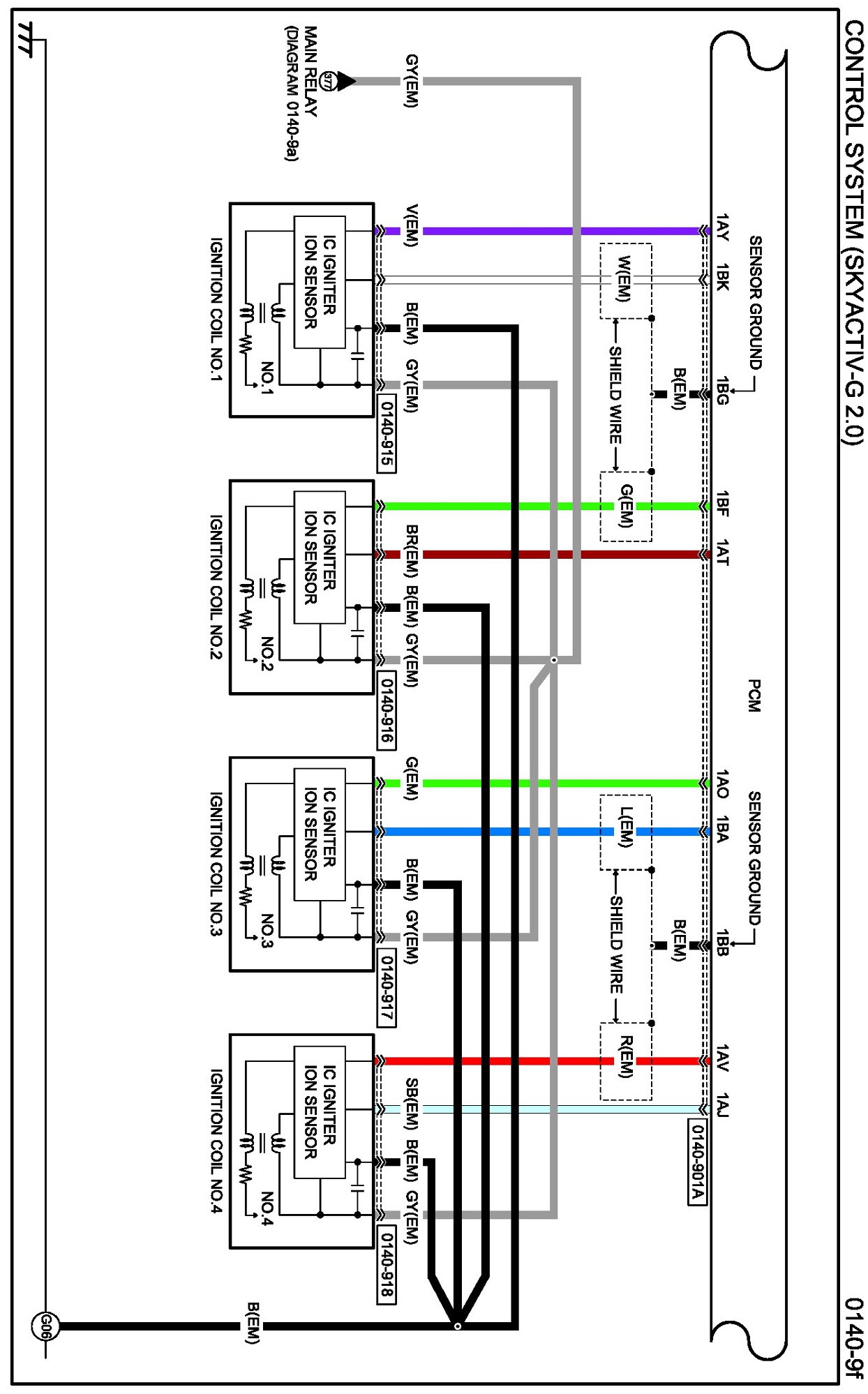

Diagram 0140-9f:

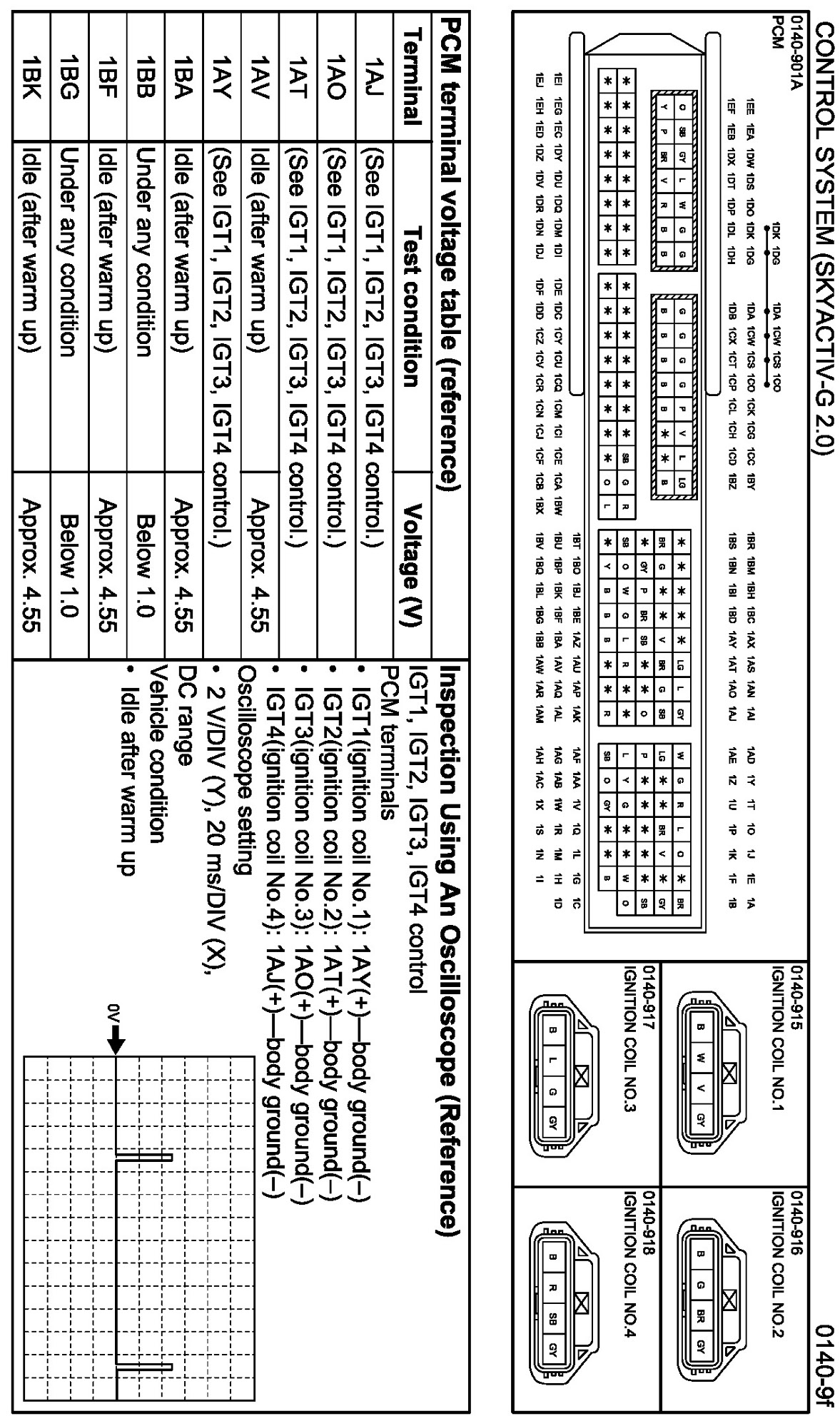

Connectors 0140-9f:

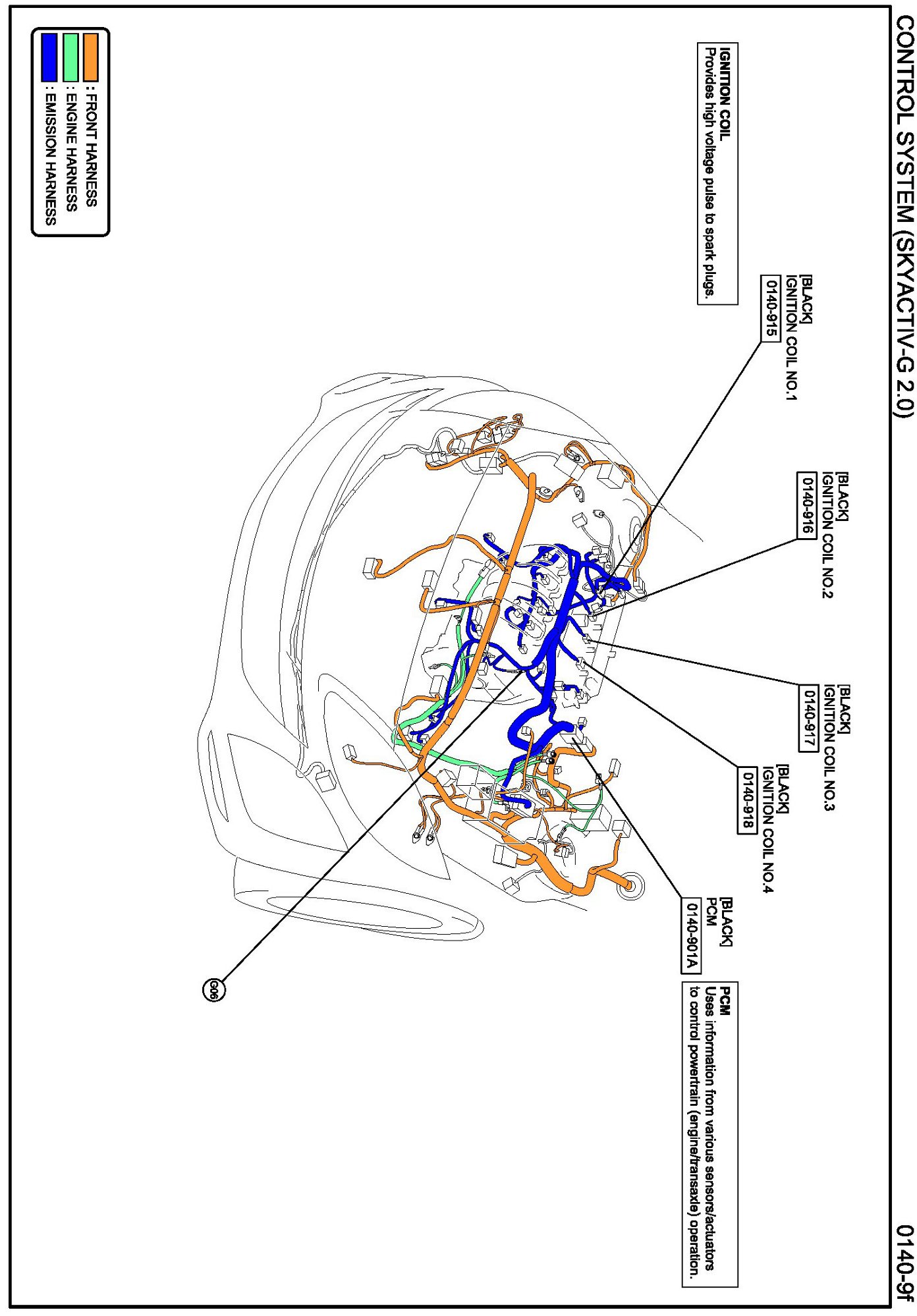

Routing View 0140-9f:

Next Diagram Diagram 0140-9g

Previous Diagram Diagram 0140-9e


Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
