Clutch Fluid Inspection [C66M-R]
CLUTCH FLUID INSPECTION [C66M-R]NOTE: -
A common reserve tank is used for the clutch system and brake system.
1.

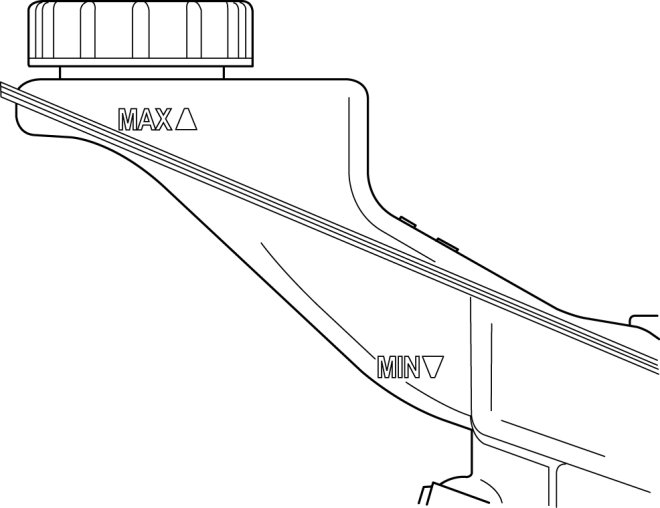

Verify that the
clutch fluid is between the MIN mark and the MAX mark.
-
Verify that there is no
clutch fluid leakage then add clutch fluid to the level between the MIN mark and the MAX mark.
Clutch Fluid Leakage Inspection [C66M-R]Clutch fluid -
SAE J1703 or FMVSS116 DOT-3
