Fluid - A/T: Service and Repair

AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT [FW6A-EL]

WARNING:
- Do not perform the servicing while the ATF is hot. Otherwise, it could cause severe burns or serious injury.

1. Remove aerodynamic undercover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

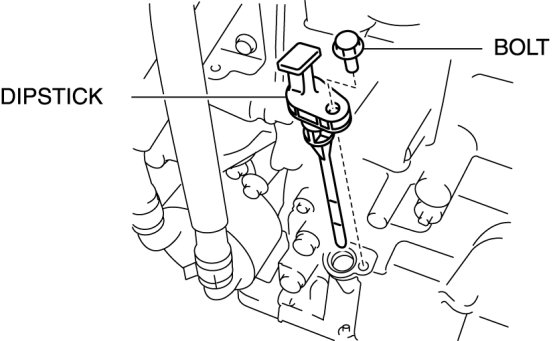

2. Remove the dipstick securing bolt.

3. Remove the dipstick.

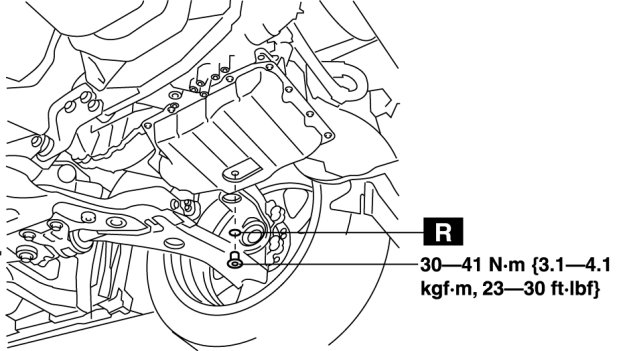

4. Remove the drain plug and washer, and drain the ATF.

5. Install a new washer and drain plug.

Tightening torque
- 30-41 Nm {3.1-4.1 kgf-m, 23-30 ft-lbf}

6. Add ATF from the dipstick installation hole.
NOTE:
- The ATF color is blue.
- Only use genuine ATF FZ for the FW6A-EL.





ATF type
- Genuine ATF FZ

Resupply amount (Reference)
- ATF is drained from drain plug: 3.5-4.9 L {3.7-5.1 US qt, 3.1-4.3 Imp qt}

7. Adjust the ATF level. Adjustments

8. Insert the dipstick and install the securing bolt.

Tightening torque
- 8-11 Nm {82-112 kgf-cm, 71-97 in-lbf}

9. Install aerodynamic undercover No.2. Aerodynamic Under Cover No. 2 Removal/Installation
