Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection





INTAKE AIR TEMPERATURE (IAT) SENSOR INSPECTION [SKYACTIV-G 2.0]

IAT Sensor No.1

Resistance inspection

NOTE:
- Because the IAT sensor No.1 is integrated in the MAF sensor, replacing the IAT sensor No.1 includes replacement of the MAF sensor/IAT sensor No.1.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the MAF sensor/IAT sensor No.1 connector.

4. Measure the resistance between MAF sensor/IAT sensor No.1 terminals A and B.






- If not as specified, replace the MAF sensor/IAT sensor No.1. Service and Repair

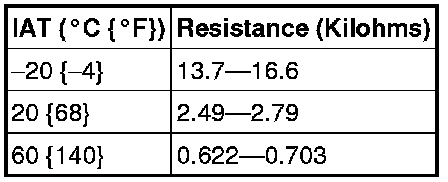

Specification





IAT Sensor No.2

Resistance inspection

NOTE:
- Because the IAT sensor No.2 is integrated in the MAP sensor, replacing the IAT sensor No.2 includes replacement of the MAP sensor/IAT sensor No.2.

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the MAP sensor/IAT sensor No.2 connector.

4. Remove the MAP sensor/IAT sensor No.2. Manifold Absolute Pressure (MAP) Sensor/Intake Air Temperature (IAT) Sensor No.2 Removal/Installation

5. Measure the resistance between MAP sensor/IAT sensor No.2 terminals A and B.






- If not as specified, replace the MAP sensor/IAT sensor No.2. Manifold Absolute Pressure (MAP) Sensor/Intake Air Temperature (IAT) Sensor No.2 Removal/Installation

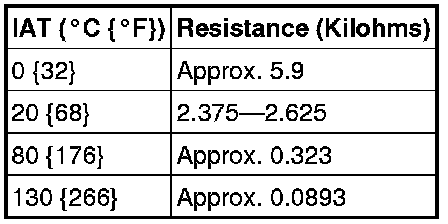

Specification
