Camshaft Gear/Sprocket

Tighten the electric variable valve timing motor/driver installation bolts.

Tightening torque 20-26 Nm {2.1-2.6 kgf-m, 15-19 ft-lbf}


Tighten the hydraulic variable valve timing actuator installation bolt.

Tightening torque 75-85 Nm {7.7-8.6 kgf-m, 56-62 ft-lbf}

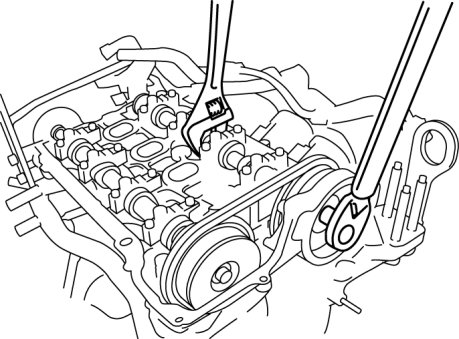

Hold the intake camshaft using a wrench on the cast hexagon, and tighten the electric variable valve timing actuator installation bolt.






Tightening torque 102-114 Nm {10.5-11.6 kgf-m, 76-84 ft-lbf}
