Cylinder Head Assembly

Cylinder Head

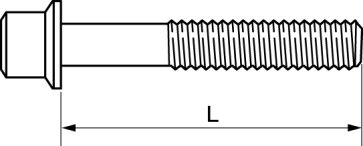

Cylinder head bolt length L 145.2-145.8 mm {5.717-5.740 in}
Cylinder head bolt length L maximum 146.5 mm {5.767 in}

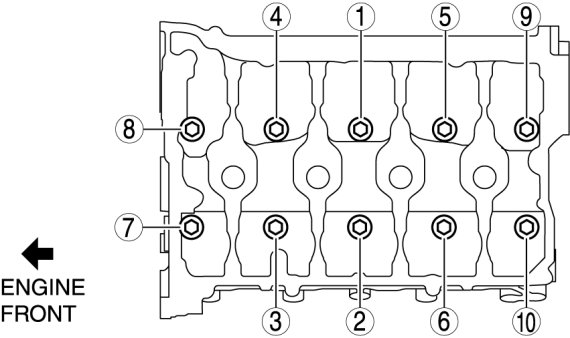

Tighten the cylinder head bolts in the order shown in the following 4 steps.






Tightening torque
Step 1 13-17 Nm {133-173 kgf-cm, 116-150 in-lbf}
Step 2 43-47 Nm {4.4-4.7 kgf-m, 32-34 ft-lbf}
Step 3 85-95°
Step 4 85-95°

Camshaft

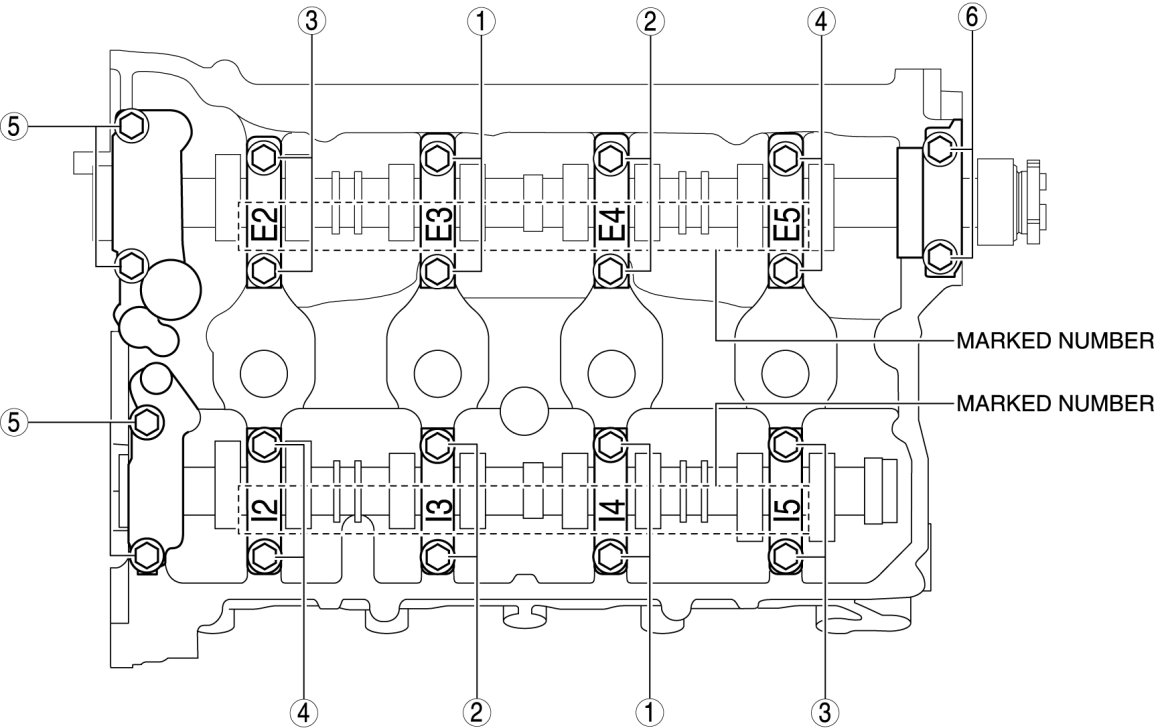

Install the camshaft caps in the marked number order, and temporarily tighten the camshaft cap installation bolts in two or three passes evenly.

Tighten the camshaft cap installation bolts in two steps in the order shown in the figure.






Tightening torque
First step 3.0-6.0 Nm {31-61 kgf-cm, 27-53 in-lbf}
Second step 8-11 Nm {82-112 kgf-cm, 71-97 in-lbf}
