Exhaust Manifold

Exhaust Manifold










Exhaust Manifold

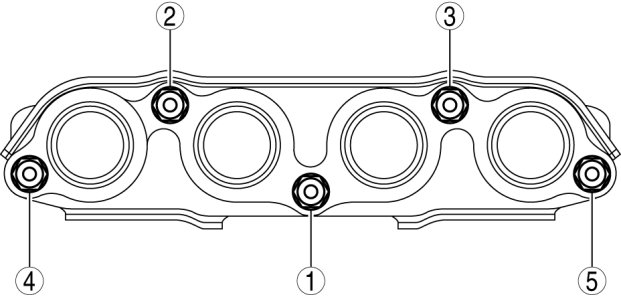

Temporarily tighten the exhaust manifold installation nuts (1) and (2) shown in the figure by hand.






Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure to 33-53 Nm {3.4-5.4 kgf-m, 25-39 ft-lbf}.

Temporarily tighten the exhaust manifold installation nuts (3) to (5) shown in the figure by hand.

Tighten the exhaust manifold installation nuts (3) to (5) shown in the figure.

Exhaust manifold installation nut tightening torque 43-64 Nm {4.4-6.5 kgf-m, 32-47 ft-lbf}

Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure.

Exhaust manifold installation nut tightening torque 43-64 Nm {4.4-6.5 kgf-m, 32-47 ft-lbf}
