Neutral Safety Switch: Service and Repair

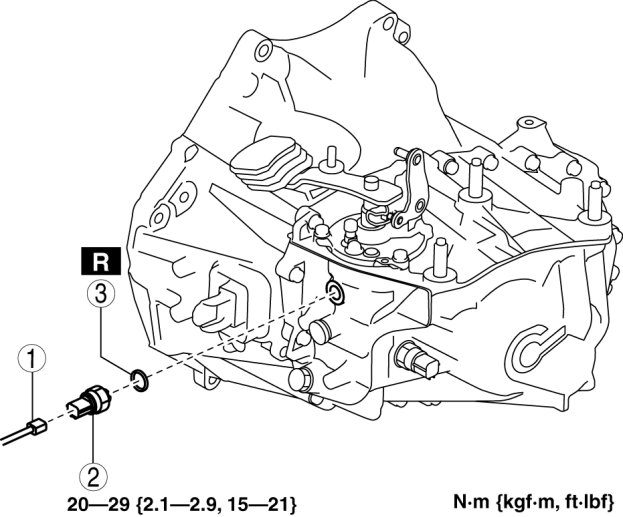

NEUTRAL SWITCH REMOVAL/INSTALLATION [C66M-R]

1. Remove the battery cover. Removal and Replacement

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

4. Install in the reverse order of removal.

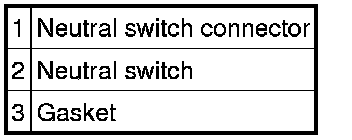

5. Remove in the order indicated in the table.

6. Install in the reverse order of removal.
