Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mazda
>>
2012
>>
CX-7 FWD L4-2.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>
P0506
P0506

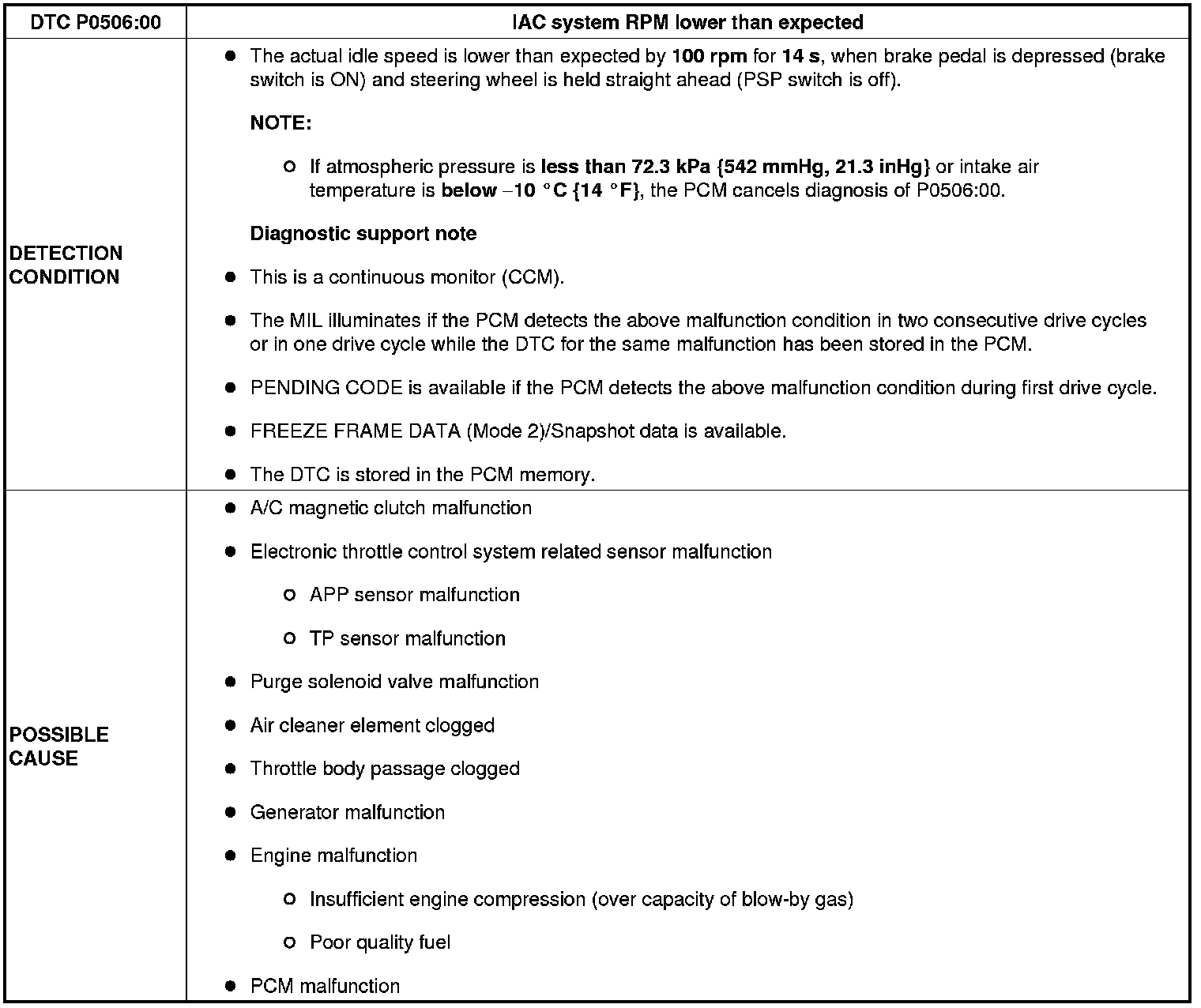

DTC P0506:00 [L5]
Diagnostic procedure
