Customized Function Setting Procedure

CUSTOMIZED FUNCTION SETTING PROCEDURE [ADVANCED KEYLESS ENTRY AND START SYSTEM]

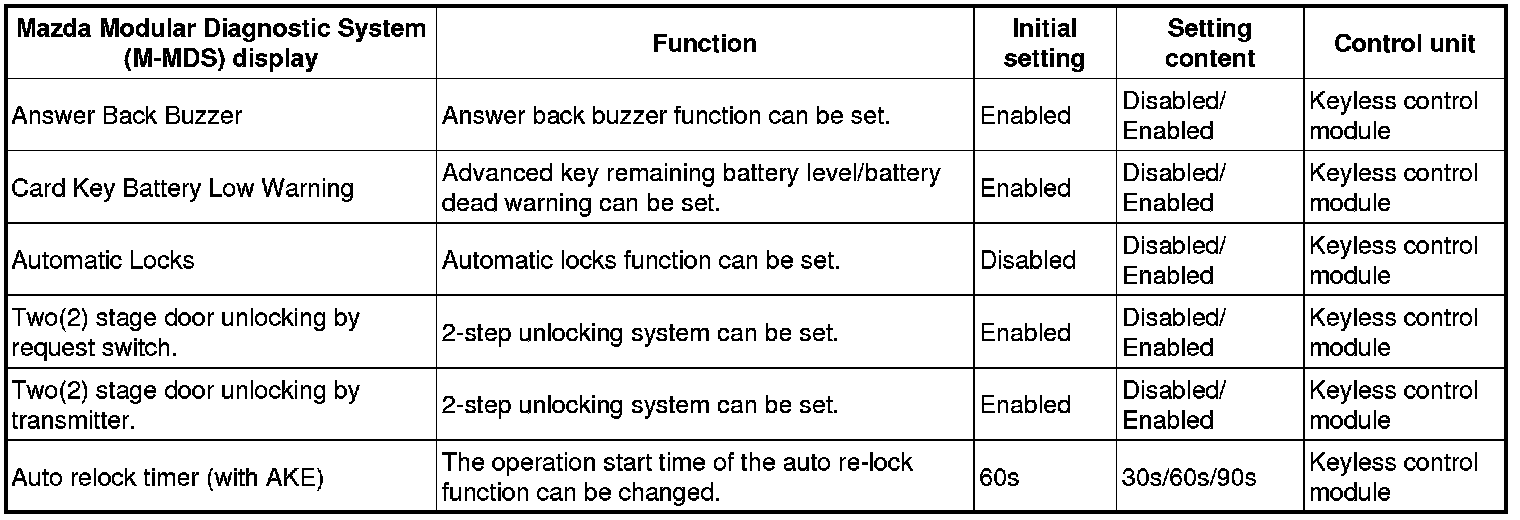

Advanced Keyless Entry And Start System

1. Connect the M-MDS (IDS) to the DLC-2.






2. After the vehicle is identified, select the following items from the initial screen of the M-MDS.

- When using the IDS (laptop PC)

- Select the "Module Programming"
- Select "Programmable Parameters"
- Select menu in the "RKE(Remote Keyless Entry)"

3. Select an item name, and then select option.

CAUTION:
- Do not change customized function which are not indicated in the appropriate service information.

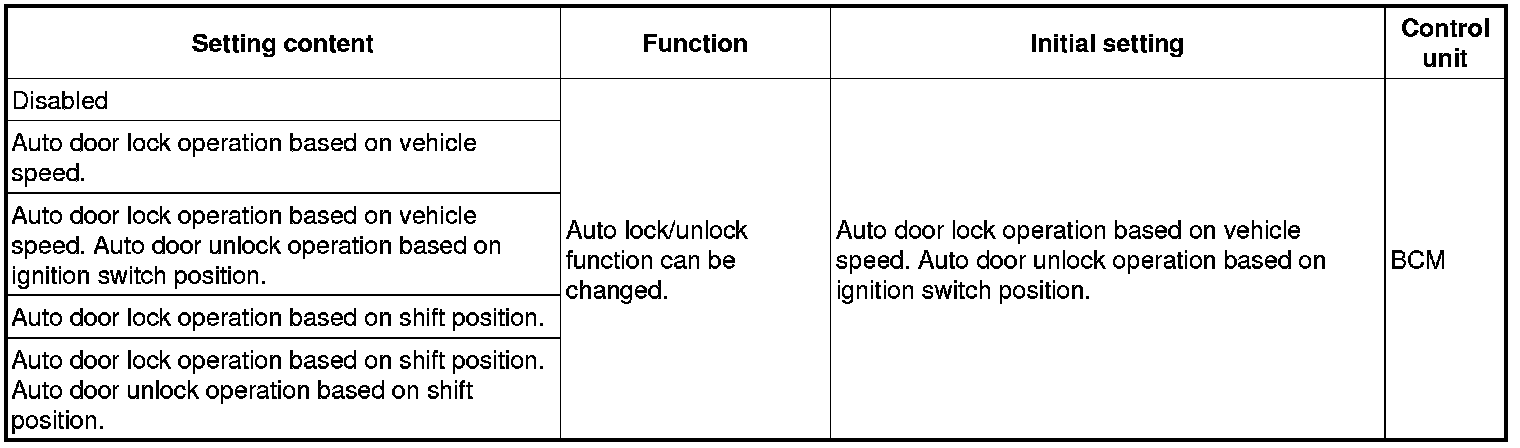

Auto Door Lock System





Setting procedure
