Cellular Phone: Service and Repair

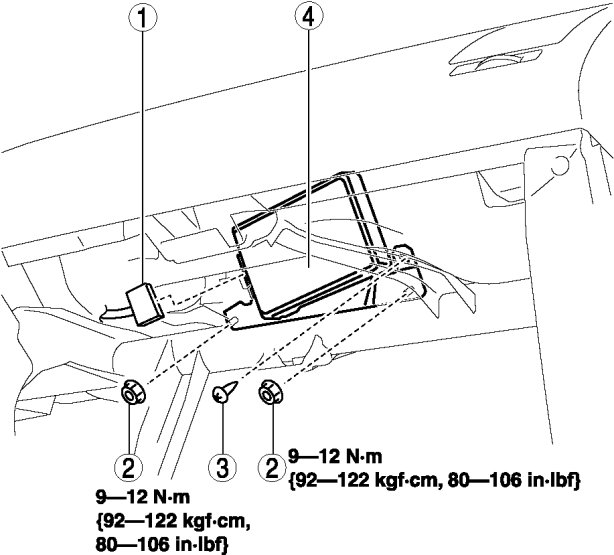

Bluetooth UNIT REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (Passenger side). Dashboard Under Cover Removal/Installation

3. Remove the glove compartment. Service and Repair

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
