Grille: Service and Repair

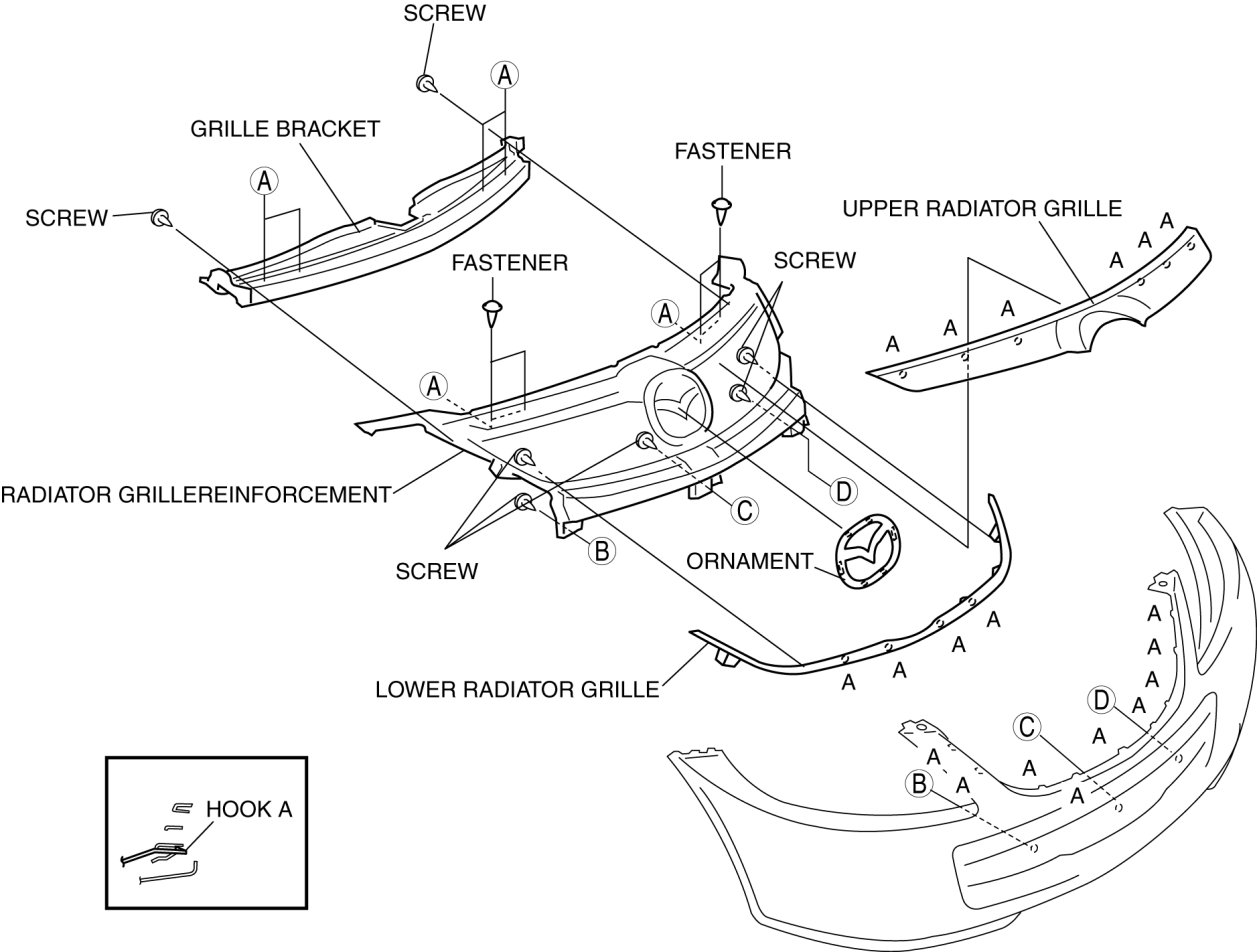

RADIATOR GRILLE REMOVAL/INSTALLATION

1. Set the front over fender out of the way.

2. Remove the front bumper. Removal and Replacement

3. Remove the screws and fasteners.






4. Remove the grille bracket.

5. Remove the screws.

6. Press hooks A, while pull the radiator grille reinforcement inward, and remove it from the front bumper.

7. Remove the hooks A, while remove the upper radiator grille.

8. Remove the screws.

9. Remove the hooks A, while remove the lower radiator grille.

10. Remove the ornament.

11. Install in the reverse order of removal.
