REARVIEW MIRROR INSTALLATION [VEHICLES WITH AUTO LIGHT/WIPER SYSTEM]

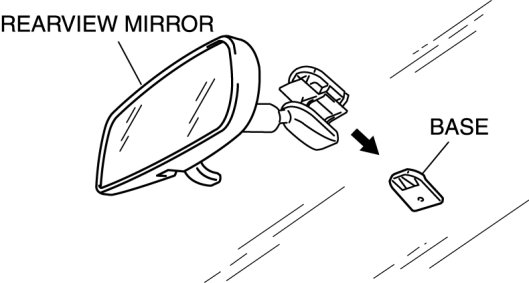

1.
Install the rearview mirror onto the base.
2.
Install the rain sensor.
Service and Repair

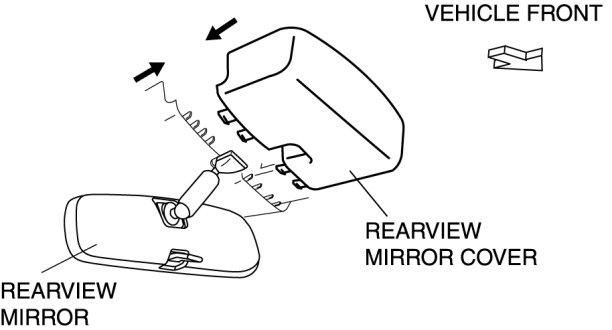

3.
Install the covers.
