Splash Guard: Service and Repair

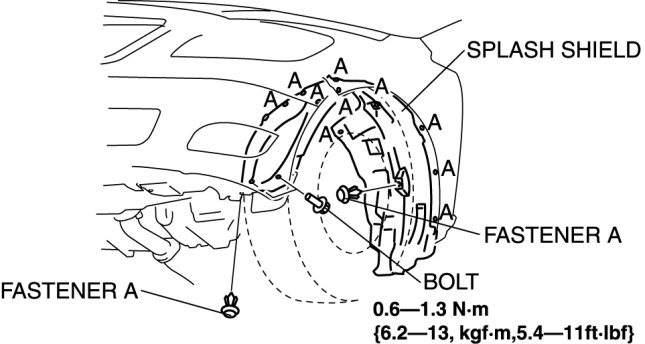

SPLASH SHIELD REMOVAL/INSTALLATION

1. Remove the front over fender.





2. Remove the bolts.

3. Remove the fasteners A.

4. Remove the splash shield.

5. Install in the reverse order of removal.
