Rear

REAR ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION [2WD]

1. Remove the trunk box.

2. Remove the seat side box. Seat Side Box Removal/Installation

3. Remove the third-row seat. Rear - Third-Row Seat Removal/Installation

4. Remove the rear scuff plate inner. Rear Scuff Plate Removal/Installation

5. Remove the third-row seat belt lower anchor installation bolt. Third-Row Seat Belt Removal/Installation

6. Remove the trunk side trim.

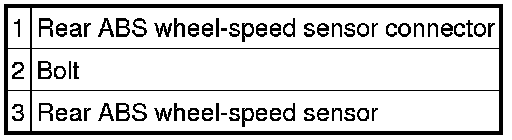

7. Remove in the order indicated in the table.

8. Install in the reverse order of removal.
