Mazda
>>
2012
>>
CX-9 FWD V6-3.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Components
>>

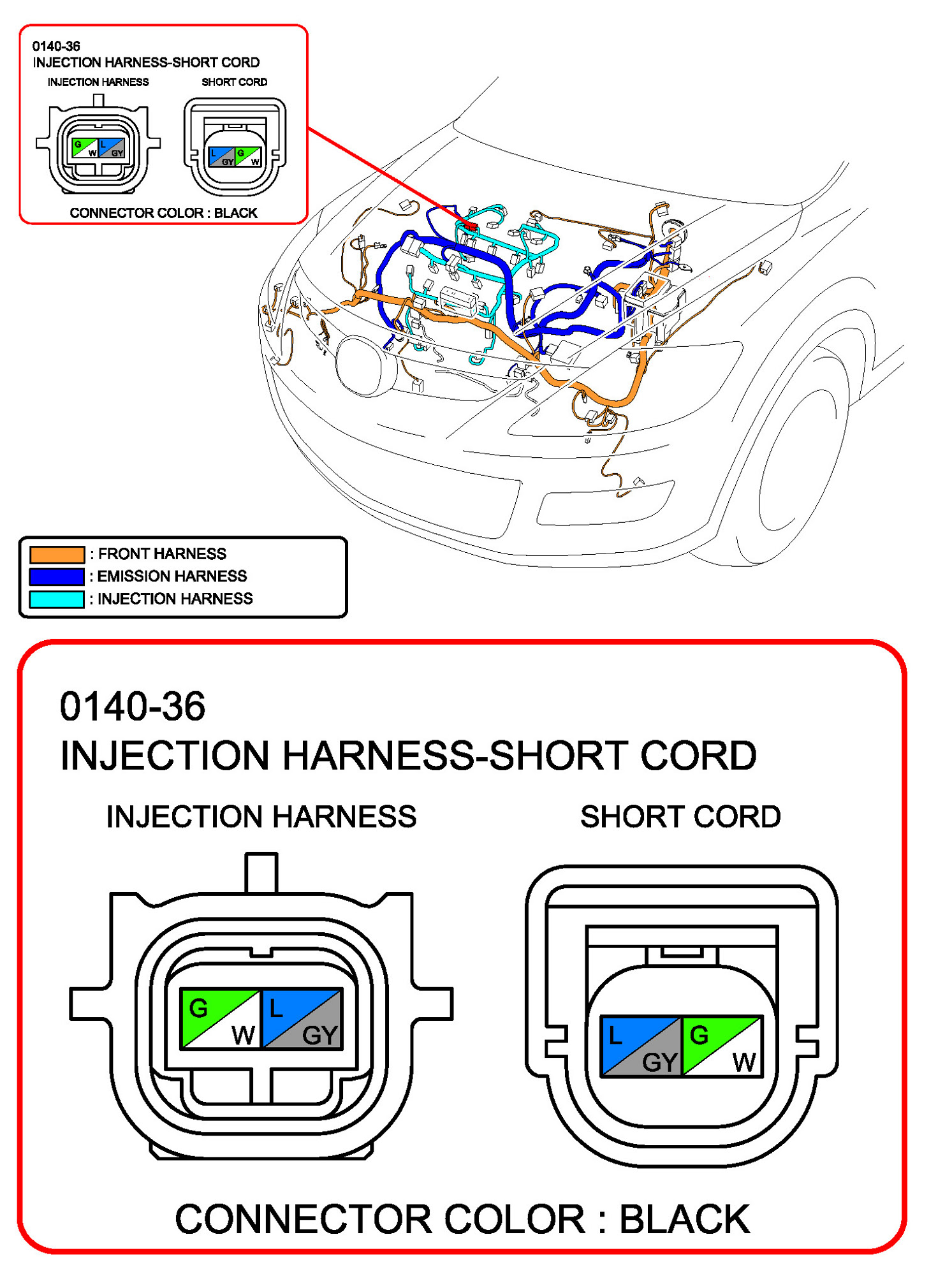

Injection Harness-Short Cord
Injection Harness-Short Cord
