Entertainment Systems

Diagram 0920-5a:

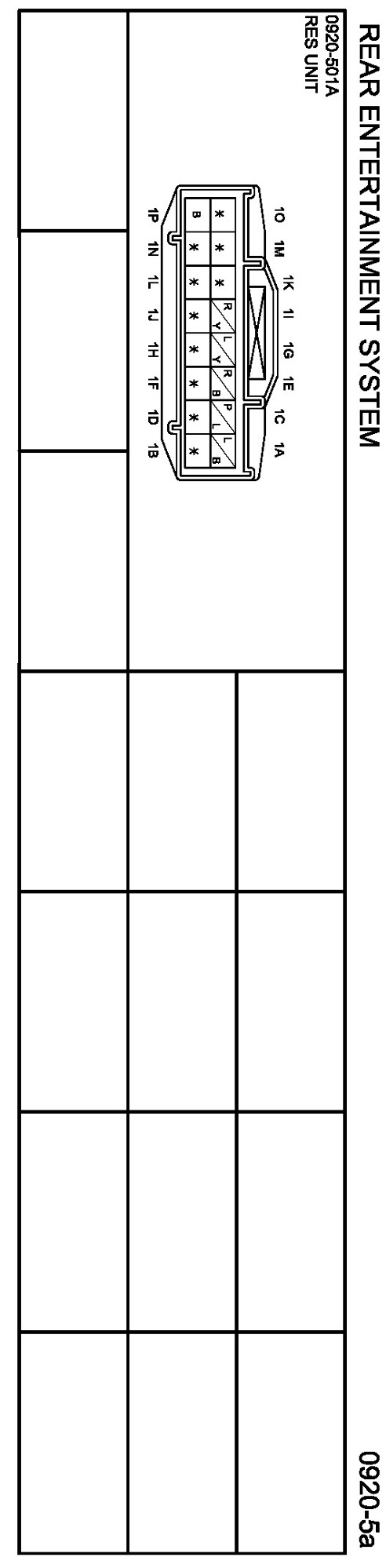

Connectors 0920-5a:

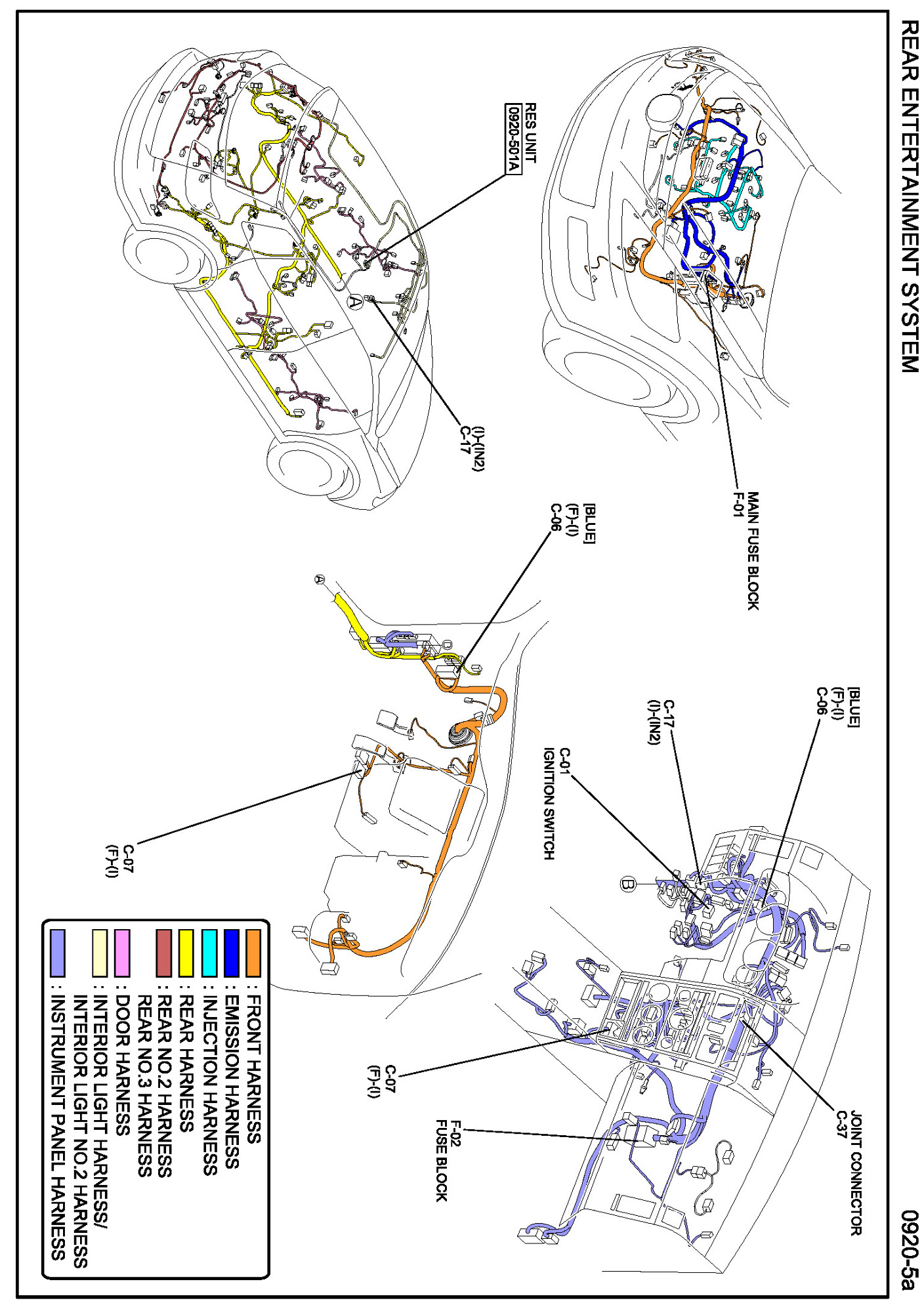

Routing View 0920-5a:

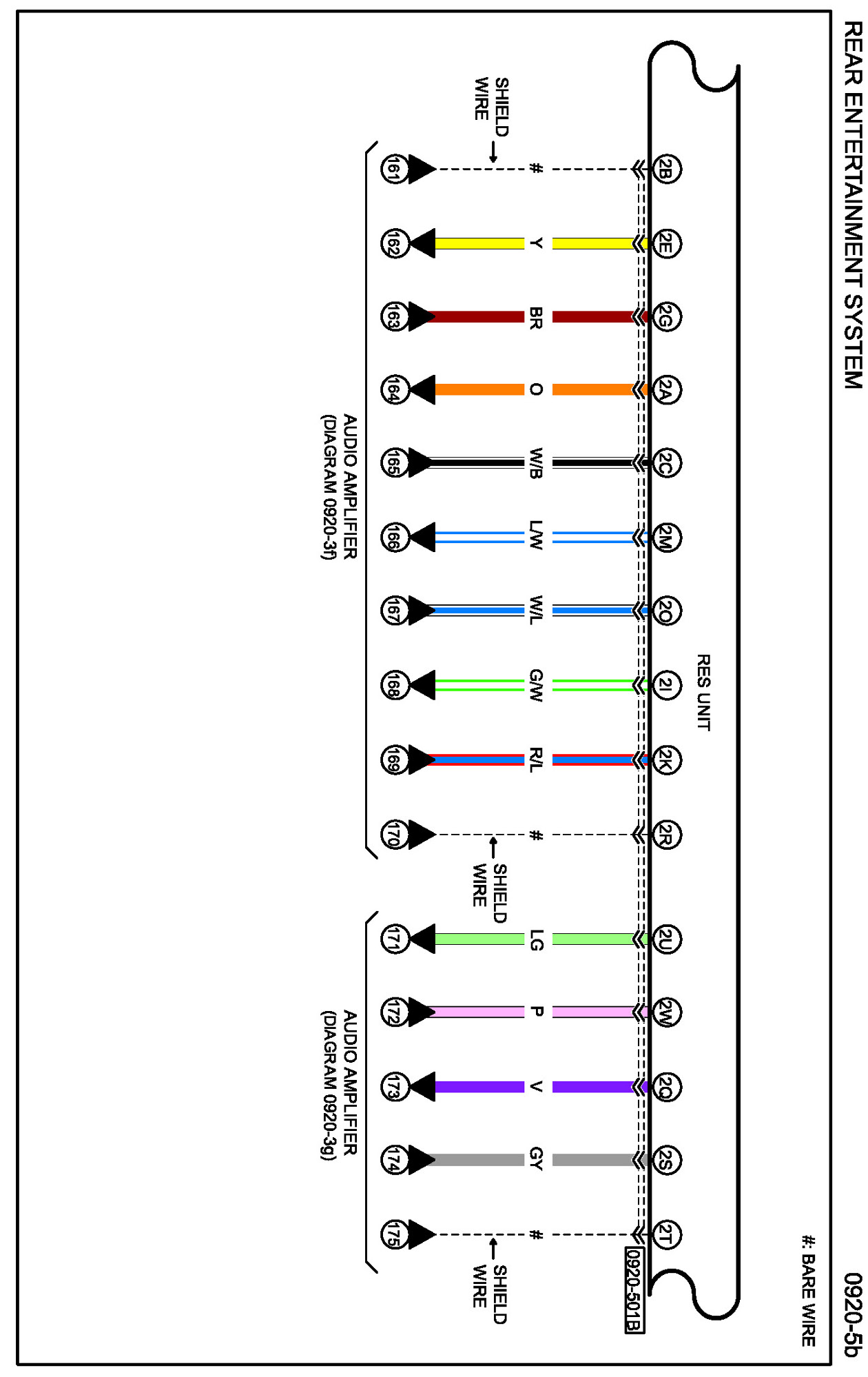

Diagram 0920-5b:

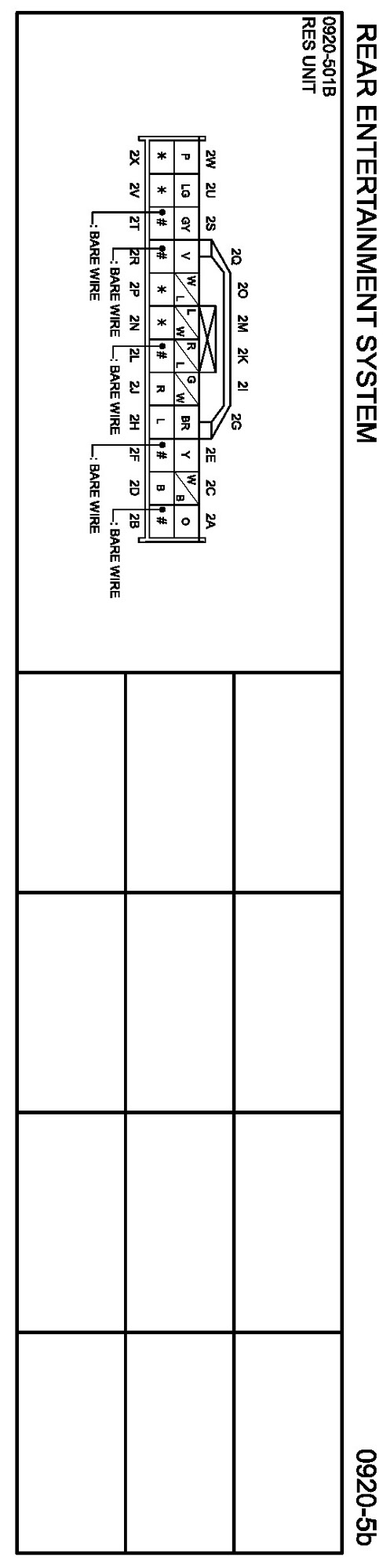

Connectors 0920-5b:

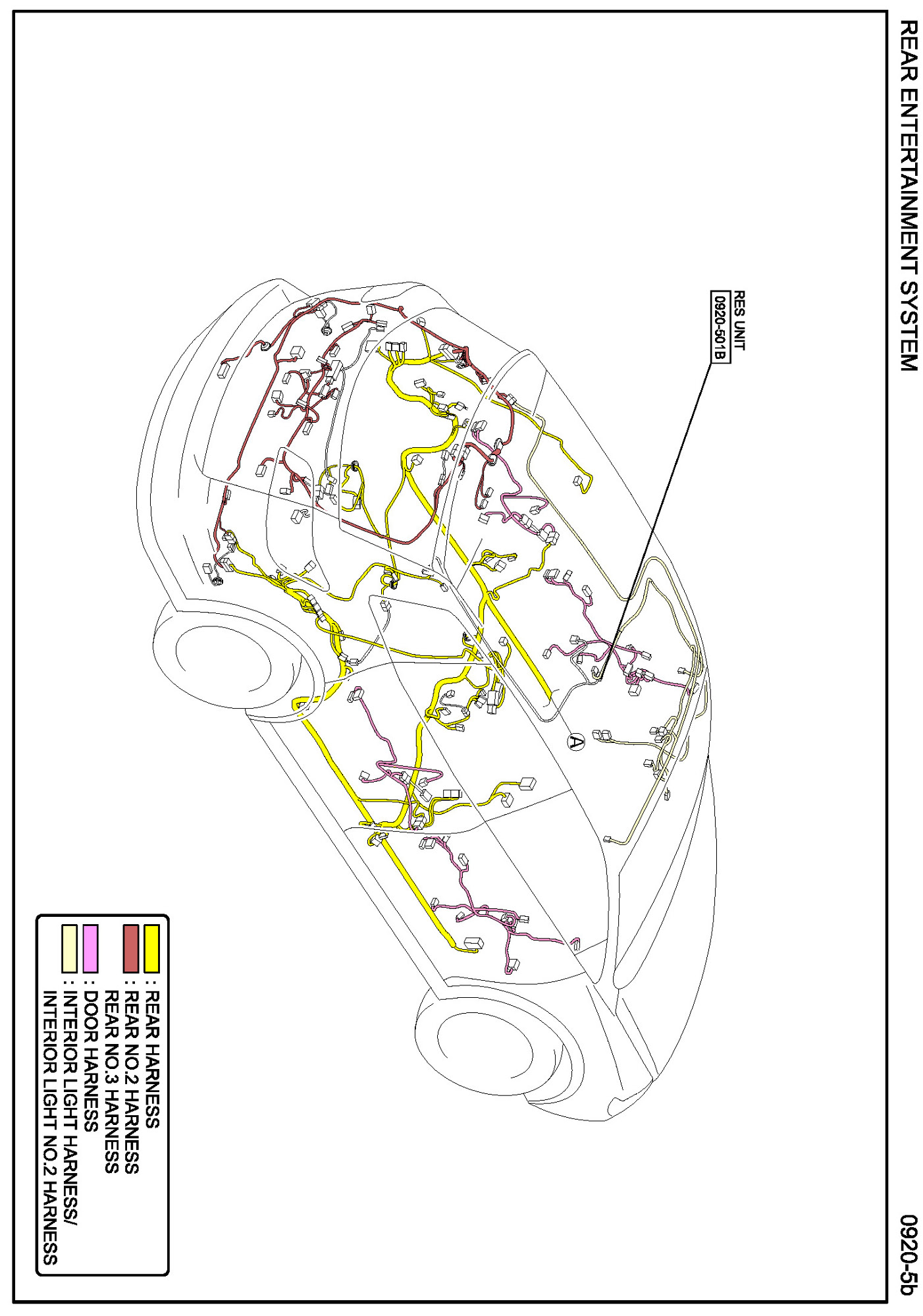

Routing View 0920-5b:

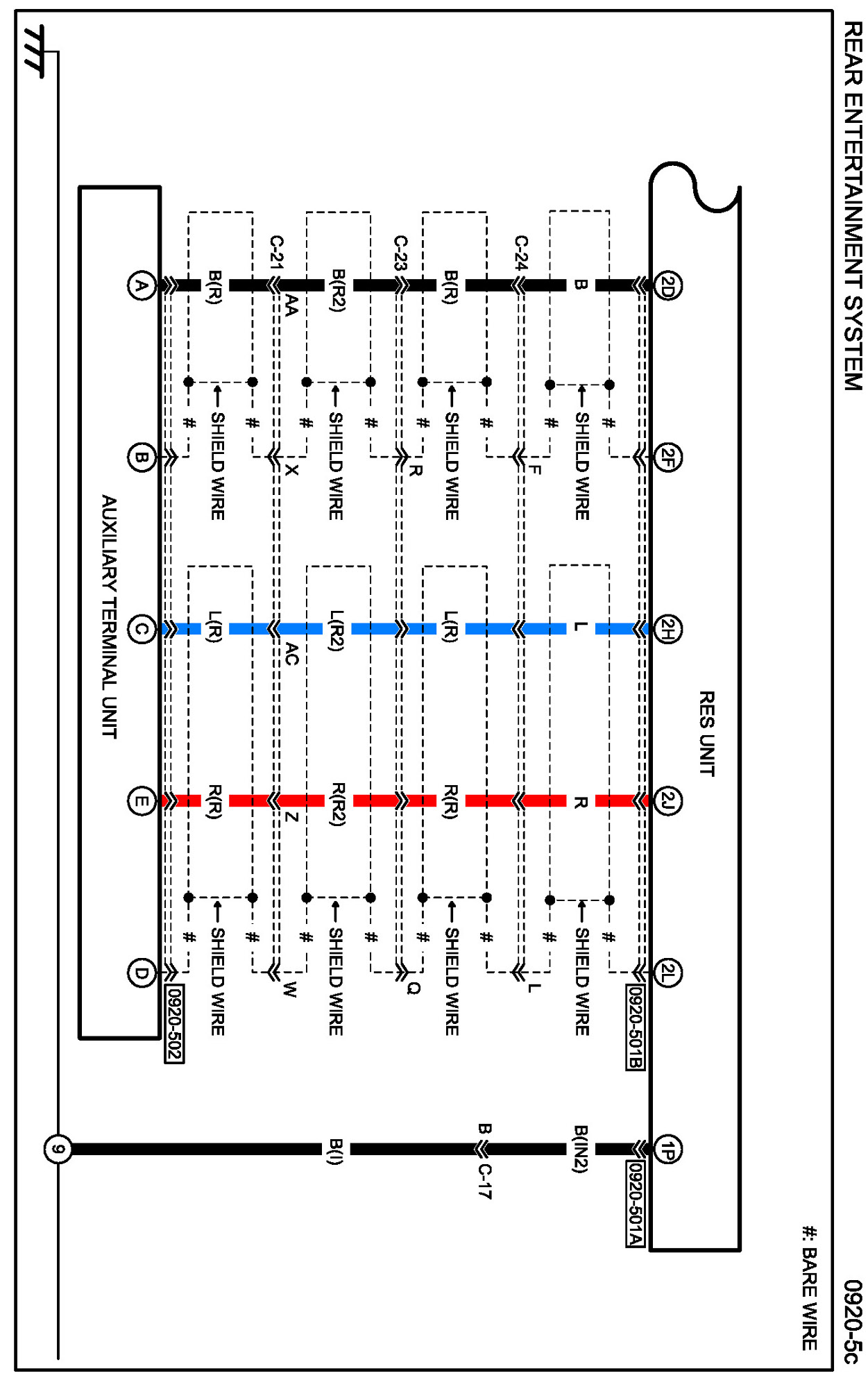

Diagram 0920-5c:

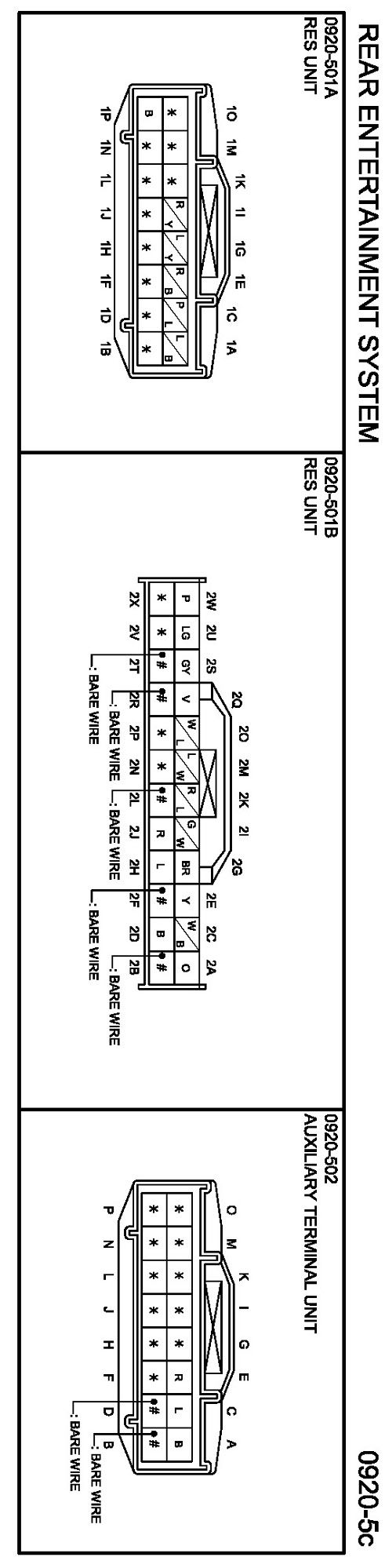

Connectors 0920-5c:

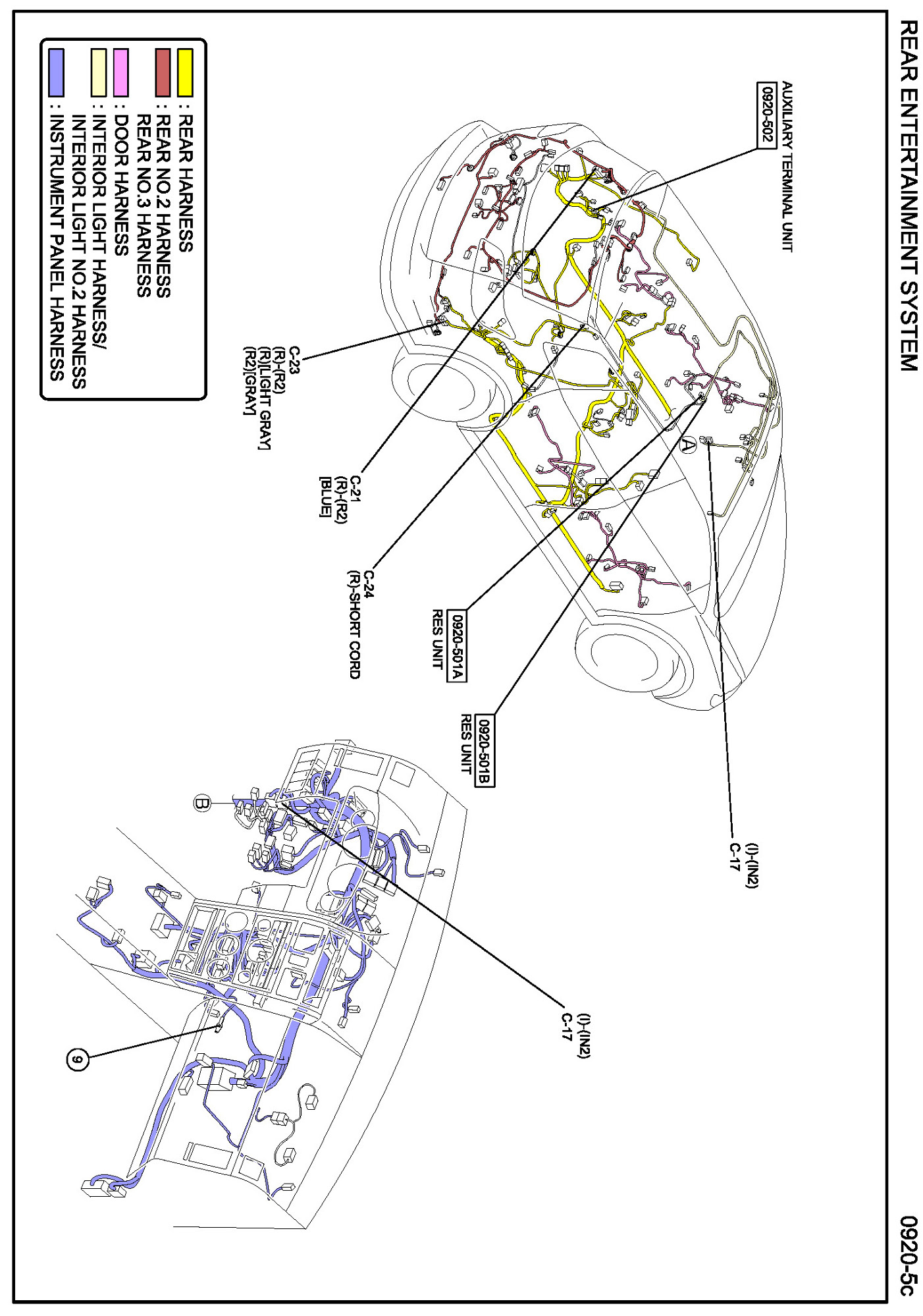

Routing View 0920-5c:

Diagrams: Other diagrams referred to by name within these diagrams can be found at Diagrams by Diagram Name. Diagrams By Diagram Name
