Front Blower Motor Removal/Installation

FRONT BLOWER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover. (passenger side) Dashboard Under Cover Removal/Installation

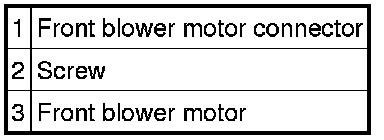

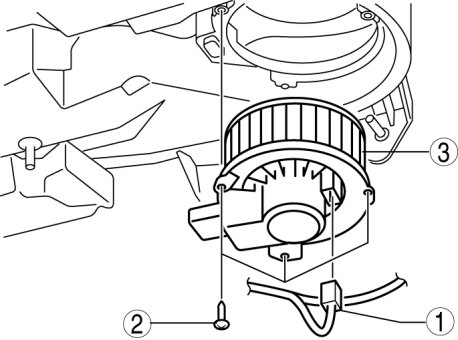

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
