Front Blower Motor Inspection

FRONT BLOWER MOTOR INSPECTION

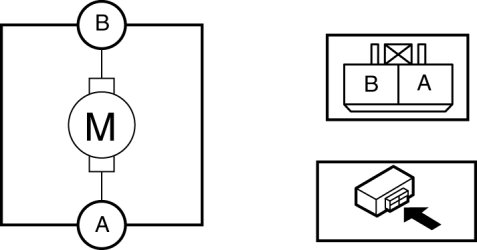

1. Connect battery positive voltage to front blower motor terminal B, connect terminal A to ground, and then verify its operation.






- If there is any malfunction, replace the front blower motor.
